This motherboard is about 94%-99% New,Supports for 4th Generation Core processors it does not come with the original packaging and driver CD.Its quality is almost the same as the brand new one!.One-year warranty.
GA-B85M-D3V Plus and GA-B85M-D3V Plus Si, Both versions are shipped randomly.
The quality of this motherboard is very good,in order to rush sales, so the price is very cheap, I will slowly increase the price to 66.99 US dollars. If you want to order it, please order as soon as possible! Don't miss the opportunity.

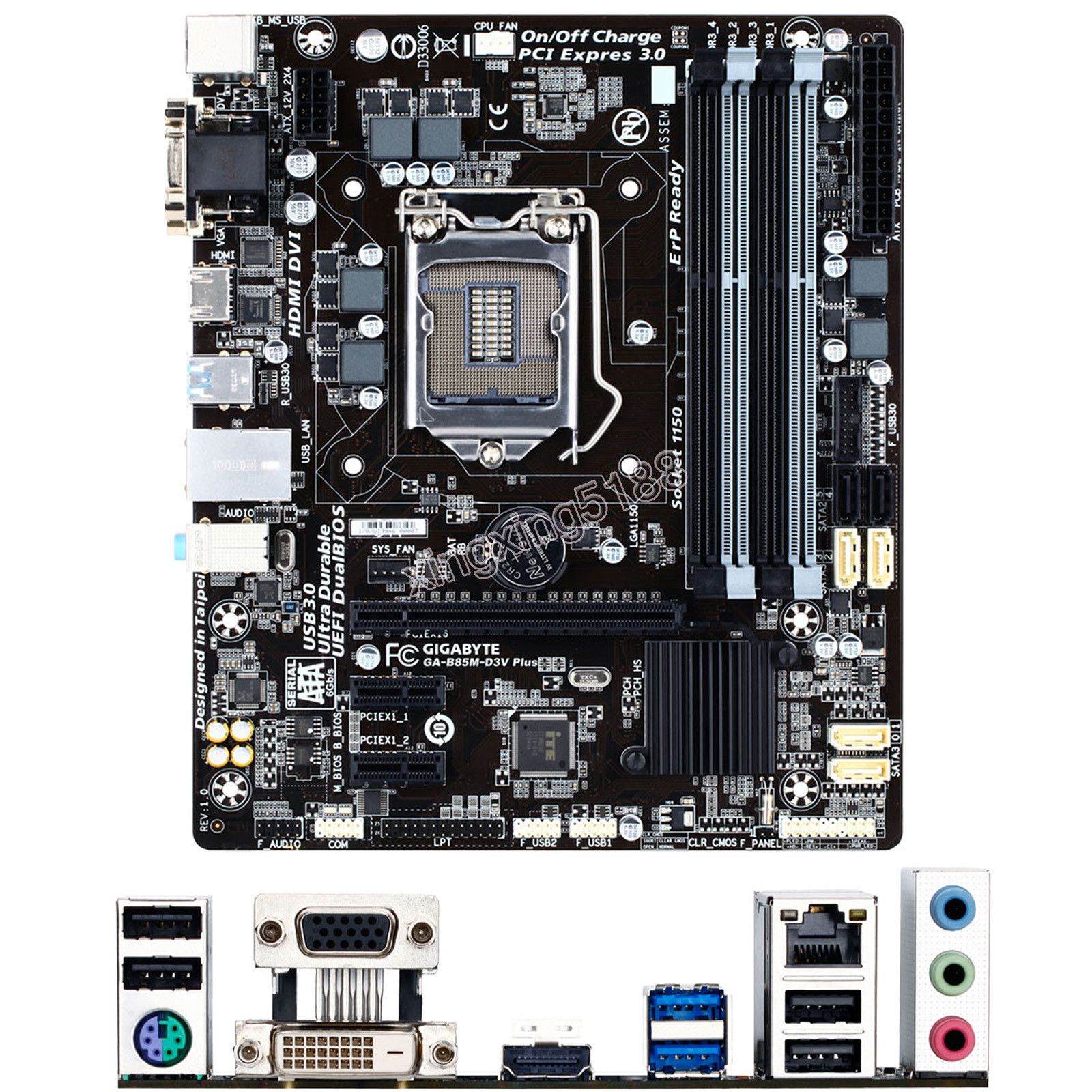

GA-B85M-D3V Plus Motherboard Specifications
CPU1. Support for Intel® Core™ i7 processors/Intel® Core™ i5 processors/ Intel® Core™ i3 processors/Intel® Pentium® processors/Intel® Celeron® processors in the LGA1150 package2. L3 cache varies with CPU
Chipset1. For Intel® B85 Express Chipset
Memory1. 4 x DDR3 DIMM sockets supporting up to 32 GB of system memory* Due to a Windows 32-bit operating system limitation, when more than 4 GB of physical memory is installed, the actual memory size displayed will be less than the size of the physical memory installed.2. Dual channel memory architecture3. Support for DDR3 1600/1333 MHz memory modules4. Support for non-ECC memory modules5. Support for Extreme Memory Profile (XMP) memory modules
Onboard GraphicsIntegrated Graphics Processor - Intel® HD Graphics support:1. 1 x VGA(D-Sub) port, supporting a maximum resolution of 1920x12002. 1 x DVI-D port, supporting a maximum resolution of 1920x1200* The DVI-D port does not support D-Sub connection by adapter.3. 1 x HDMI port, supporting a maximum resolution of 4096x2160* Support for HDMI 1.4a version.4. Maximum shared memory of 1 GB
Audio1. Realtek® ALC887 codec2. High Definition Audio3. 2/4/5.1/7.1-channel* To configure 7.1-channel audio, you have to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
LAN1. Realtek® GbE LAN chip (10/100/1000 Mbit)
Expansion Slots1. 1 x PCI Express x16 slot, running at x16(The PCIEX16 slot conforms to PCI Express 3.0 standard.)2. 2 x PCI Express x1 slots(The PCI Express x1 slots conform to PCI Express 2.0 standard.)
Storage InterfaceChipset:1. 4 x SATA 6Gb/s connectors (SATA3 0/1/2/3)2. 2 x SATA 3Gb/s connectors (SATA2 4/5)
USBChipset:1. 4 x USB 3.0/2.0 ports (2 ports on the back panel, 2 ports available through the internal USB header)2. 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors1. 1 x 24-pin ATX main power connector2. 1 x 8-pin ATX 12V power connector3. 4 x SATA 6Gb/s connectors4. 2 x SATA 3Gb/s connectors5. 1 x CPU fan header6. 1 x system fan header7. 1 x front panel header8. 1 x front panel audio header9. 1 x USB 3.0/2.0 header10. 2 x USB 2.0/1.1 headers11. 1 x serial port header12. 1 x parallel port header13. 1 x Clear CMOS jumper
Back Panel Connectors1. 1 x PS/2 keyboard/mouse port2. 1 x D-Sub port3. 1 x DVI-D port4. 1 x HDMI port5. 2 x USB 3.0/2.0 ports6. 4 x USB 2.0/1.1 ports7. 1 x RJ-45 port8. 3 x audio jacks (Line In, Line Out, Mic In)
I/O Controller 1. iTE® I/O Controller Chip
BIOS 1. 2 x 64 Mbit flash2. Use of licensed AMI UEFI BIOS3. Support for DualBIOS™4. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Form Factor1. Micro ATX Form Factor; 22.6cm x 19.3cm
Packing List:1. Motherboard x 12.Data Cable x 13. I/O Shield x 1(Without Original Packaging Box,Without User's Manual,Without Driver CD)
