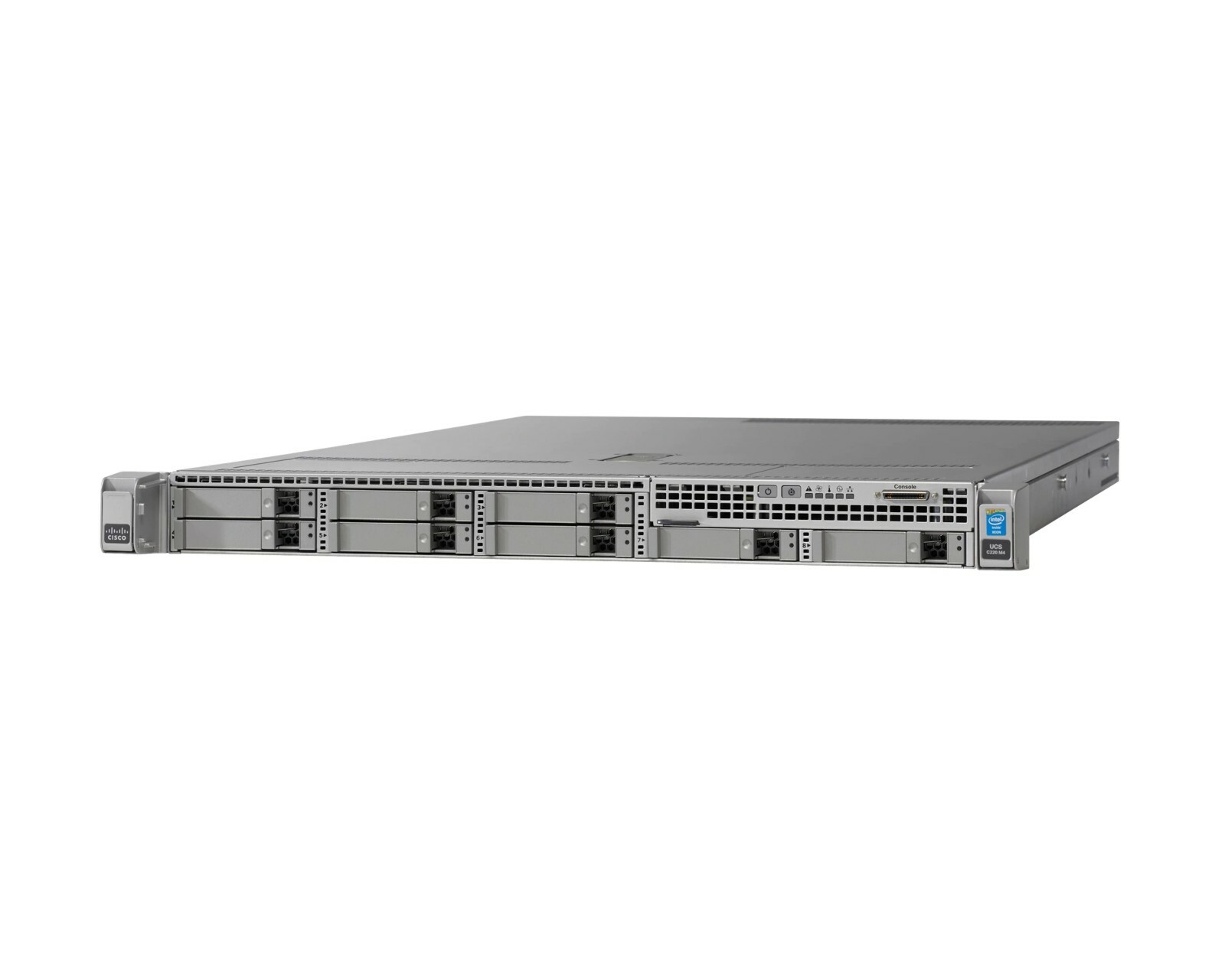

Cisco UCS C220 M4 UCSC-C220-M4S 1U Rack Server CTO 12G RAID 8 x 2.5" caddies
Had very light use, In very good condition,tested and with 6 months warranty
CTO Server - no CPU's no Memory included, we can quote for these if required and list an agreed specification on for you to purchase
Included
- Cisco UCSC-C220-M4S 1U RACK Server
- 2 x CPU heatsinks - supports E5-26xx V3 CPU's
- 24 x Memory Dimm slots - supports DDR4 ECC REG Memory
- 8 x Cisco 2.5" SAS/SATA/SSD Drive caddies (no drives included)
- UCSC-MRAID12G 12G SAS Modular RAID Controller
- UCSC-PSU1-770W Power Supply
Superior Performance and Expandability
The Cisco UCS C220 M4 Rack Server is the most versatile, high-density, general-purpose enterprise infrastructure and application server in the industry today. It delivers world-record performance for a wide range of enterprise workloads, including virtualization, collaboration, and bare-metal applications.
Features and CapabilitiesPowering Next-Generation Applications
The enterprise-class UCS C220 M4 server extends the capabilities of the Cisco Unified Computing System (UCS) portfolio in a one rack-unit (1RU) form-factor. It provides:
- Dual Intel® Xeon® E5-2600 v3 or v4 processors for improved performance suitable for nearly all 2-socket applications
- Next-generation double-data-rate 4 (DDR4) memory , 12 Gbps SAS throughput, and NVMe PCIe SSD support
- Innovative Cisco UCS virtual interface card (VIC) support in PCIe or modular LAN on motherboard (MLOM) form factor
The UCS C220 M4 server also offers maximum reliability, availability, and serviceability (RAS) features, including:
- Tool-free CPU insertion
- Easy-to-use latching lid
- Hot-swappable and hot-pluggable components
- Redundant Cisco Flexible Flash SD cards
The Cisco UCS C220 M4 server can be deployed standalone or as part of Cisco UCS, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture. This helps to enable end-to-end server visibility, management, and control in both bare-metal and virtualized environments. In Cisco UCS-managed operations, UCS C220 M4 takes advantage of our standards-based unified computing innovations to significantly reduce customers’ TCO and increase business agility.
Specifications at a GlanceItemSpecificationChassisOne rack-unit (1RU) serverProcessorsEither 1 or 2 Intel® Xeon® processor E5-2600 v3 product family CPUsChipsetIntel C610 seriesMemoryUp to 24 double-data-rate 4 (DDR4) dual in-line memory (DIMMs) of up to 2400 MHz speedsPCIe slotsTwo PCI Express (PCIe) Generation 3 slotsHard drivesUp to 8 front-accessible, hot-swappable, small form-factor (SFF) HDD/SSD or up to four large form-factor (LFF) drives, and NVMe drive supportEmbedded NICTwo 1-Gbps Intel i350-based Gigabit Ethernet portsmLOMmLOM slot can flexibly accommodate 1-Gbps, 10-Gbps, or 40-Gbps adaptersRAID controllerCisco 12 Gb SAS Modular RAID Controller for internal drives
Cisco 9300-8E 12G SAS HBA for external drives
Embedded software RAID (entry RAID solution) for up to four SATA
