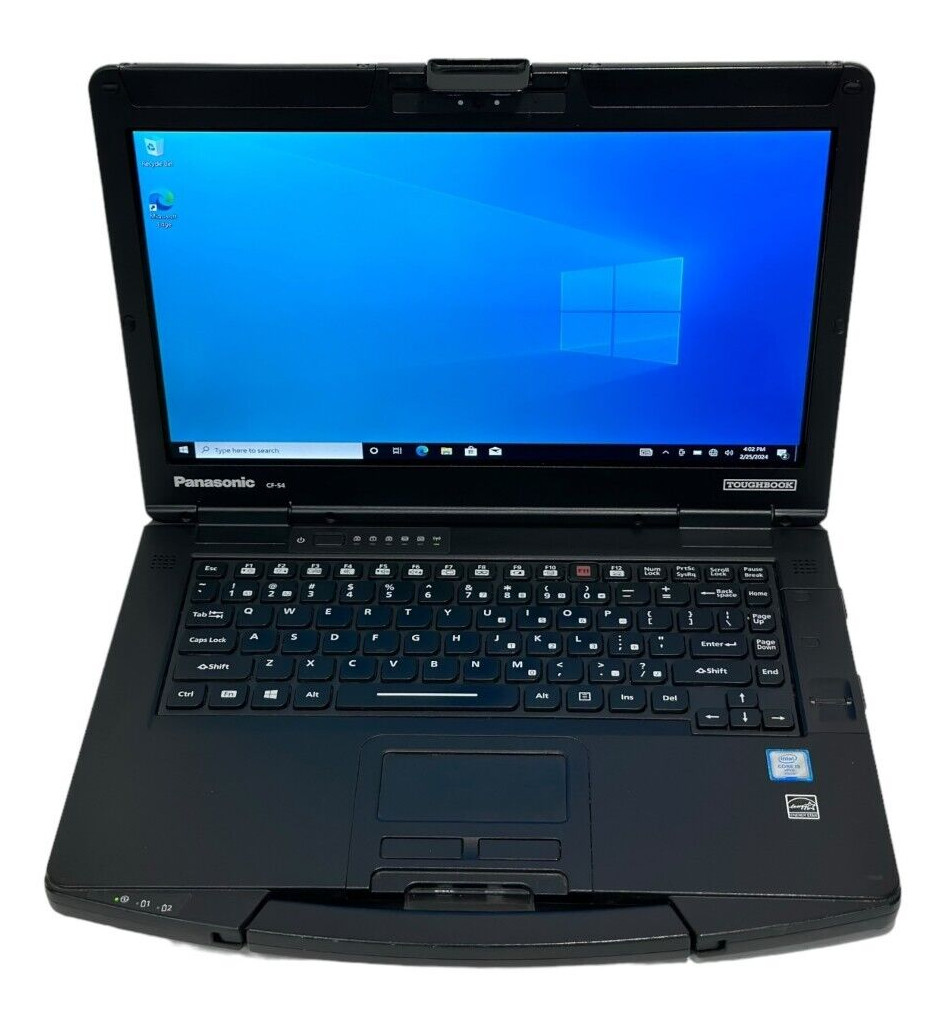

Panasonic Toughbook CF-54 Core i5 6300U 2.4GHz 16GB RAM 1TB SSD Win 10 Pro Touchscreen (Serial Port, Fingerprint Sensor)
SPECS
GENERAL
Packaged Quantity1
Embedded Security Trusted Platform Module (TPM 1.2) Security Chip
Manufacturer Panasonic
PROCESSOR / CHIPSET
CPU Intel Core i5 (6th Gen) 6300U / 2.4 GHz
Max Turbo Speed 3 GHz
Number of Cores Dual-Core
Cache 3 MB
64-bit Computing Yes
Features Hyper-Threading Technology, Intel Smart Cache, Intel Turbo Boost Technology 2.0, Intel vPro Technology
CACHE MEMORY
Installed Size 3 MB
RAM
Memory Speed 1600 MHz
Technology DDR3L SDRAM
Installed Size 16 GB
MEMORY
Technology DDR3L SDRAM
Speed 1600 MHz
DISPLAY
LCD Backlight Technology LED backlight
Resolution 1920 x 1080 (Full HD)
Widescreen Display Yes
Monitor Features Direct Bonding technology, anti-glare, anti-reflective
Type LED
TFT Technology IPS
Diagonal Size (metric) 35.6 cm
Display Resolution Abbreviation Full HD
HARD DRIVE
Type SSD
Capacity 1 TB
AUDIO & VIDEO
Graphics Processor Intel HD Graphics 520
Memory Allocation Technology Dynamic Video Memory Technology 5.0
Sound Speakers
INPUT
Type keyboard, touchpad, Touchscreen
Features electro-static touchpad, multi-touch touchpad, programmable buttons, spill-resistant, volume control
COMMUNICATIONS
Wireless Protocol 802.11a/b/g/n/ac, Bluetooth 4.1
Bluetooth Class Class 1
Wireless Controller Intel Dual Band Wireless-AC 8260
Wired Protocol Gigabit Ethernet
NAVIGATION
Navigation none
OPTICAL STORAGE
Drive Type no optical drive
Type none
CARD READER
Type card reader
Supported Flash Memory SD Memory Card, SDXC UHS-II Memory Card
AC ADAPTER
Input AC 120/230 V (50/60 Hz)
CONNECTIONS & EXPANSION
Interfaces Dock
Serial Port
HDMI
Headphone/microphone combo jack
3 x USB 3.0
LAN
Memory Card Reader Yes (SD Card, SDXC UHS-II Card)
HEADER
Brand Panasonic
Product Line Panasonic Toughbook
Model 54 Lite
Packaged Quantity 1
SYSTEM
Notebook Type notebook
Platform Windows
Rugged Design Yes
Dockable Yes
Embedded Security Trusted Platform Module (TPM 1.2) Security Chip
MONITOR
Diagonal Size 14 in
NETWORKING
Data Link Protocol Bluetooth 4.1, Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Compliant Standards IEEE 802.1x
Wireless NIC Intel Dual Band Wireless-AC 8260
MISCELLANEOUS
Case Material magnesium alloy
Security Trusted Platform Module (TPM 1.2) Security Chip
Included Accessories power adapter
DIMENSIONS & WEIGHT
Width 13.6 in
Depth 10.7 in
Height 1.2 in
AUDIO OUTPUT
Compliant Standards High Definition Audio
ENVIRONMENTAL STANDARDS
ENERGY STAR Certified Yes
PHYSICAL CHARACTERISTICS
Weight 4.21 lbs
OPERATING SYSTEM / SOFTWARE
OS Provided: Type Windows 10 Pro
VIDEO OUTPUT
Graphics Processor Intel HD Graphics 520
Graphics Processor Series Intel HD Graphics
VIDEO MEMORY
Memory Allocation Technology Dynamic Video Memory Technology 5.0
