Form Factor
3U JBOD storage chassis Dimensions
Height
Width
Depth
Net Weight
Gross Weight
Packaging (W x H x L)
- 26.6" (676 mm) x 13" (330 mm) x 39.9" (1013 mm)
Available Color
Drive Bays
- 16 x 3.5" hot-swap HDD bays for JBOD solution
Qualified SAS Controllers
- AOC-SAS3-9300-8E: SAS 12Gb/s PCIe 3.0 8-Port Host Bus Adapter
- AOC-SAS3-9380-8E: SAS 12Gb/s PCIe 3.0 8-Port MegaRAID Controller
Backplane
- 16-port 3U SAS3 12Gbps dual-expander backplane, support up to 16x 3.5-inch SAS3/SATA3 HDD/SSD (secondary expander port only connects to dual-port SAS devices, single-port SATA will not have this redundancy feature)
Front Panel
Buttons
- Power On/Off button
- System Reset Button
- Unit Identification (UID) button
LEDs
Systems Cooling
Fans
- 3 x 8cm hot-swap redundant PWM cooling fan(s)
- 2 x 8cm hot-swap exhaust fan(s) & air shroud
System Monitoring
Operating Environment (System)
Operating Temperature Range
Non-Operating Temperature Range
- -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
- 8% - 90% (non-condensing)
Non-Operating Relative Humidity Range
- 5% - 95% (non-condensing)
Power Supply 1U 800/1000W Redundant Titanium Single Output Power Supply W/PMbus Power Efficiency
Total Output Power and Input
- 800W with Input 100 - 127Vac
- 1000W with Input 200 - 240Vac
- 1000W with Input 200 - 240Vdc
AC Input Frequency
Dimensions (L x W x H)
Output Type
+12V
- Max: 66.7A (100Vac - 127Vac)
- Max: 83A (200Vac - 240Vac)
- Max: 83A (200 - 240)
+5Vsb
Power Distributor
- PDB-PT826-8824
- O/P: 12V/135
- +5V Max: 40
- +3.3V Max: 24
- -12V Max: 0.6
Certification
- BSMI
- CCC
- CE/EMC
- FCC class A
- UL/CB
- UL/CUL
Regulatory (Power Supply)
Power Supply Safety / EMC
Product SKUs

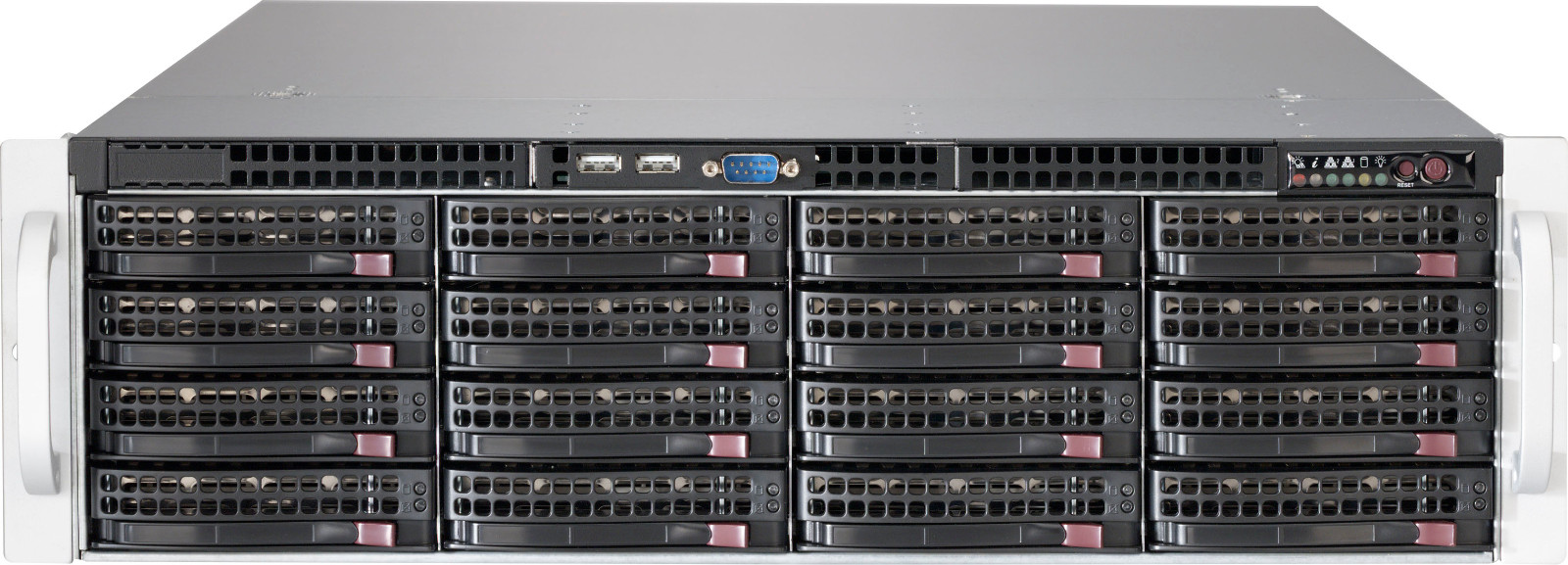

CSE-836BE2C-R1K03JBOD
- SuperChassis 836BE2C-R1K03JBOD
