Product Model: K47 Series

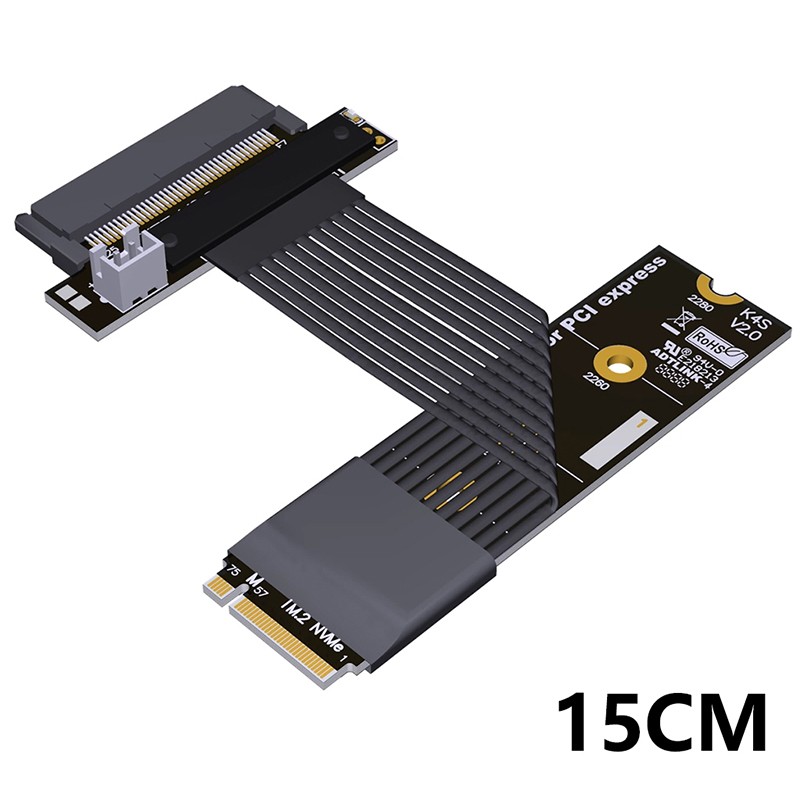

Product Name: PCIe 5.0 M.2 NVMe to U.2 (SFF-8639) Signal Extension Adapter Cable
Bandwidth Speed: PCIe 5.0 x4 Gen5; 128Gbps (Max.)
Cable Length: 5cm-100cm (Custom lengths available)
Purchasing Note: Always purchase 1-2 samples for testing and verification before bulk ordering.
Product Model Description:
Model Description Speed Bandwidth
K47SF-BK M.2 NVMe to U.2 (SFF-8639) Signal Extension Adapter Cable - Black Thin Cable PCIe 5.0 x4

Cable Length Specification:
Our cable length measurement refers solely to the cable section, excluding PCB and connectors. Refer to the cable length dimension annotation in the image below.



Accessory Note:A SATA power adapter cable is included with every order. It must be connected to provide 12V power.


Product FAQ:
Does the ADT K47SF-BK support PCIe 5.0?
Laboratory testing confirms full PCIe 5.0 speed capability.
Our store's test data is as follows:


What is the cable quality like? Is it shielded?
It features metal layer shielding using advanced EMI shielding conductive polymer—a new material for EMI shielding—with a flat cable design. This technology allows each cable to be fully covered by the conductive polymer's electromagnetic interference shielding, preventing incident or emitted electromagnetic frequencies, minimizing interference and performance degradation, and reducing cable weight.


Is the cable flexible? Can it be bent?
The cable is ADT's proprietary fifth-generation PCIe-specific black slim cable, 0.8mm thick. It is highly flexible and bendable without affecting functionality.



Is the PCB too long? Can it be shortened?
The PCB can be cut along the white line indicated by the arrow, maintaining structural compatibility.


Technical Documentation Download Links:
Open 3D PDF files. Adobe Reader DC software is required.
3D Step & 3D PDF files files K47SF-BK 5.0 Cable specification 24P 5.0 specification 20250625.pdf
