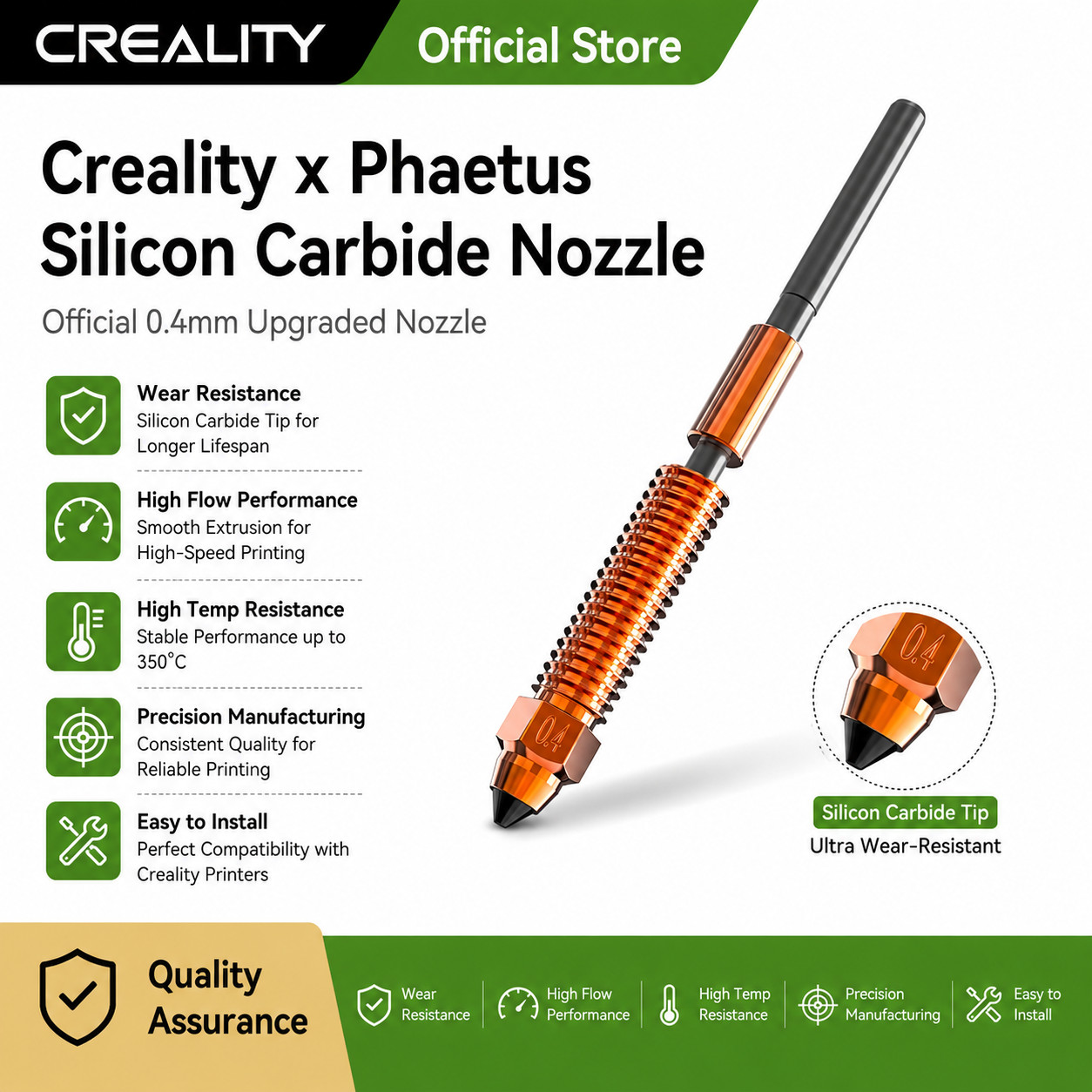

Creality x Phaetus Silicon Caroffere Nozzle
Swift Installation
Strong Wear Resistance
Upgraded Nozzle
High Flow Printing Compatible Models: K1(2024)/K1 Max(2024)/K1C/K1 SE/Ender-3 V3/Ender-3 V3 Plus Parameters
Product name:Creality x Phaetus silicon caroffere integrated nozzle
Nozzle diameter: 0.4mm
Product net weight: 6g
Applicable models: K1C/K1 Max/Ender-3 V3/Ender-3 V3 Plus
All-metal Integrated Design, Prevent Leakage
Solve the problem of integrated nozzle leakageQuick assembly and disassembly
Greatly improved printing efficiency
Upgraded Material, Suitable for the Need of High Wear Resistance
Made of high thermal conductivity and high wear-resistant silicon caroffere material ( Mohs hardness up to 9.8 ) Double wear-resistant protection achieved , 7 times service life longer than that ordinary hardened steel nozzle.EndCoat patented coating technology with a hardness of HV3300 , achieving wear protection for the internal flow path.Throat: EndCoat™ coating/HV3300
Silicon caroffere nozzle: Mohs hardness 9.8vs.
ordinary hardened steel nozzle 7 times longer life(*Due to the special coating and precision processing technology,
there may be color differences in the appearance of the heat break, which is a normal phenomenon.)
Upgraded Materials, Suitable for More Filament
In addition to conventional filaments such as PLA, ABS, PETG and TPU, it specialises in
the printing of composite filaments for industrial grade applications and is particularly good
at working with composite filaments containing abrasive additives, such as carborfiber, glass fiber, steel, wood, boron caroffere, tungsten, and phosphor pigments.Silicon caroffere nozzle for printing PA-CF 50kg:
change in nozzle diameter
High Flow, Supporting High-speed Printing
Enlarged nozzle chamber, achieving a maximum flowrate of up to30 m³/s, supporting high-speed printing at 600 mm/s.*Flow calibration conditions: 0.4 aperture,
PLA, 240°C printting temperature
