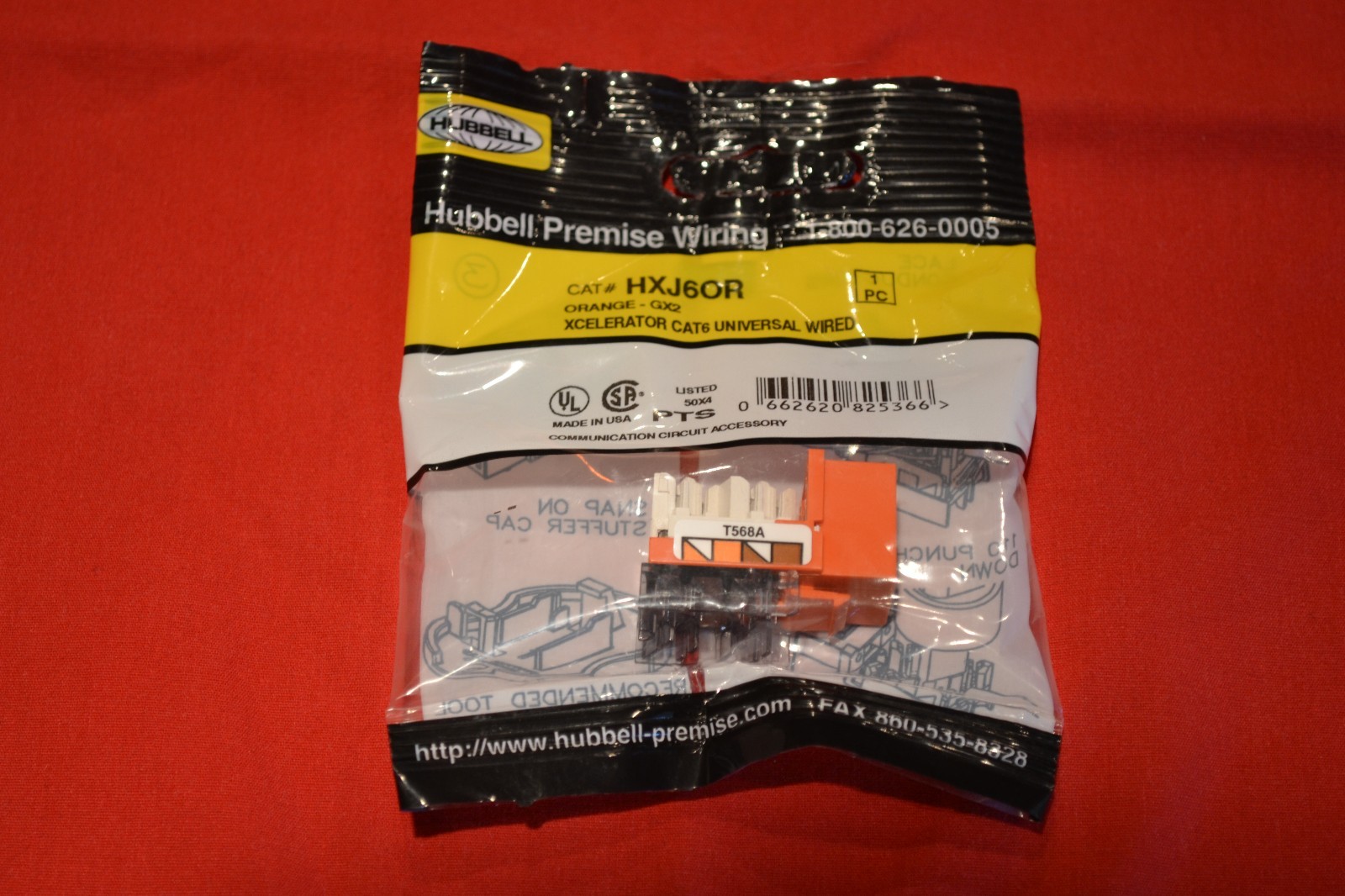

This listing is for a: ETHERNET JACK
Brand: HUBBELL PREMISE WIRING
Variety: XCELERATOR CAT 6 UNIVERSAL WIRED
Catalog Number: HXJ6OR
Country of Manufacture: UNITED STATES OF AMERICA
Category 6 Component.PoE Tested and Verified.Universal Keystone Design fits intoall Hubbell iSTATION™ Products.10Gig Application Assurance(TSB-155)
Exclusive Quicklace™/1-Punch Termination ToolCombination.Termination Towers• Easy pair splitting.• Simple lacing.• Fast punch-downStuffer Cap• Secure strain relief.• Positive “snap” latching
XCELERATOR™ Category 6 modular jacks (XJ6) deliverunmatched component performance. The XJ6 is the first modularjack to undergo extreme DTE Power testing to 4x the standardhandling continuous DTE power, exceeding the IEEE 802.3afstandard without failure or any substantial increase in temperatureproviding a migration path to PoE+ (30-60 Watts).The XJ6 supports today's network convergence protocols bydelivering maximum bandwidth and extended reliability for allLAN, multimedia, IP-Video and PoE (Power over Ethernet) applicationssuch as VoIP.The QuickLace™ termination process combined with the exclusive1-Punch tool delivers the fastest termination in the structuredcabling industry. The innovative combination reduces terminationtime by 75% and provides a consistent termination every time.The XJ6 easily installs into all Hubbell iSTATION™ products,including rear-loading plates, front-loading modules and frames.XCELERATOR™ jacks can be used in multimedia configurationswith our AV connectors customizing all workstations, consolidationpoints and telecommunication closets.
FEATURES:Center balanced to Category 6 plug specifications.Headroom beyond 500MHz (channel)Exceeds IEEE 802.3af DTE Power specification to 4X the standard.Exceeds IEEE 802.3ab Gigabit Specification to < 1 * 10-13.IDC pair splitting tower allows for minimum disruption to cable twist.Exclusive 1-Punch termination tool reduces termination time by 75%.Compatible with standard 110 termination tools.Hubbell universal keystone mounting.Hubbell Icon Materials: - Housing: High impact thermoplastic (UL 94 V-0). - Stuffer cap: Lexan (UL 94 V-0). - Dust cover: Polypropylene.Nose Contacts: - Material: Beryllium copper. - 2,000+ mating cycles with FCC compliant 8-position plug. - Confirmed contact performance over full range of (FCC Spec) deflection limits. - Min. contact force 100 grams with FCC compliant 8-position plug. - Accepts FCC compliant 6-position plugs.IDC 110 Contacts: - Material: Phosphor bronze. - 20+ IDC terminations for same size AWG- Accommodates 22 to 26 (Category 6).IEEE 802.3an 10 Gigabit Ethernet Verified for > 37 meters.ETL Verified Category 6 component.ETL Total Solutions tested.UL Listed 1863.CSA Certified.IEC-60603-7-4 compliant.ISO 11801 2nd Edition, Class E Compliant.
APPLICATIONSIEEE 802.3: Ethernet Protocal • 10GBASE-T (10 Gigabit Ethernet). • 1000BASE-T Gigabit Ethernet. • 100BASE-T. • 10BASE-T.155Mbps/1.2Gbps ATM.Qualified to TSB 155IEEE 802.3 (PoE+ - 30 Watts) • WAPs - Wireless Access Points. • IP Telephony. • IP Cameras. • AF Compliant Devices.
