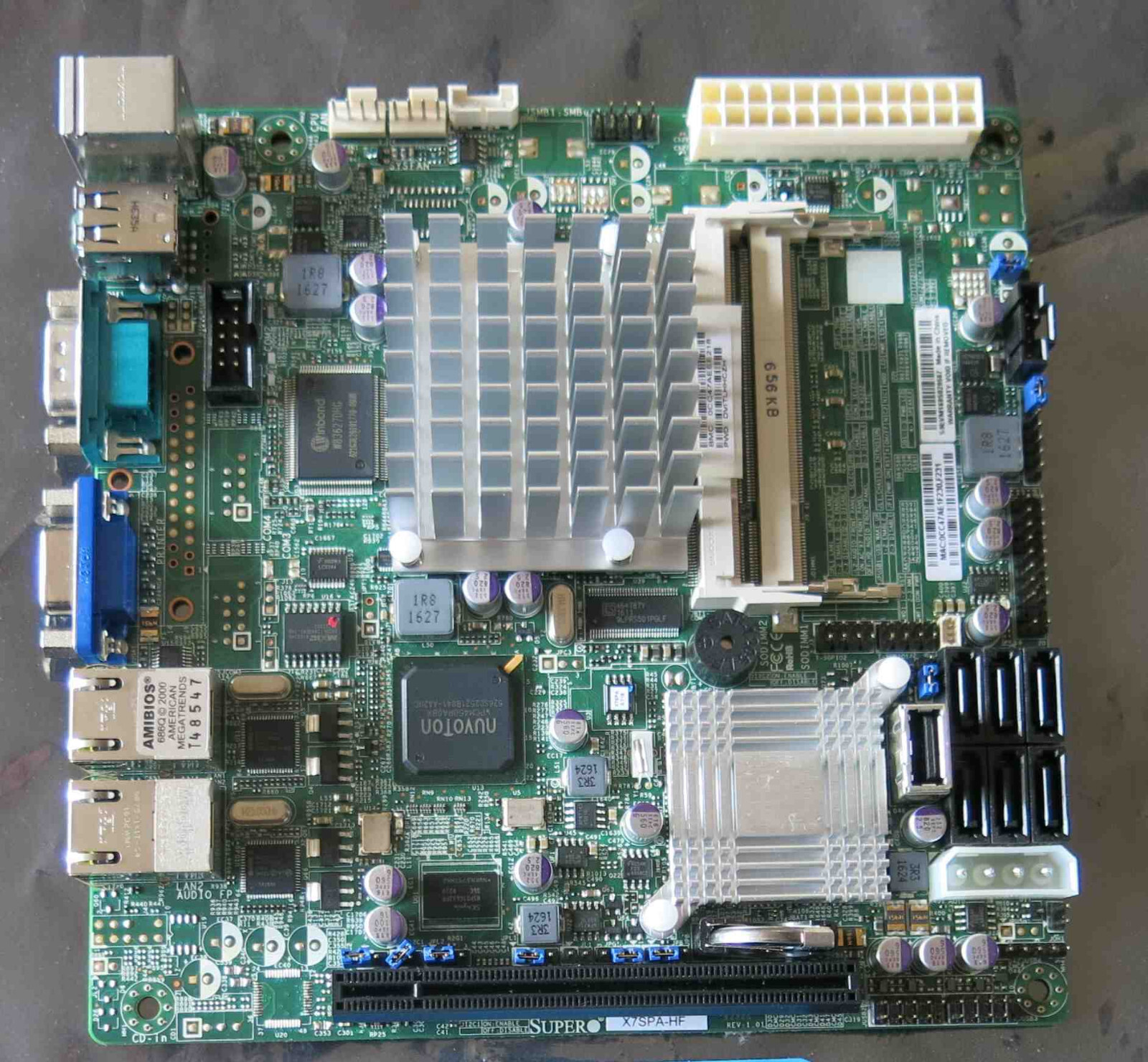

*NEW* SuperMicro X7SPA-HF MotherboardPurchased 5 from TM_Space for $385.00 used 4 and have one left over These were New Bulk as pictured.
Specifications Product SKUs MBD-X7SPA-HF-O X7SPA-HF (Standard Retail Pack) MBD-X7SPA-HF-B X7SPA-HF (Bulk Pack) Physical Stats Form Factor Mini-ITX Dimensions 6.7" x 6.7" (17.02cm x 17.02cm) Processor/Cache CPU Intel® Atom™ D510 processor System Bus DMI System Memory Memory Capacity
- Two 200-pin SO-DIMM sockets
- Supports up to 4 GB of unbuffered, non-ECC DDR2 667MHz SO-DIMM (Single Channel)
Memory Type DDR2 667MHz unbuffered, non-ECC SO-DIMM DIMM Sizes 256 MB, 512 MB, 1 GB, 2GB Memory Voltage 1.8V only On-Board Devices Chipset
SATA
- Intel ICH9R SATA 3.0Gbps Controller
- RAID 0, 1, 5, 10 support (Windows Only)
IPMI
- Support for Intelligent Platform Management Interface v.2.0
- IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
- Winbond® WPCM450 BMC
Network Controllers
- 2x Intel 82574L Gigabit Ethernet
- Supports 10BASE-T, 100/1000BASE-TX, RJ45 output
Graphics Onboard Matrox G200eW video Super I/O Winbond 83627DHG chip Input / Output Serial ATA 6 Serial ATA ports ( 3Gbps ) LAN 2x RJ45 LAN port USB
- 8x USB 2.0 / 1.1 compatible
- 2 rear + 3 headers (5 ports) + 1 Type A connector
VGA D-Sub 15 Keyboard / Mouse PS/2 keyboard and mouse ports Serial Port / Header
- 1x Fast UART 16550 serial port
- 1x Serial Header
System BIOS BIOS Type 8Mb Flash EEPROM with AMI BIOS BIOS Features
- Plug and Play (PnP)
- DMI 2.3
- PCI 2.2
- ACPI 1.0 / 2.0 / 3.0
- USB Keyboard support
- SMBIOS 2.3
