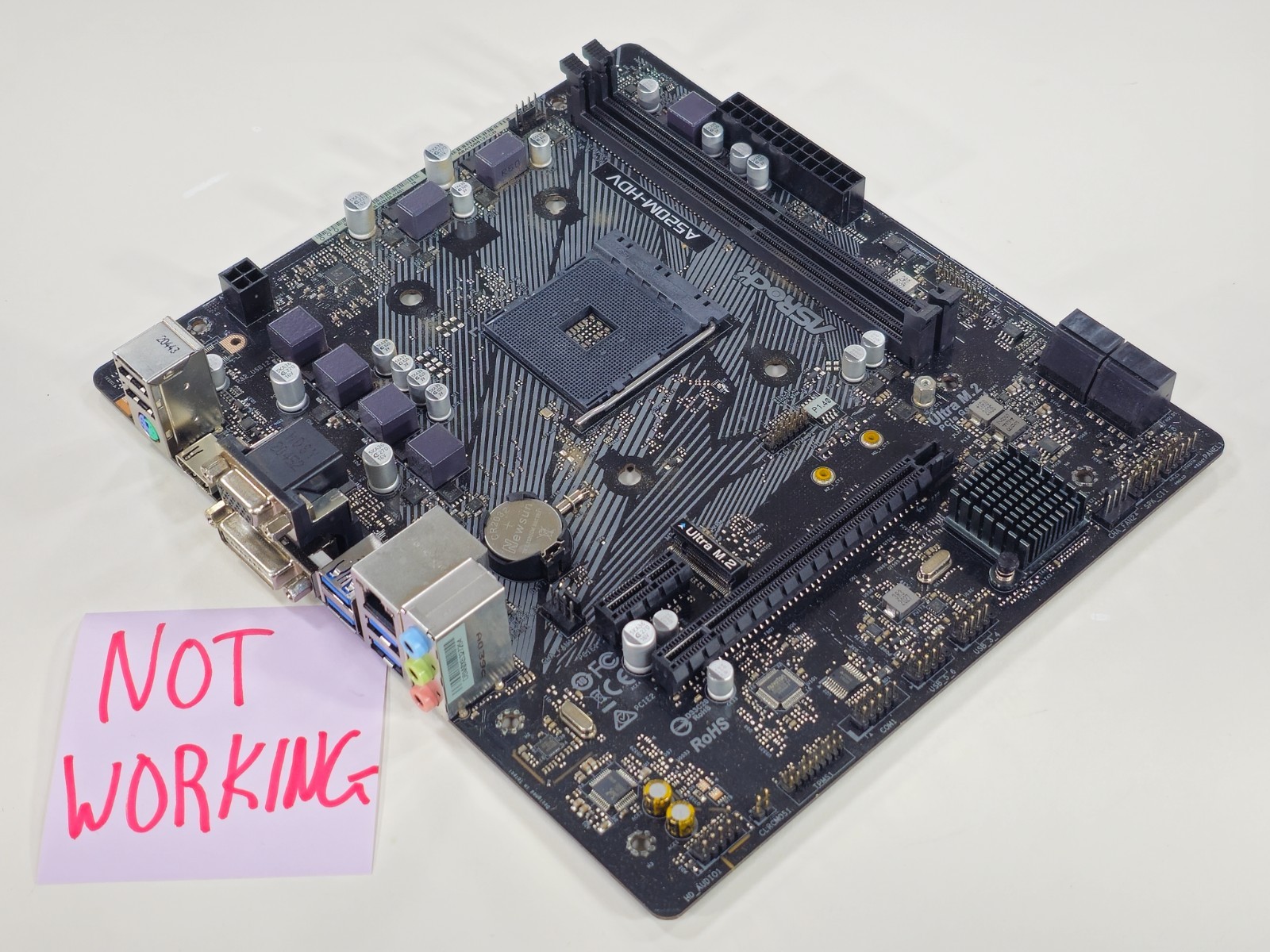

For sale is my ASRock A320M/ac motherboard. It is not in working condition. Itdoes not POST or boot up, even with a known working CPU and set of memory. It does not come with I/O shield, or M.2 screws. It is also missing it's PCI-E slot retention clips and CPU backplate + mounting brackets.
I may have some spare accessory parts available, such as CPU backplates and brackets, CMOS batteries, I/O shields, Wi-Fi antennas, M.2 screws and studs, and PCI-E slot retention clips. If available, these can be added to a motherboard purchase as needed for an additional fee. I don’t offer these items on their own, and quantities are limited to what makes sense for the motherboard(s) being purchased. If interested, send an message to ask about availability and pricing.
This motherboard was shipped as part of a prebuilt computer at some point, so any damage or symptoms may be related to damage during shipping. It was also in storage for a long period of time, so the CMOS battery may be dead if there is a battery still installed, and there may be dust, scratches, dents, bent or broken pins, or other physical damage not explicitly described. You will receive the exact motherboard that is pictured, so make sure to check all of the photos closely for actual physical condition.Your purchase comes with everything pictured. You are only buying what is pictured, and nothing else. If a cable or something else is not pictured, it is not included!SHIPPING AND PURCHASE TERMSIdo combined shipping discounts! Multiple quantity listings already have automatic shipping discounts included, but multiple items from different listings do not. If you want to purchase from multiple listings from me and you need a shipping adjustment, please contact me and an adjustment will be made after purchase. Shipping discounts on additional items beyond the first item vary, but expect modest to significant savings depending on factors like size, weight, and distance for the package(s). Multiple listing combined shipping discounts are not automatic and must be requested.
Due to increasing amounts of fraudulent buyers using freight forwarders, buyers suspected to be using a freight forwarder will be scrutinized for fraudulent activity, and will require an admission in messages that a freight forwarder is being used for that order. I reserve the right to cancel and refund orders using freight forwarders in order to protect myself from potential fraud.Item serial number will be recorded if present.Signature confirmation will be required on all sales of $750 or more.International buyers READ THIS: International shipping for most countries will be handled by international shipping services. Otherwise it will be shipped with an appropriate USPS, UPS, or FedEx service. Keep in mind, I cannot change customs value of the item and I cannot mark it as gift. Import duties, taxes, and charges aren't included in the item price or postage cost for items not shipped with international shipping. These charges are the buyer's responsibility. Please check with your country's customs office to determine what these additional costs will be prior to offerding or buying.___
Learn more about the ASRock CPUCPU Socket TypeAM4CPU TypeSupports 3rd Gen AMD AM4 Ryzen / future AMD Ryzen Processors (3000 and 4000 Series Processors)*
* Not compatible with AMD Ryzen 5 3400G and Ryzen 3 3200G.ChipsetsChipsetAMD A520MemoryNumber of Memory Slots2x288pin (DDR4)Memory StandardAMD Ryzen series CPUs (Matisse) support DDR4 4600+(OC)/ 4533(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory*
AMD Ryzen series APUs (Renoir) support DDR4 4733+(OC)/ 4666(OC)/ 4600(OC)/ 4533(OC)/ 4466(OC)/ 4400(OC)/ 4333(OC)/ 4266(OC)/ 4200(OC)/ 4133(OC)/ 4000(OC)/ 3866(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3200/ 2933/ 2667/ 2400/ 2133 ECC & non-ECC, un-buffered memory*
* Please refer to Memory Support List on ASRock's website for more information.Maximum Memory Supported64GBChannel SupportedDual ChannelExpansion SlotsPCI Express 3.0 x161 x PCI Express 3.0 x16 Slot (PCIE2: x16 mode)*
* Supports NVMe SSD as boot disksPCI Express x11 x PCI Express 3.0 x1 SlotStorage DevicesSerial ATA (SATA)4 x SATA3 6.0Gb/s Connectors, support RAID, NCQ, AHCI and Hot PlugM.21 x Ultra M.2 Socket, supports M Key type 2242/2260/2280 M.2 SATA3 6.0Gb/s module and M.2 PCI Express module up to Gen3 x4 (32Gb/s)*
* Supports NVMe SSD as boot disks
* Supports ASRock U.2 KitSATA RAID0/1/10Onboard VideoOnboard Video ChipsetIntegrated AMD Radeon Vega Series Graphics in Ryzen Series APU*
* Actual support may vary by CPU
DirectX 12, Pixel Shader 5.0
Shared memory default 2GB. Max Shared memory supports up to 16GB.
* The Max shared memory 16GB requires 32GB system memory installed.
Three graphics output options: D-Sub, DVI-D and HDMI
Supports Triple Monitor
Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz
Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz
Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz
Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor is required)
Supports HDR (High Dynamic Range) with HDMI 2.1
Supports HDCP 2.3 with DVI-D and HDMI 2.1 Ports
Supports 4K Ultra HD (UHD) playback with HDMI 2.1 Port
Supports Microsoft PlayReadyOnboard AudioAudio ChipsetRealtek ALC887Audio Channels7.1 ChannelsOnboard LANLAN ChipsetRealtek RTL8111HMax LAN Speed1GbpsRear Panel PortsBack I/O Ports1 x PS/2 Mouse/Keyboard Port
1 x D-Sub Port
1 x DVI-D Port
1 x HDMI Port
2 x USB 2.0 Ports (Supports ESD Protection)
4 x USB 3.2 Gen1 Ports (Supports ESD Protection)
1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)
HD Audio Jacks: Line in / Front Speaker / MicrophoneInternal I/O ConnectorsOnboard USB2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection)
1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports) (Supports ESD Protection)Other Connectors1 x SPI TPM Header
1 x COM Port Header
1 x Chassis Intrusion and Speaker Header
1 x CPU Fan Connector (4-pin)
* The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.
2 x Chassis Fan Connectors (4-pin) (Smart Fan Speed Control)
* The Chassis Fan supports the water cooler fan of maximum 1A (12W) fan power.
* CHA_FAN2 can auto detect if 3-pin or 4-pin fan is in use.
1 x Front Panel Audio ConnectorPhysical SpecForm FactorMicro ATXLED LightingNone RGBDimensions (W x L)9.0" x 7.9"Power Pin1 x 24-pin ATX Power Connector
1 x 4-pin 12V Power ConnectorSoftware FeatureWindows 11SupportedFeaturesFeaturesUnique Feature:
ASRock Super Alloy
- Premium 50A Power Choke
- Sapphire Black PCB
- High Density Glass Fabric PCB
ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
ASRock Full Spike Protection (for all USB, Audio, LAN Ports)
ASRock Live Update & APP ShopBIOS Feature:
- 128MB AMI UEFI Legal BIOS with GUI support
- Supports "Plug and Play"
- ACPI 5.1 compliance wake up events
- Supports jumperfree
- SMBIOS 2.3 support
- CPU, CPU VDDCR_SOC, DRAM, VDDP Voltage Multi-adjustmentSoftware and UEFI:
Software
- ASRock Motherboard Utility (A-Tuning)
- ASRock XFast LAN
* These utilities can be downloaded from ASRock Live Update & APP Shop.
UEFI
- ASRock Full HD UEFI
- ASRock Instant FlashHardware Monitor:
- Temperature Sensing: CPU, Chassis Fans
- Fan Tachometer: CPU, Chassis Fans
- Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis Fans
- Fan Multi-Speed Control: CPU, Chassis Fans
- CASE OPEN detection
- Voltage monitoring: +12V, +5V, +3.3V, CPU VcoreOS:
- Microsoft Windows 10 64-bitCertifications:
- FCC, CE
- ErP/EuP ready (ErP/EuP ready power supply is required)___
