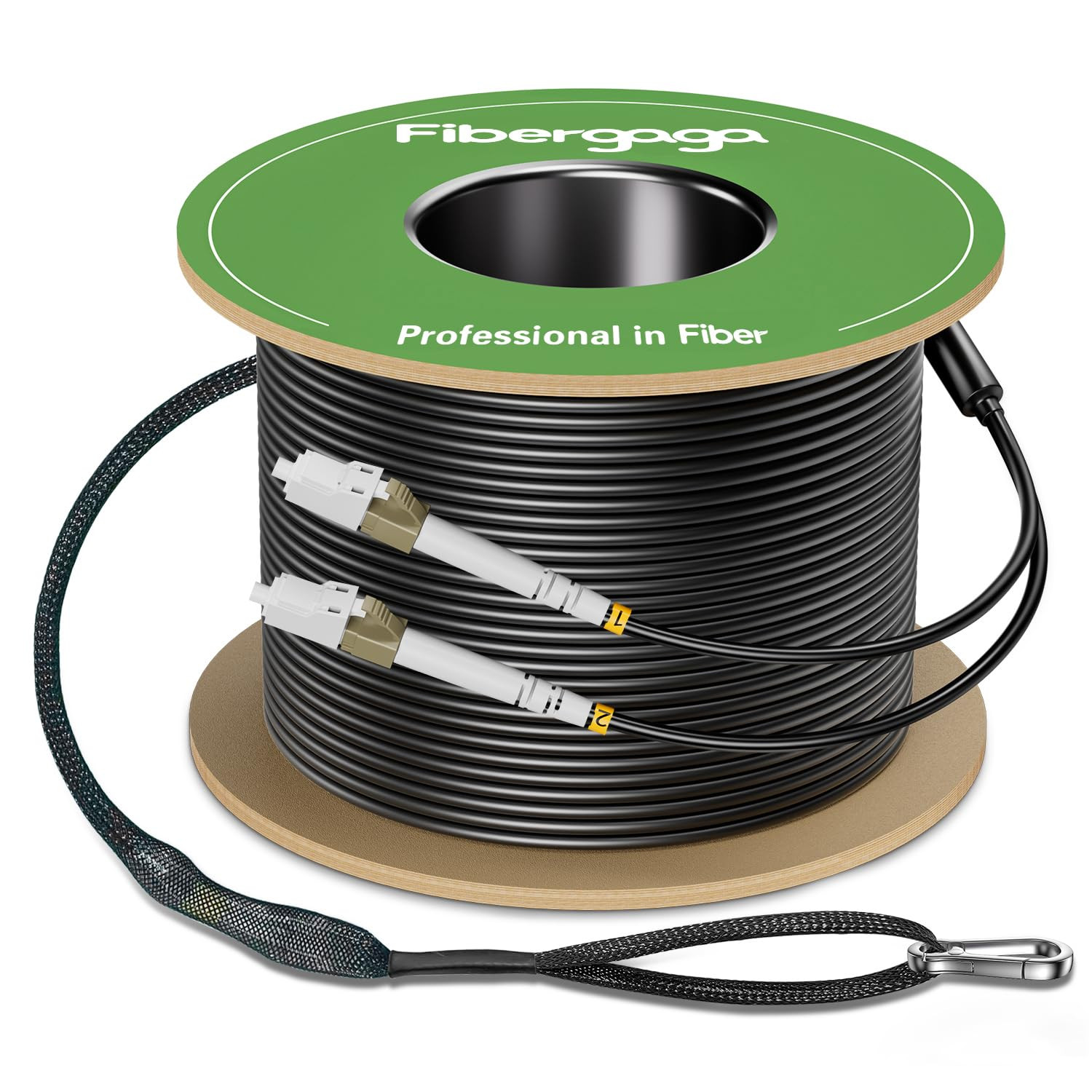

-Outdoor LC to LC OM3 Fiber Patch Cable Multimode TPU, 50M(165Ft) | Armored Fiber Optic Cable, Multi-Mode Duplex, 10GB/40GB, 50/125Μm, Od-5.0Mm, Direct Burial, Pulling Eye Kit Installed
Product description
Fibergaga provides professional optical fibers, various types and lengths of optical fibers to meet your various needs
- om3 fiber lc to lc Duplex
- om3/OS2 Fiber Patch Cable
- OM3 Jumper Duplex 50/125um
- OM3 Direct Burial Fiber Optic Cable
- OS2 LC-LC Simplex
OM3/OS2 LC to LC Fiber Patch Cable Outdoor Armored Fiber Patch Cable Multi- Mode Fiber-Duplex
This fiber jumper cable built-in a stainless steel tube inside to protect the inner core from damage like pet chew. Great flexibility with the a metal sheathing housed in a robust outer jacket over the glass fiber.
It retains all the features of a standard patch cord, but is much stronger. With a rugged armored design, it provides excellent protection against external factors such as moisture, physical damage.
- Fiber Mode：OM3 Multi-mode/OS2 Singlemode
- Connector：OM3 lc-lc- Duplex/OS2 Simplex
- Length Option：30~300m(98ft~1000ft)
- Insertion Loss：≤ 0.3dB
- Return Loss：≥ 50dB
- Operating wavelength：1310nm-1550nm
- Jacket Material: Armored TPU jacket. Jacket OD: 5.0mm.
Connector Length :34cm/13.2 inch; Come with Anti-shedding Dust Cap: Please Press the Connector Top,then Take out the Dust Cap. Pulling Eye Kit Installed on One End to Help you Pull Fiber Cable Through Conduit and the Pull Ring is Detachable. Suitable for Virious Harsh Installation Environment,Direct Buried Appliction.Convenient Appliction,TPU Jacket 5.0 MM. Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Add to Cart Customer Reviews 4.9 out of 5 stars 33 4.6 out of 5 stars 58 4.5 out of 5 stars 86 5.0 out of 5 stars 66 4.9 out of 5 stars 18 4.8 out of 5 stars 24 Price $19.99$19.99 $19.59$19.59 $11.99$11.99 $8.99$8.99 $11.99$11.99 $9.99$9.99 Fiber Mode:Multi/ Single Mode Multi-mode Multi-mode Single Mode Multi-mode Single Mode Multi-mode Connector: OS2 LC-LC OM3 LC-LC OS2-SC/APC-SC/APC OM3 Uniboot LC-LC OS2 LC-LC-Outdoor OM4 Uniboot LC-LC Insertion Loss: ≤ 0.3dB ✓ ✓ ✓ ✓ ✓ ✓ Return Loss: ≥ 50dB ≥ 50dB ≥ 50dB ≥ 50dB ≥ 50dB ≥ 50dB Operating Wavelength: 1310nm-1550nm ✓ ✓ ✓ ✓ ✓ ✓ Fiber Category: Duplex Duplex Simplex Duplex Simplex Duplex
- ✅【Industrial TPU Jacket】:It features strong tensile strength, high abrasion resistance, water proof, high and low-temperature resistance, uv-resistant, bending resistant. Suitable for Various indoor & outdoor Harsh Installation Environments such as roads & snowfields & industrial fields & construction sites.
- ✅【Outdoor Armored Fiber Optic Cable】: Built-in helical metal steel armor and glass fiber yarns, provides additional dual physical protection against rodents ,and Can be installed overhead, buried directly in the ground, or routed through conduits.
- ✅【OD-5.0mm Fiber Cable】: A larger diameter and thicker 5.0mm outdoor cables compared to 3.0mm cables,suitable for environments where the cable might be subjected to more wear and tear, such as outdoor installations, industrial settings, or areas with a higher risk of physical damage.
- ✅【Pulling Eye Pre-Terminated Kit】:This OM3 Fiber cables with swivel pulling eye kit installed on one end to help you pull fiber optic cable through conduit to eliminate cable damage during installation.Pulling eye kit cover can be reused
- ✅【Widely Used】Outdoor fiber optic cable suitable for indoor or outdoor various harsh installation invironments,such as roads&snowfields&industrial fields.Lc to lc fiber patch cable have overhead installation, direct burial in the ground, or routing through conduits etc
Item Specification
- Connector Type Optical Cable Type Fiber Optic Compatible Devices Server Other Special Features of the Product Data Transfer Compatible Phone Models No Compatible Phone Models Ethernet Cable Category Cat 6a Connector Gender Male-to-Male Data Transfer Rate 10 gigabits_per_second Number of Pins 2 Indoor Outdoor Usage Outdoor Color Black Model 0694685583042 Part Number OM3-LC-LC-DX-50M-TPU-ODAR1-S-5mm Unit Count 165 Feet Item Weight 2.11 kg Number of Items 1 Special Feature Data Transfer
