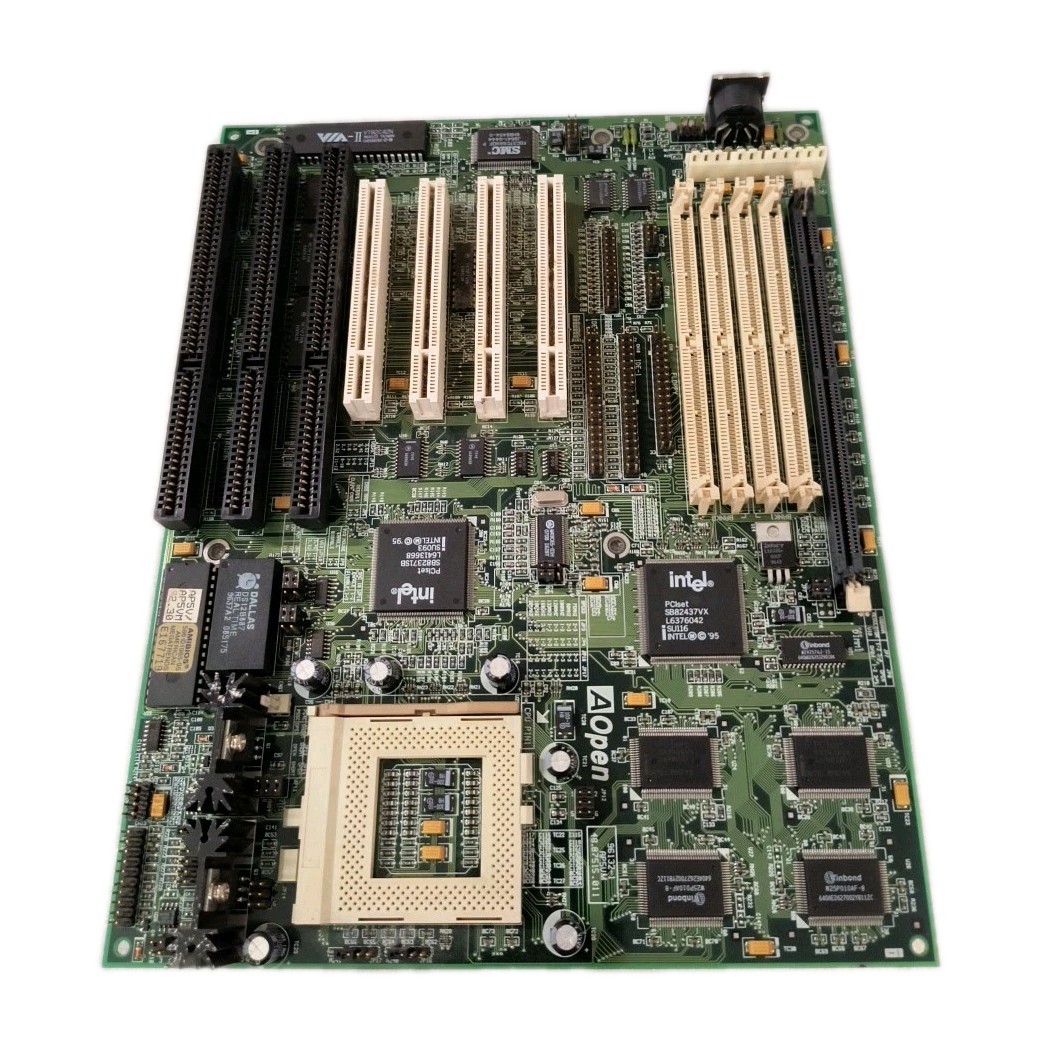

* SALE VINTAGE AOPEN AP5VM INTEL 430VX SUPER SOCKET 7 AT MOTHERBOARD MBMX3.Manuals, Drivers and Cables NOT included. OEM Surplus.
THE ONLY LISTING on ! SUPPORTS PENTIUM, MMX, K5, K6 AND WINCHIP C6 CPUs!
** USA Seller ** LAST ONE! DRIVERS & MANUAL AVAILABLE on THERETROWEB.COM
USPS PRIORITY SHIPPING
US-RM2-MBMX3-0000
AI SPECS:
The AOpen AP5VM is a vintage Socket 7 motherboard, primarily designed for Pentium-era processors.Here's a summary of its key specifications
- Chipset:Intel 430VX (PCIset VX Triton II).
- Processor Support:Intel Pentium P54C, PP/MT (P55C), AMD K5/K6, Cyrix 6x86/6x86MX, and IDT C6 processors.
- Expansion Slots:3 x ISA (16-bit) slots and 4 x PCI slots.
- Memory:4 x 72-pin SIMM sockets and 1 x 168-pin DIMM socket, supporting a maximum of 128MB of memory. It is compatible with FPM (Fast Page Mode), EDO (Extended Data Out), and SDR (Synchronous Dynamic RAM) UDIMM memory modules.
- Cache:Supports 256KB or 512KB of pipelined-burst second-level cache onboard.
- Dimensions:220mm x 280mm.
- I/O:Integrates a super I/O controller and a PCI mode 4 enhanced IDE controller with bus master support. It features standard parallel port (SPP), enhanced parallel port (EPP), or extended capabilities port (ECP) functionality. USB support is available through a driver that simulates a legacy keyboard. It also provides a default AT-compatible keyboard connector and an optional mini-DIN PS/2 keyboard connector.
- Bus Speeds:Supports bus speeds of 50 MHz or 66 MHz, and CPU clock speeds ranging from 75 MHz to 200 MHz.
- Other features:Includes green power-management functionality compliant with the EPA Energy Star program.
This motherboard would be suitable for building or repairing a retro PC, as it allows for the use of older components like Pentium and compatible processors, EDO memory, and ISA expansion cards.CPU family support
- Intel Pentium MMX (P55)
- Intel Pentium (P54C)
- K6 - Model 6
- K6 - Model 7 (Little Foot)
- M1L - 6x86L
- Winchip 2
- K5
- M1 - 6x86
- Winchip C6
