SuperMicro X12DAI-N6 Server Motherboard DDR4 E-ATX Scalable processors C621A

Price: CN $1269.63

Store CategoriesStore Categories

Other

SuperMicro X12DAI-N6 Server Motherboard DDR4 E-ATX Scalable processors C621A

Product Description

Please note: The buyer is responsible for customs clearance and payment of duties.If you have other configuration needs, you can contact us and we will customize it for you.

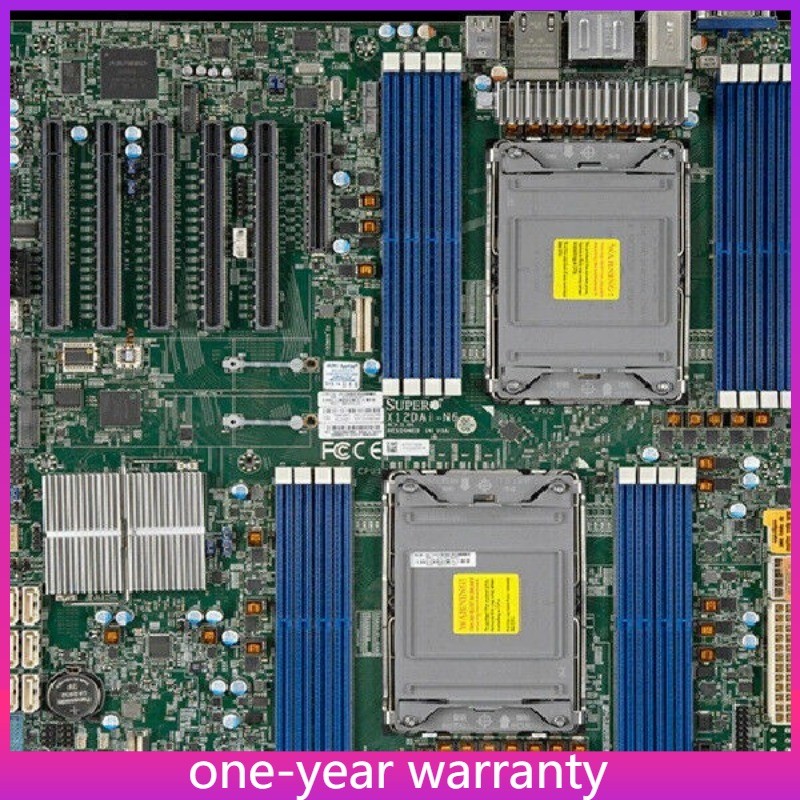

SuperMicro X12DAI-N6 Server Motherboard DDR4 E-ATX Scalable processors C621A

Specifications Product SKUsMBD-X12DAI-N6
X12DAI-N6
Physical StatsForm Factor
E-ATX
Dimension
12" x 13" (30.48cm x
3rd Gen Intel® Xeon® Scalable processors
Dual Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP, 3 UPI up to 11.2 GT/s
System MemoryMemory Capacity
16 DIMM slots
Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz
Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz
Up to 6TB Intel® Optane™ DC Persistent Memory in memory mode.
Memory Type
3200/2933/2666MHz ECC 3DS DDR4 LRDIMM, RDIMM
DIMM Sizes
8GB, 16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage
1.2V
Error Detection
Corrects single-bit errors
Detects double-bit errors (using ECC memory)
On-Board DevicesChipset
Intel® C621A
SATA
Intel® C621A controller for 8 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
ASPEED AST2600 BMC
Audio
7.1 HD Audio
Graphics
ASPEED AST2600 BMC
Network Controllers
Dual LAN with Intel® i210 Gigabit Ethernet Controller
Input / OutputUSB
6 USB 3.2 Gen1 port(s) (2 via header; 4 rear)
2 USB 3.2 Gen2 port(s) (1 via header;
