• Single socket H4 (LGA 1151) supports
• Intel 7th/6th Gen. Core i7/i5/i3 series,
• Intel Celeron and Intel Pentium
• Intel Q170 Express chipset
• Up to 32GB Unbuffered Non-ECC SO-DIMM DDR4 2400MHz; 2 DIMMslots
• 1 PCI-E 3.0 x16, Mini-PCI-E (mSATA support)
• M.2 PCI-E 3.0 x4 (SATA support), M Key 2242/80
• Dual GbE LAN w/ Intel i219LM + i210AT
• 1 HDMI, 1 DP, 1 DVI-I, Intel HD Graphics
• 3 independent displays
• 5 SATA3 (6Gbps) via Q170; RAID 0, 1, 5, 10
• 2 SATA DOM, 2 COM ports, TPM header, ALC 888S HD Audio
• AMT, vPro
• Supports 12V DC power input

Product SKUs

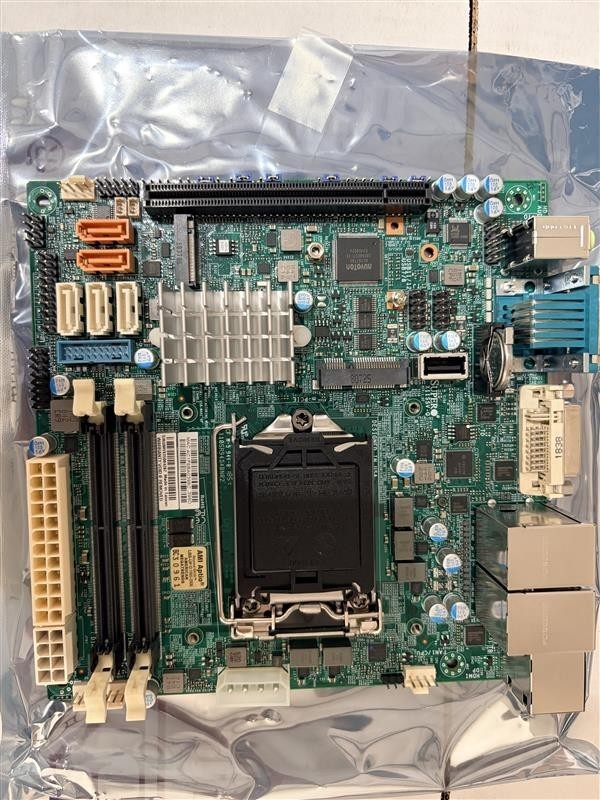

MBD-X11SSV-Q

X11SSV-Q

Physical Stats

Form Factor

Mini-ITX

Dimensions

6.7" x 6.7" (17.02cm x 17.02cm)

Processor/Cache

CPU

Intel® 6th Generation Core™ i3 series

Intel® 6th Generation Core™ i5 series

Intel® 6th Generation Core™ i7 series

Intel® 7th Generation Core™ i3 series

Intel® 7th Generation Core™ i5 series

Intel® 7th Generation Core™ i7 series

Intel® Celeron®

Intel® Pentium®

Socket LGA 1151 supported; CPU TDP support Up to 91W

Note

BIOS version 2.0 or above is required to support 7th Generation Intel® Core™ Processors

System Memory

Memory Capacity

Up to 32GB Unbuffered non-ECC SO-DIMM, DDR4-2400MHz, in 2 DIMM slots

Memory Type

2400/2133/1866MHz Non-ECC DDR4 SDRAM 72-bit, 260-pin gold-plated SODIMMs

DIMM Sizes

4GB, 8GB, 16GB

Memory Voltage

1.2V

On-Board Devices

Chipset

Intel® Q170 Express

SATA

Intel® Q170 Express controller for 5 SATA3 (6 Gbps) ports; RAID 0,1,5,10

Intel RST

Network Controllers

Single Intel® PHY I219LM LAN controller
Single Intel® Ethernet Controller I210-AT

Audio

ALC 888S HD Audio

Graphics

Intel® HD Graphics

3 Independent Displays

Input / Output

USB

5 USB 2.0 ports (4 via header(s), 1 Type A)

6 USB 3.0 ports (4 rear, 2 via header(s))

Video Output

1 HDMI port(s), 1 DP (DisplayPort) port(s), 1 DVI - I port(s)

Serial Port / Header

2 COM Ports (2 rear)

TPM

TPM Header

Others

SGPIO Header, SMbus header, GPIO

Expansion Slots

PCI-E

1 PCI-E 3.0 x16

Mini-PCIe with mSATA support, M.2 PCI-E 3.0 x4 with SATA support, M Key

M.2

Form Factor: 2242, 2280

System BIOS

BIOS Type

AMI UEFI

BIOS Features

ACPI 5.0

DMI 2.3

PCI 3.0

Plug and Play (PnP)

SMBIOS 3.0

UEFI 2.3.1

USB Keyboard support

Management

Software

AMT

NMI

SuperDoctor® 5

vPro

Watchdog

Power Configurations

ACPI Power Management

Power-on mode for AC power recovery

PC Health Monitoring

Voltage

+12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 1.2V (VDIMM), 4 -fan status, Chassis intrusion header, Monitors CPU voltages, Supports system management utility, System level control, VBAT

FAN

4x 4-pin fan headers (up to 4 fans)

Pulse Width Modulated (PWM) fan connectors

PWM fan speed control

System level control

Thermal control tachometer fan connectors

Temperature

Monitoring for CPU and chassis environment

CPU thermal trip support

Thermal Monitor 2 (TM2) support

PECI

LED

CPU / System Overheat LED

Standby alert LED

Other Features

8-pin 12v DC power connector

ACPI power management

ATX Power connector

Chassis intrusion header

Control of power-on for recovery from AC power loss

CPU thermal trip support for processor protection

Intel Smart Response Technology

M.2 NGFF connector

RoHS

System level control

WOL

Operating Environment

Operating Temperature Range

0°C ~ 60°C (32°F ~ 140°F)

Non-Operating Temperature Range

-20°C ~ 60°C (-4°F ~ 140°F)

Operating Relative Humidity Range

10% ~ 85% (non-condensing)

Non-Operating Relative Humidity Range

10% ~ 95% (non-condensing)
