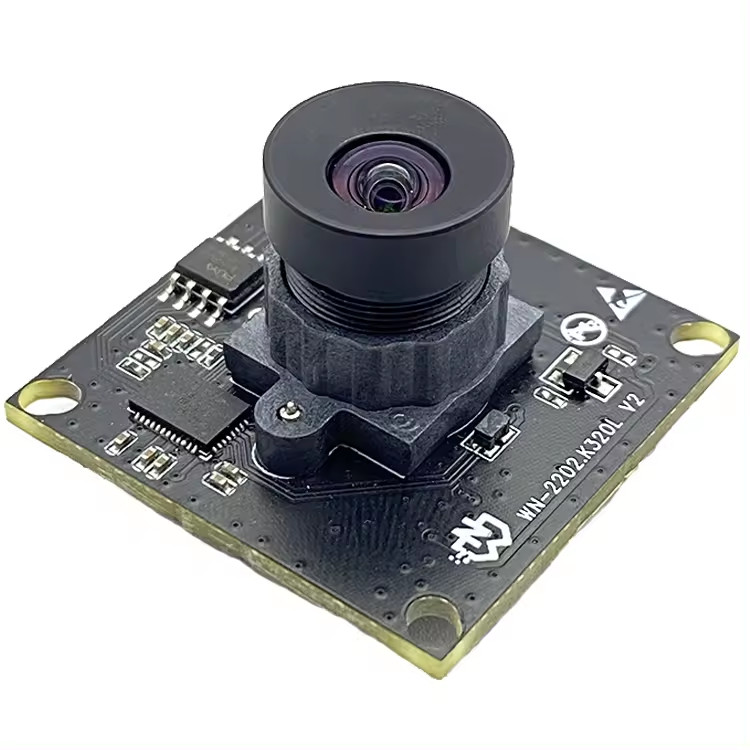

1.0MP 720P USB2.0 Camera Module
this 1MP USB camera module adopts the 1/4.0-inchOV9281CMOS image sensor with maximum resolution of 1280×800at 120fps frame rate. Mini size, 70° FOV, high speed USB2.0 interface, default 1.0 meter USB cable, UVC-compliant, plug and play.Main Parameters
Product Name
1.0MP 720P USB2.0 Camera Module
Product Code
WN-L2202.K320L
Module Size
32*32mm
Image Sensor
1/4.0-inch OV9281 CMOS Sensor
Max. Resolution
1280 H x 800 V
Pixel Size
3.0*3.0μm
Output Format
MJPEG
Field of View
70°
Frame Rate
120FPS
Focus Mode
Fixed Focus/ Manual Focus
Shutter Mode
Global Shutter
Output & Power Supply
High Speed USB2.0
Interface
5 PIN 1.25mm Connector
Controllable Parameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma, White Balance, Backlight Contrast, Exposure
Supported OS
UVC-compliant, Plug and Play for Windows, Android, Linux, Mac OS, etc.
Connection Cable
Default1.0 Meter USB Cable
Supported Resolutions and Frame Rates
Formats
Resolutions
Frame Rates
MJPEG
1280*800
120FPS
1280*720
120FPS
1280*480
120FPS
640*240
120FPS
Working Conditions
Working Voltage
DC 5V
Working Current
190mA
Working Temperature
-20°C ~ 60°C
Storage Temperature
-20°C ~ 85°C
Humidity
80 ~85%
