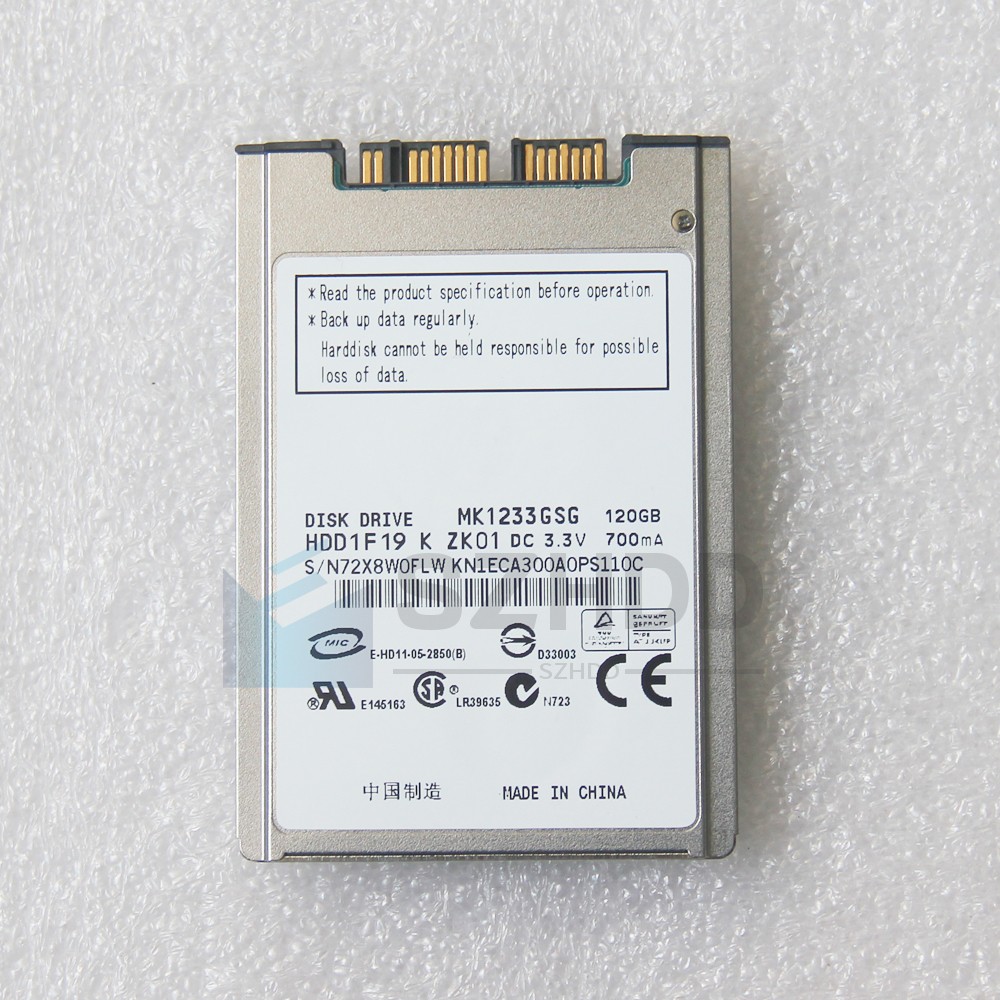

1.8" TOSHIBA 120GB HARD DRIVE MK1233GSG FOR IBM Lenovo PN 45N7990 FRU 45N7991

1.8 Inch 120GB MK1233GSG

Toshiba Storage Device Division strengthens it’s embedded hard disk drive portfolio by launching a new 1.8-inch HDD. The MK1233GSG delivers the capacity and speed needed to upgrade a notebook without compromising battery life or quiet acoustics. The dual platter SATA drive featuring a capacity of 120GB offers a rotational speed of 5400 rpm and a fast media transfer rate of up to 150 Mbits per second. It has also the advantage of 500 G of operating shock and 1500 G of non operating shock.

Weighting only 62 grammes, the new Toshiba HDD is designed to be the perfect drive for individuals and developers desiring a more powerful computer in a compacter form.

Key 120 GB Capacity

Serial ATA (SATA) interface

• Micro-SATA connector
• 5400 rpm

• 16M buffer

Serial ATA (Micro SATA)

Supported interface standards

• ATA-8
• Serial ATA Rev. 2.6

Head/actuator technology

• "Ramp-Load" Technology
• PMR (Write)/TMR (Read)

Shock detectionShock sensor circuit S.M.A.R.T.The SMART command set is supported. Physical parametersNumber of platters2 Number of cylinders134,640 Number of heads4 Bytes/sectorBytes/sector512 Access timesAverage seek time15 msMaximum seek time26 msTrack-to-track seek time3 msTransfer ratesHost3.0 Gbit/sRotational speedRotational speed5,400 rpmBufferBuffer size16mbyteCache

• Read-ahead cache
• Write cache

Reaction timesStart time (Spin-up time, typical)3.5 sStart time (Spin-up time, maximum)20 sRecovery time (from stand-by, typical)3 sRecovery time (from stand-by, maximum)20 sReliability specificationsMTBF600,000 HoursPower-on hours<333 hours/month HoursProduct life5 years or 20,000 POH (whatever comes earlier) Seek error rate1 error per 10^6 seeks Non-recoverable error rate1 error per 10^14 seeks Preventive maintenanceNo preventive maintenance is required Power consumptionStart (Maximum)2.5 WSeek (Average)1.3 WRead (Average)1.3 WWrite (Average)1.3 WLow-power idle (Average)0.4 WSleep (Average)0.13 WStand-by (Average)0.18 Power supplySupply voltage+3.3 V (+/-5 %) Allowable noise/rippleMax. 70 mVMechanical specificationsDrive width54 mmDrive height8.0 mmDrive depth78.5 mmDrive weight0.062 kgDrive orientationThe drive can be installed in all axes (6 directions) TemperatureOperating

• From 5 °C to 55 °C

Non-operating

• From -20 °C to 65 °C

Shipping

• From -40 °C to 70 °C

HumidityOperating

• From 8 % to 90 %

Non-operating

• From 8 % to 90 %

Shipping

• From 5 % to 90 %

VibrationOperating (Maximum)2 G, with 15 - 500 Hz Non-operating (Maximum)5 G, with 15 - 500 Hz ShockOperating (Maximum)500 G, with 2 ms half sine wave Non-operating (Maximum)1500 G, with 1 ms half sine wave Shipping (Maximum)0.7 m free drop with no unrecoverable error. Drive must be packed in Bingo´s original shipping package. Apply shock in each direction of the drive´s three mutual perpendicular axis, one axis at a time. AltitudeOperating

• From -300 m to 3,000 m

Non-operating

• From -300 m to 12,000 m

Acoustic noiseIdle mode (Disk spinning)Max. 18 dBRandom seekMax. 23 dB

It can be used in:

LENOVO IBM Thinkpad x300 x301 T400s T410s

hp Elitebook 2740p 2730p 2530p 2540p

Dell XT1 XT2

Sony Envy 13t TR1 etc.

Fujitsu P1630

Package Included：

1 x 120GB MK1233GSG Hard Disk Drive
