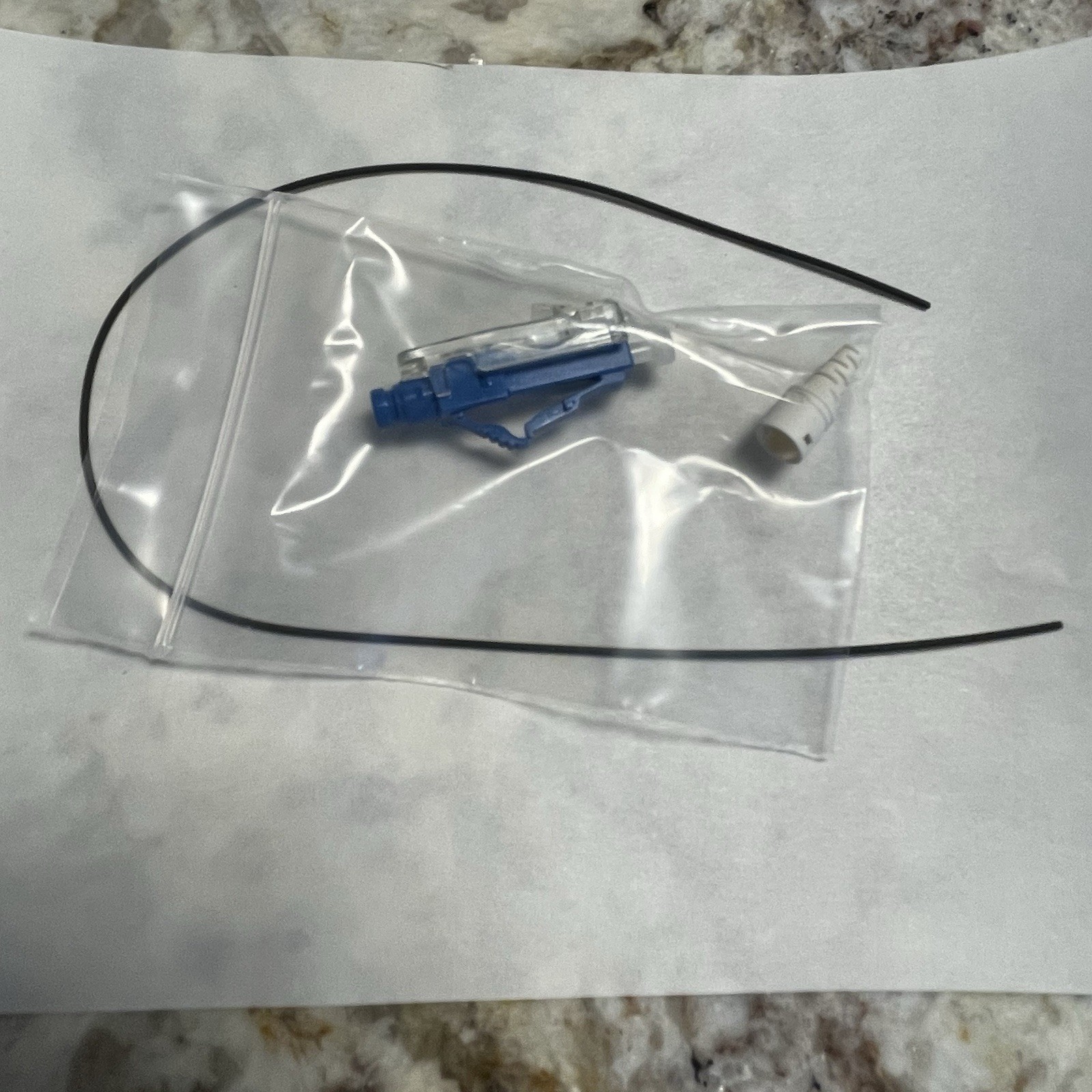

as pictured, surplus to electrical contractor, 1 connector in bag and black sheath, many available
ROClick Connector, LC, OS2, Blue
Brand:Hubbell Premise Wiring
Catalog ID:FCLC900KSM12
Fiber Optic Connectors, ProClick LC, Singlemode, Pre-Polished, 10GHz 900Terminate in Less than 60 Seconds
- RoHS Compliant and Bulk Packed in Recyclable Cartons
Standard Product
SHOW LESSProduct detailsResources and downloadsMediaGeneralAdapter RoHS Indicator
Yes
Item Type
Fiber Termination, No Polish
OEM Brand Name
Hubbell Premise - Insertion loss - 0.5dB (0.35dB typical), 0.75dB max
Optical - Mating durability - 500 cycles <0.1dB changeOptical - Multimode return loss - 35dB Typ, 22dB minimumOptical - Singlemode return loss - 55dB Typ, 40dB minimumEnvironmental - Operating temperature - 0 ºC to +70 ºCRepeatability
0.1 dB
Service Life
500 Type - 900/250 µM
Ferrule Material - Zirconia ceramic, UPC polishFiber Type - SM, Rating0C to RatingsConnectivity
Fiber Optic Connector
Insertion Loss
0.75 dB Max
Return Loss
26
Conductor RelatedFiber Size
125 Micron
Fiber Type
OS2, SM
Certifications And ComplianceEU RoHS Indicator
Yes
Industry Standard(s)
- Telcordia - Insertion loss - 0.5dB (0.35dB typical), 0.75dB max
- Optical - Mating durability - 500 cycles <
- 0.1dB change
- Optical - Multimode return loss - 35dB Typ, 22dB minimum
- Optical - Singlemode return loss - 55dB Typ, 40dB minimum
- Environmental - Operating temperature - 0 ºC to +70 ºC
Repeatability
0.1 dB
Service Life
500 matings
Temperature Rating
0C to 70C
