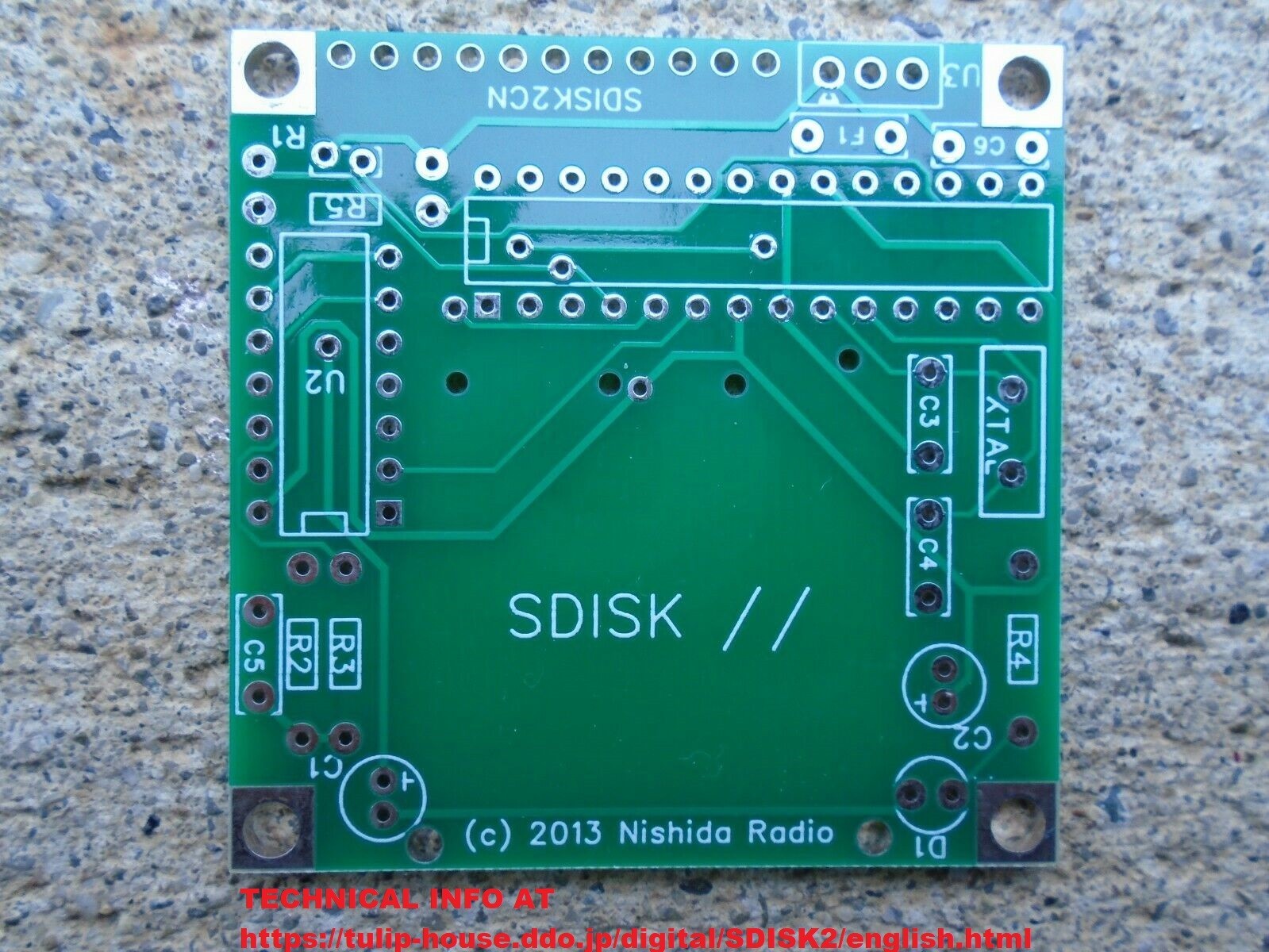

This open source board will let you create a floppy disk emulator SDISK II for the Apple II series computers. YOU MUST GATHER YOU OWN PARTS AND MUST KNOW HOW TO SOLDER SAFELY.
WHAT YOU GET
YOU GET THE PCB BOARD -- EITHER GREEN OR RED, DEPENDING ON AVAILABILITY. IF in doubt, please ask questions FIRST before buying! The voltage regulator (Toshiba TA48033S, TA48M033F, etc. 3-3.6V regulators whose center pin = GND) can be hard to get. You can substitute this voltage regulator with the right pinout and current requirements, etc.
The microcontroller is the Amega328P, and the best/trustworthy places to buy are Digikey or Mouser. For the 74HC125 logic chip, use the 74HCT125 version. which is easier to find (again on Digikey/Mouser), and is 100% compatible with the HCLS125 (old) version.
SD Card has to be SD and SDHC, any low capacity such as under 2GB. It needs to be FAT16 formatted.
SHIPPING: I can ship as a letter domestically within the USA, which will cost only $1. You must ask me for an invoice and tell me that you want to ship as a letter. Shipping as a letter will NOT have tracking and I will NOT be responsible for lost mail!
TERMS:
- NO RETURNS/REFUND
- NO TECHNICAL SUPPORT PROVIDED
IMPORTANT:
The board is sold AS IS and ONLY the board.
STANDARD DISCLAIMER:
I AM NOT RESPONSIBLE FOR YOUR PROJECT IN ANYWAY, THAT IS, ANY KIND OF DAMAGES TO YOUR MACHINE(S)/COMPUTER(S), INCLUDING BUT NOT LIMITED OF TO PHYSICAL, MENTAL, EMOTIONAL, PROPERTY-WISE, OR FINANCIALLY. NOR AM I RESPONSIBLE FOR ANY TECHNICAL SUPPORT. THIS IS JUST LIKE A BREAD BOARD THAT YOU USE WIH YOUR RESPONSIBILITY AND IMAGINATION. You MUST read and understand all the computer electrical characteristics on its peripherals, e.g., expansion slots, etc., before using the ampere you can use! Please research that on the internet! You MUST also understand all electrical characteristics of whatever ICs that you use. Read the datasheets! NO returns or refunds. Please note that the descriptions were provided to the best of quality. Not responsible for any typos.
PLEASE ASK QUESTIONS IF YOU'RE IN DOUBT BEFORE offerDING OR BUYING!
