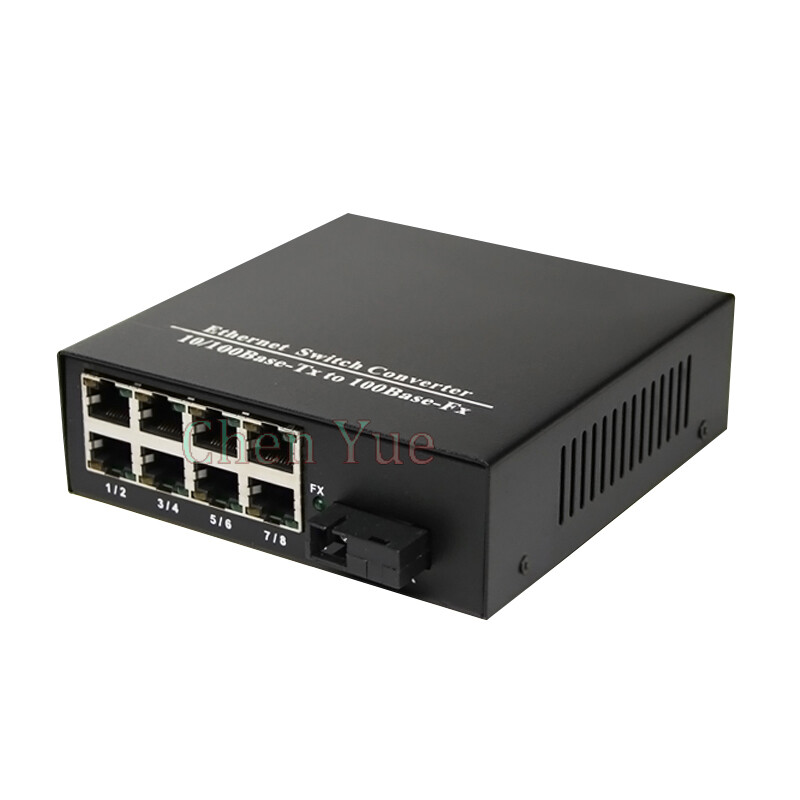

10/100M Fiber Optic Media Converter Singlemode SC 8 RJ45 Port Up to 25km
Description:
Note:My dear friend,thismedia converter is usually used in pair, includingone transceiver and one receiver.
If you just need one, please leave us message that you needtransceiver or receiver. If you need both, please order 2units.Thanks for your support!
Product Description:
10/100Msimplex Mode media converter .The converter mediates between a 10Base-T or 100Base-Tx segment and a 100 Base-FX segment.It is primarily designed for larger,higher speed/bandwidth demanding workgroups that require expansion of the Ethernet network.It can extend the convertional 10M Ethernet or 100M fast ethenet to 20Km-120Km via the fast Ethernet Fiber-optical line.It is high performance,cost effective and flexible solutions for a wide range of applications in the field of LAN campus network.
Features:
1, Provide one fiber connector and 8UTP connector
2, Fully complies with IEEE802.3 10Base-T, IEEE802.3u 100Base-TX, IEEE802.2ab 1000Base-TX, IEEE802.3z 1000Base-FX standard
3, Auto-detection of half/full duplex transfer mode for TX port
4, Auto-negotiation of 10/100Mbps rate and Auto-MDI/MDIX for TX port
5, Provide switch configuration of half/full duplex transfer mode for FX port
6, Extend fiber-optic distance up to 120km with single-mode fiber
7, Easy-to-view LED indicators provides status to easily monitor network activityInternal power supply.
Product parameters:
Follow the IEEE 802.3, IEEE 802.3u and 100Base-FX standards
10/100Mbps data transfer rate
Support full-duplex and half-duplex way of working
Provides eight standard RJ45 interface and oneSC fiber interface
RJ45 interface supports both 10Mbps and 100Mbps auto-negotiation function
RJ45 interface with fast switch function
EMI Certification: CE, FCC, VCCI, C-Tick
Fiber Type Singlemode
SC fiber optic interface type
Wavelength 1310nm 1550nm
Transmission distance up to25Km
Maximum transmit optical power -12.0 dBm
Minimum emission power -19.0 dBm
Sensitivity -34.0 dBm
15.0 dBm optical fiber link loss
LED Description:
LED
Colour
Function
FX 100
Green
Lit when 100Base-FX operation
FX Link/ACT
Green
Lit when fiber cable connection with remote device is good. Bliks when any FX traffic is present
Power
Green
Lit when +5V Power is available
FDX/Col
Green
Lit when full duplex mode is enabled. Blinking when collision is present
TX 100
Green
Lit when 100Base-TX cable operation
TX Link/ACT
Green
Lit when TP cable connection with remote device is good. Blinks when any traffic is present
