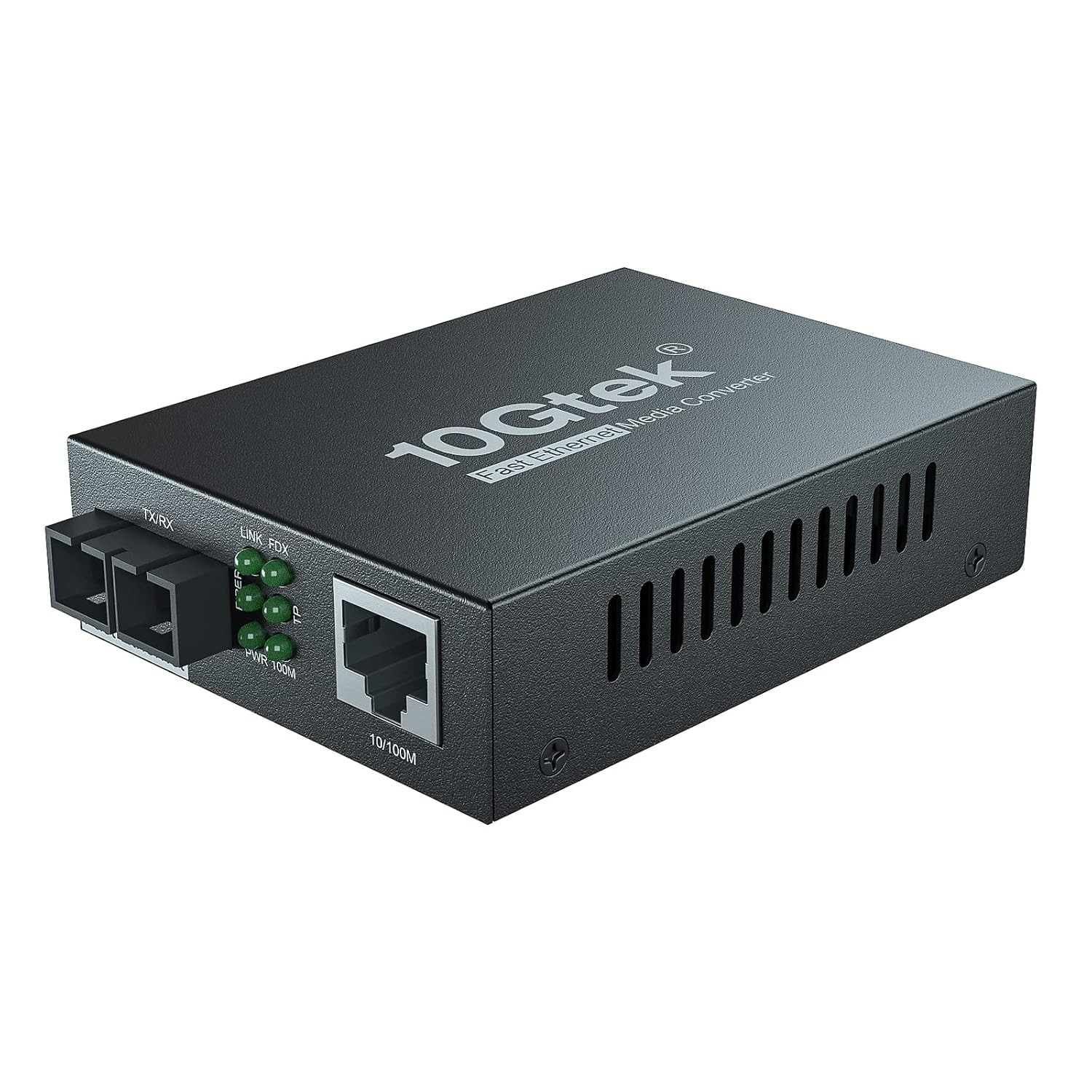

Menu 10/100Mbps Fast Ethernet Media Converter, Single-Mode SC Fiber, up to 20Km, 10/ Features:
128 K's data buffer RAM
Support for low-delay time pure data transmission and full/half-duplex flow control.
Built-in watch-dog timer to monitor any error in internal data exchange Interface:
1 x Ethernet port (RJ45) 10/100Base-Tx
1 x Optical port (Dual SC) 100Base-Fx Optical Port:
1310nm Single mode
Transfer Distance: up to 20km
Connectors: Dual SC connector
Fiber core: 8.3um, 8.7um, 9um and 10um on single mode fiber
Optical Power (dBm): -15~ -3
Receiving Sensitivity (dBm): ≤-32 Ethernet Port:
In accordance with Ethernet standards IEEE802.3 10Base-T, IEEE802.3u 100Base-T and 100Base-FX
Available speed: auto-detective 10/100Mbps Full-Duplex and Half-Duplex auto-negotiation
Connectors: RJ-45 connector; MDI/MDI-X connection auto-sensing LED Indicators:
FX, TX, Link/Act(Left/Right), FDX, PWR
FX: Light on when fiber speed is 100Mbps, while “OFF” means the rate is 10 Mbps
TX: Light on when TP speed is 100Mbps, while “OFF” means the rate is 10 Mbps.
Link/ACT: Left side is indicate for fiber port link/act and right side for TP,light flashing when data transmitting and receiving
FDX: Light on when TP full-duplex mode is active,light off when TP half-duplex mode is active
PWR: Light on when DC power on, else light off Specifications:
Output voltage: AC 220V or DC5V 1A
Power dissipation: ≤1 watts Housing: Metal enclosure
Volume: 94x70x26mm (LxWxH) Operating Temperature: 0°C to 60°C
Storage Temperature: -20°C to 70°C
Humidity: 5% to 90% RH Checklist:
Before you installing the Converter,verify that the package contains the following:
1.The Ethernet Media Converter
2.AC/DC Power Adapter
3.User’s Manual
- Optical Port: 100Mbps, Dual SC singlemode fiber, support 100M Ethernet.
- RJ45 Port: CAT5E/CAT6 10M/100M, Full Duplex or Half Duplex; Supports MDI/MDI-X auto crossover.
- Complies with IEEE IEEE 802.3/802.3u/802.3af.
- Status LED's for TX, FX LINK/ACT, POWER, FDX to easily monitor network status.
- Supports wide temperature range from 0°C to 60°C.
Item Specification - Package Dimensions 10 x 4.61 x 2.28 inches Item Weight 0.01 ounces Item model number A7S1-33-1FX1TX-H-SC20
Dimensions Shipping Returns Additional Info - Product Dimensions: 2.28 inches x 10.0 inches x 4.61 inches. Weight: 0.01 oz
