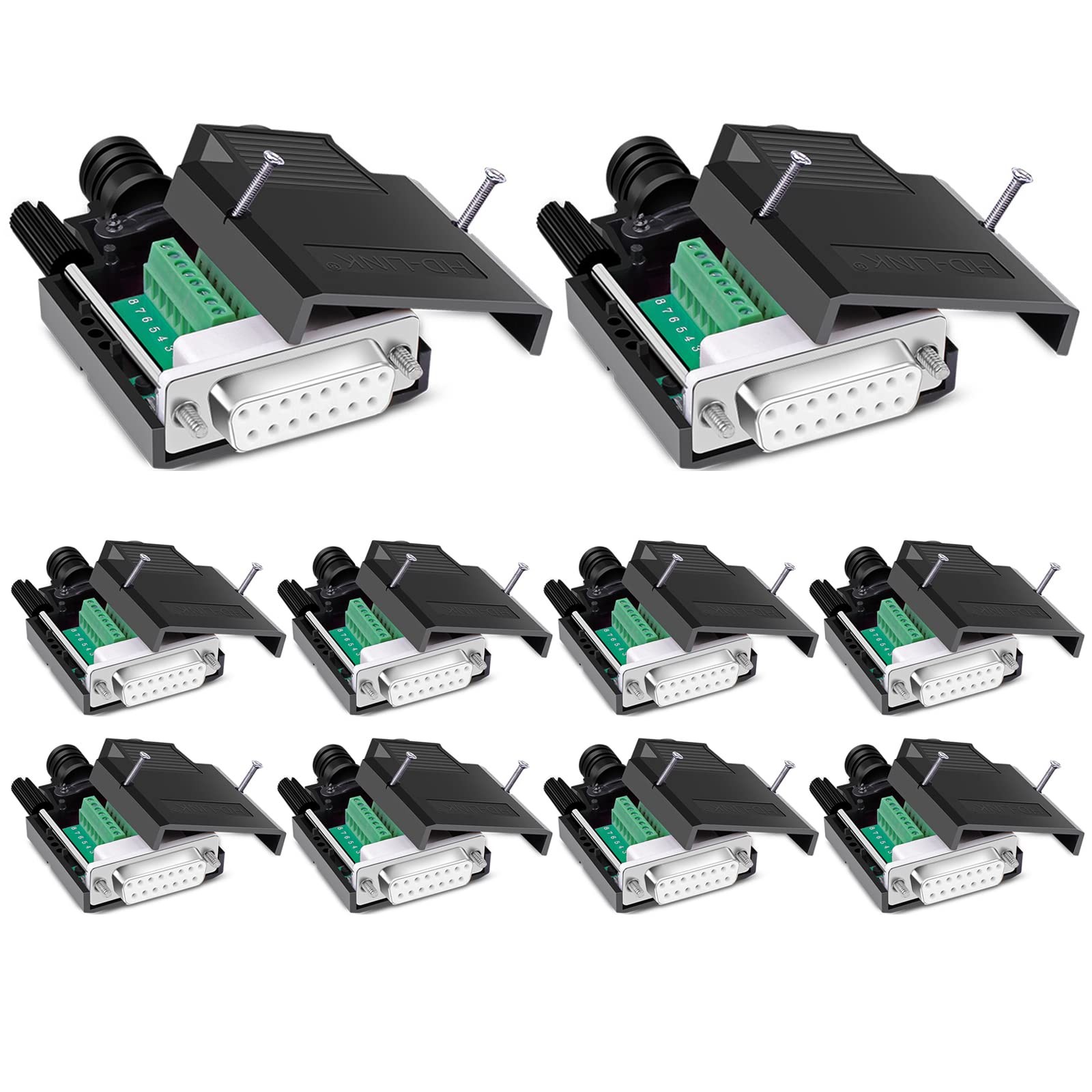

✨ 10PCS DB15 Solderless Connector, RS232 D-SUB Serial to 15-pin Port 16mm Thinner Terminal Female Adapter Breakout Board with Case Long Bolts Nuts ✨🔍 Product Overview

These DB15 Female Solderless Connectors are used to terminate the connection type of a cable and facilitate commissioning equipment of project. They can easily be connected to a custom length cable as well as create a custom pinout, creating a permanent and durable connection for all applications. These connectors are made with high-quality materials to ensure durability and a long life.
Technical Specifications:
Name: 16mm Thin DB15 solderless module
Plug type: Female
Accessories: housing, screw, card line buckle
Connector material: pure copper plated joint
Material: Copper
Housing material: environmentally friendly PP engineering materials
Shell type: Screw lock
Pin Pitch: 3.81mm/0.15in
Cable Specification: 28-16 AWG/0.15-1.5mm2
Torque: 0.2Nm (1.7Lb-In.)
Opening size (cable port): 10.5mm/0.41″
Thickness: 16mm/0.63″
Application: tax control machine, digital camera, PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation, etc.
Size: 55 mm×43 mm×16 mm/ 2.17″×1.69″×0.63″
Package includes:
10 x DB15 16mm Female Solderless Connectors
10x cable pressing plate
20x Lock screws
20x Long bolts
10x 5mm tail pipe
10x 6mm tail pipe
10x 7.5mm tail pipe
10x 8.5mm tail pipe

🔥 Key Features

• DURABLE: Pure copper plated joints, fine solder joints, resistance to plug, and good to ensure high-quality, durability and a long life. The outer casing is made of environmentally friendly PP engineering material, which is soft and durable.
• No Soldering Required. Adopt environmentally friendly insulated terminal block. Just use a small screwdriver to open up the terminal blocks, slide in your stranded or solid-core wire, and re-tighten.
• SCREW LOCK: The shell is locked with screws and nuts, which can avoid the disadvantages of not closing the shell tightly or large gaps.
• RELIABLE: Each product is equipped with a crimping ring, 5mm, 6mm, 7.5mm, 8.5mm 4 different sizes of tail pipe. Make sure that the cable is pulled in use without causing dropped wires or poor .
• WIDELY APPLICATIONS: It can connect all kinds of serial devices. Such as computer and tax control machine, digital camera, PLC, PDA, MODEM, set-top box, barcode machine, industrial instrumentation and other equipment for communication.
