About this item

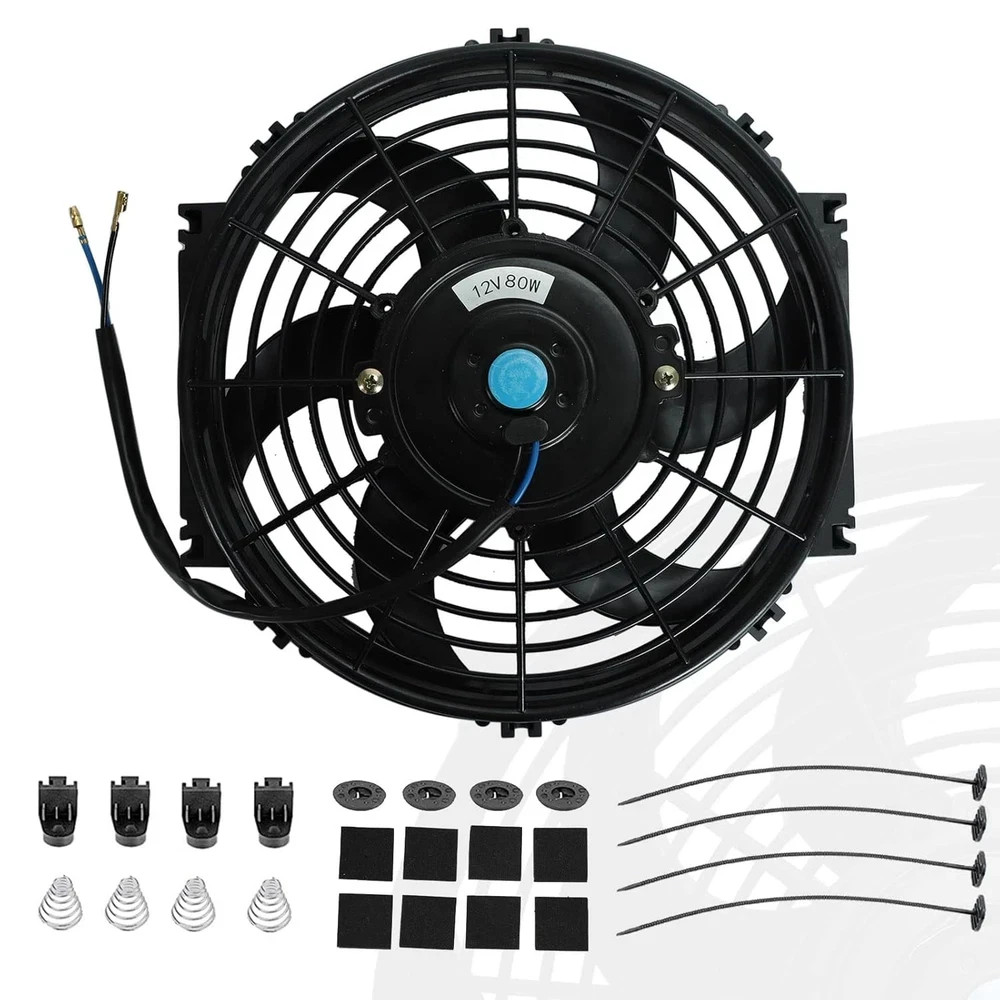

• HIGH-PERFORMANCE:6 Blades 12V 80W 10 Inch radiator engine cooling fan with mount brackets and tie straps kit.Maximum Fan CFM=800 CFM, Maximum Fan RPM=2400+10% RPM.Overall Diameter (in): 11.42''.Thickness (in): 2.536''.Amp Draw: ≤6Amp
• DESIGN:Slim design provides excellent engine bay clearance.Good heat resistance and corrosion resistance ensure a long service life for the electronic radiator
• PUSH/PULL:electric radiator cooling fan is reversible. It can be used as a puller
• WIDE USE:Universal radiator cooling fan fit various vehicles and engines. It depends on the size of your radiator. Auxiliary equipment for cooling the entire engine compartment, including radiators, air conditioning systems, intercoolers, oil systems, and transmissions
• SERVICE GUARANTEE:We put the instructions on the main picture for reference. You can contact us if you have any questions

Product descriptionSPECIFICATION AND FITMENTFitment

• It's a universal fit cooling fan.Make sure the fan size is correct with your original

How to choose the right fan size？

Step 1:Confirm the width and depth of your radiator

Step 2:Compare the fan diameter and depth with radiator

Step 3: Choose the right size fan

Universal Slim Fan Push Pull Electric Radiator Cooling Mount Kit

This is a great electric fan fits for radiators, oil coolers, transmission coolers, condensers and more. These powerful electric fans work with 12-volt electrical systems and draw 6 to 10 amps, depending on the size. We have size 7", 10", 12", 14", 16", and different colors to choose from.

7" Fan Maximum CFM: 800 CFM

10" Fan Maximum CFM: 800 CFM

12" Fan Maximum CFM: 800 CFM

14 " Fan Maximum CFM: 900 CFM

16 " Fan Maximum CFM: 1000 CFM

Puller Fans & Pusher Fans

• Puller fans mount on the engine back side of the radiator core and pull air through the radiator core. The fresh airflow is pulled through the grille, then pulled through the core, and exits out of the back side of the radiator.
• Pusher fans mount on the front grille side of the radiator core and push air through the radiator core. Fresh airflow enters through the grille, then is pushed through the radiator core and exits out the back side of the radiator.

Puller Fans & Pusher Fans

Function Of Electric Fan

Fan Mounting Kit

Wide use

Installation:

• Step 1: Open the hood of the car and remove the intake pipe above the cooling fan, so that the cooling fan can be removed smoothly.
• Step 2: The cooling fan and the air conditioning fan are located above the fan frame, with a total of four corners, one screw at each corner. Use a professional tool to unscrew the four screws. When the screws are all unscrewed, we can remove the cooling fan from the car.
• Step 3: Install the new cooling fan correctly on the new fan frame, and tighten and secure the four screws at the four corners.
• Step 4: Start the engine test and the fan can run normally. After checking the error, install the intake pipe to the correct position.
• Step 5: Tighten the fixing screws of the intake pipe, close the hood, and test to ensure that the new radiator fan is working properly and all operations are completed.
