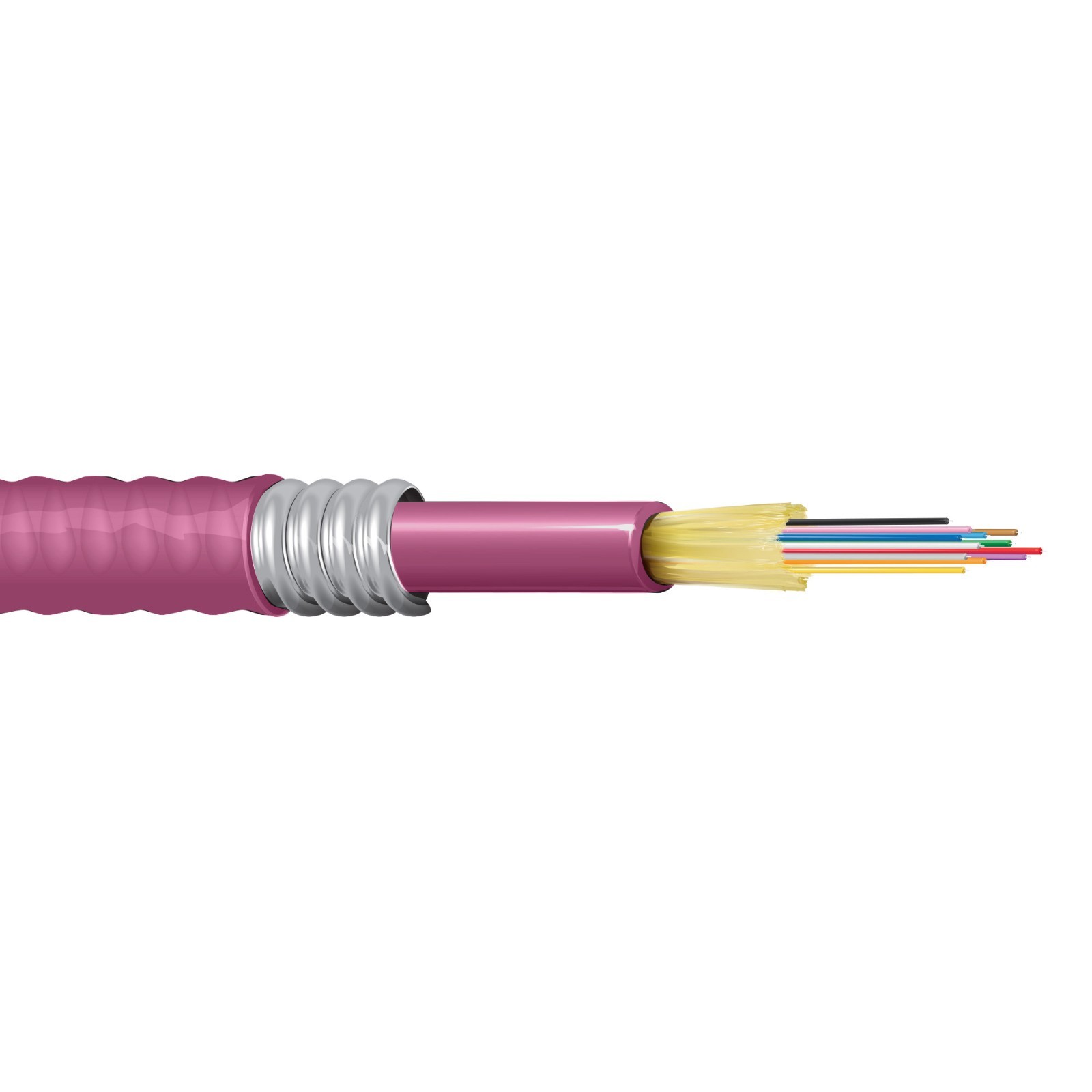

100' Belden FI4D012A9 12 Fiber Aluminum Interlock Plenum OM4 Distribution Cable Click Thumbnails to EnlargeDESCRIPTION
• Belden FI4D012A9FX Indoor OM4 Distribution Tight Buffer 12 Fiber OFCP Aluminum Interlocked Armor Non-Unitized Erika Violet Jacket
OUTER JACKET SPECIFICATIONS
• Strength Member: Aramid Yarns
• Jacket Material: Polyvinyl Chloride (PVC)
• Color: Erika Violet
• Number of Ripcords: 1
MECHANICAL CHARACTERISTICS
• Minimum Bend Radius During Installation: 20x Cable O.D.
• Minimum Bend Radius During Operation: 10x Cable O.D.
• Maximum Tensile Strength During Installation: 660 N (150 lbf)
• Maximum Tensile Strength During Operation: 200 N (45 lbf)
• Crush Resistance: 440 N/cm
TEMPERATURE RANGE
• Installation Temperature Range: 0°C to +60°C
• Operating Temperature Range: 0°C to +70°C
• Storage Temperature Range: -40°C to +70°C
STANDARDS
• Environmental Suitability: Indoor
• Sustainability: CA Prop 65, Product Lens, Environmental Product Declaration (EPD) Available
• Flammability / Reaction to Fire: OFCP, FT6
• ICEA Compliance: S-83-596
• European Directive Compliance: EU Directive 2015/863/EU (RoHS 2 amendment), REACH, EU Directive 2011/65/EU (RoHS 2), EU Directive 2012/19/EU (WEEE), REACH: 2020-01-16
PRODUCT SPECIFICATIONSPart Number FI4D012A9Fiber Count 12Fiber Type OM4Fiber Core Diameter50/125 µmBuffer MaterialPVCBuffer Diameter 900 µmFiber Color CodingTIA-598-DNominal Diameter (inch)0.230Number of Ripcords 1Weight (lbs)108
