Description
We will send out SFP with our default code- Cisco/Mikrotik/Small brand compatible .
Notes: Cisco 2/3/4/5 Series
(For example Cisco 2960 is belong to 2 series) need special code, You need leave us message.
All following brands can be compatible, If your switch is belong to following brands, Please leave us a message ,Thanks !
Description

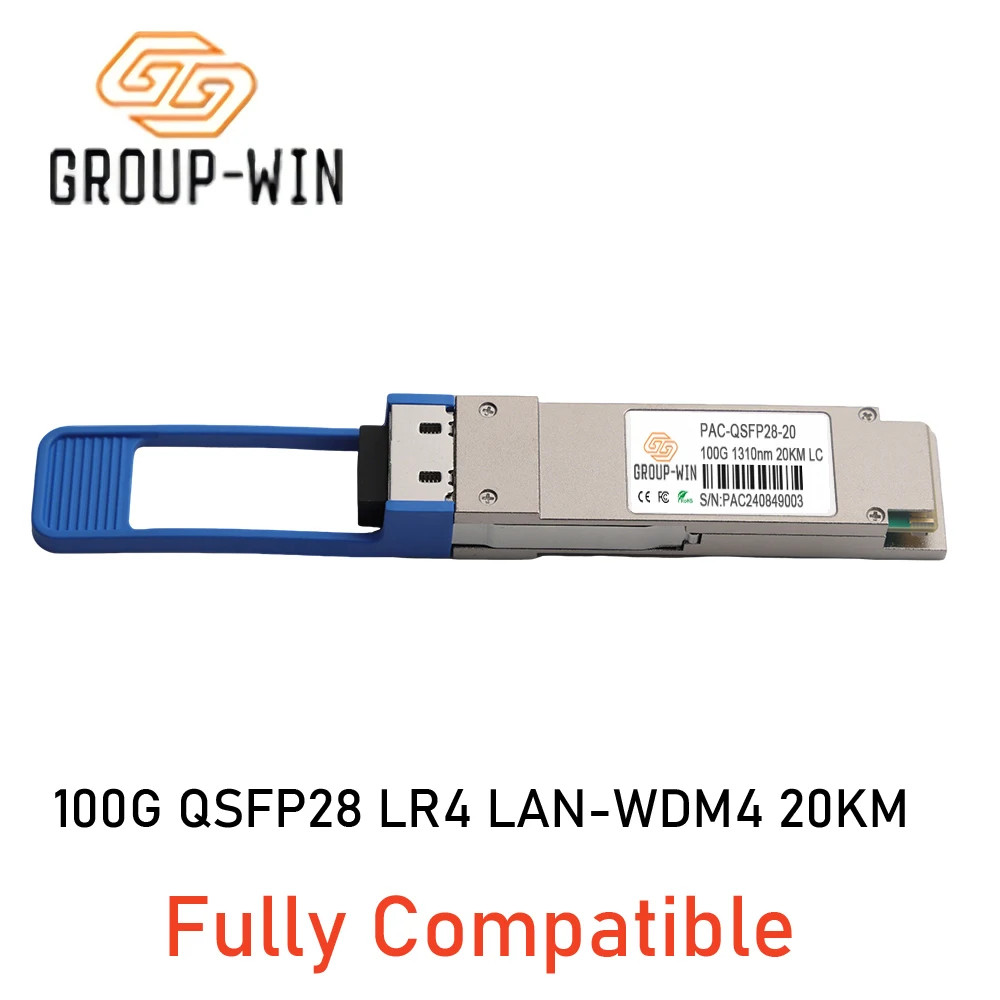

QSFP28-100G-LR4 Duplex LC 100GBASE-LR4 1310nm 20km 100G QSFP28 LR4
The 100G QSFP28 20km optical transceiver integrates the transmit and receive path onto one module. On the transmit side, four lanes of serial data streams are recovered, retimed,and passed on to four laser drivers, which control four electric-absorption modulated (EMLs) with 1296, 1300, 1305, and 1309 nm center wavelengths. The optical signals are then multiplexed into a single-mode fiber through an industry-standard LC connector.On the receive side, four lanes of optical data streams are optically demultiplexed by an integrated optical demultiplexer. Each data steam is recovered by a PIN photodetector and transimpedance amplifier, retimed, and passed on to an output driver. This module features a
hot-pluggable electrical interface, low power consumption, and 2-wire serial interface.
Features: Duplex LC receptacle optical interface
Single +3.3V power supply
Hot-pluggable QSFP28 MSA form factor
AC coupling of CML signals
Transmitter: cooled 4x25Gb/s LAN WDM EML TOSA (1295.56, 1300.05, 1304.58, 1309.14nm)
Receiver: 4x25Gb/s PIN ROSA
Low power dissipation (Max: 4W) 20km Distance over Single Mode
Built in digital diagnostic function
Operating case temperature range:0℃ to 70℃
Compliant with 100GBASE-LR4
I2C Communication Interface QDR and DDR interconnects
100G Datacom connections
Standards
Compliant with IEEE 802.3ba
Compliant with QSFP28 MSA hardware specifications
Compliant with RoHS
