OUR OPTIONS 100G QSFP28 to 4x25G SFP28 DAC For Cisco-Coded QSFP28 to 4 x SFP28 Intel -Coded ITEM DESCRIPTION

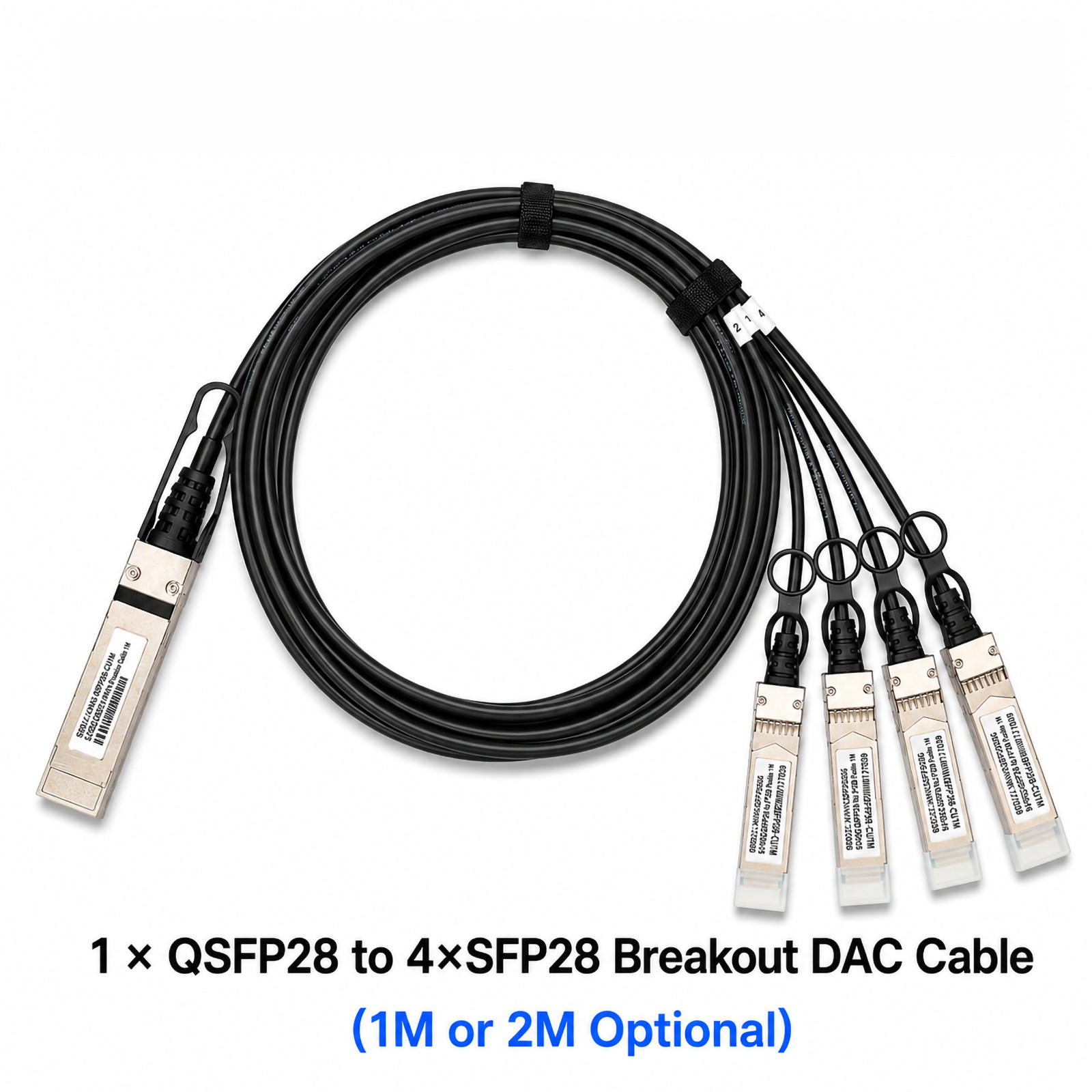

This 100G QSFP28 to 4×25G SFP28 Passive Breakout Direct Attach Copper Cable connects one supported 100G QSFP28 switch port to four separate 25G SFP28 server or network adapter ports.
The large QSFP28 connector is programmed with Cisco compatible EEPROM coding. The four smaller SFP28 connectors use Intel EEPROM coding and are individually labeled 1, 2, 3 and 4 for easier channel identification.
This cable uses different third-party compatibility programming at each end:
• QSFP28 end: For Cisco 100G QSFP28 equipment
• Four SFP28 ends: For Intel 25G SFP28 TO FOUR INDEPENDENT 25G LANES
The QSFP28 connector carries four independent 25Gbps lanes from a supported 100G port.
• 1 × 100G QSFP28 connector
• 4 × 25G SFP28 connectors
• Up to 100Gbps total line rate
• Up to 25Gbps per SFP28 One 100G QSFP28 connector to four 25G SFP28 connectors
• Up to 25Gbps per branch
• Up to 100Gbps aggregate bandwidth
• Cisco Compatible EEPROM on the QSFP28 switch end
• Intel EEPROM on all four SFP28 ends
• Four branches individually numbered 1、2、3、4
• Passive 30AWG Twinax copper construction
• No separate optical modules or fiber patch cables required
• Available in 1M and 2M overall One 100G switch port to four 25G server ports
• Top-of-rack switch to multiple servers
• Data center server aggregation
• 25G network adapter connections
• Enterprise network expansion
• Storage and high-performance computing environments
• Same-rack and adjacent-rack breakout links
Fit For
For QSFP28-End Coding Reference：QSFP-4SFP25G-CU1M / QSFP-4SFP25G-CU2M
For Cisco N9K-C93600CD-GX supported breakout applications
For Cisco N9K-C93180LC-EX supported breakout applications
For Cisco N9K-C9364D-GX2A supported breakout applications
For Cisco C9600-LC-24C supported breakout applications
For selected server or NIC ports accepting the SFP28-end third-party EEPROM identification
For selected white-box or open-code equipment accepting the SFP28-end EEPROM The switch-side QSFP28 port must support 100G to 4×25G breakout operation.
• Breakout mode must be enabled and configured on the switch before the four 25G links can operate.
• The four smaller connectors are 25G SFP28 connectors, not ordinary 10G SFP+ connectors.
• The four SFP28 ends use Intel-specific coded connectors.
• This cable does not convert unsupported protocols or port speeds.
• You may send the exact switch and network adapter models through Messages before ordering for a compatibility check.
• This is a third-party compatible product and is not manufactured by Cisco or Intel.
Package Includes：1 × 100G QSFP28 (Cisco) to 4×25G SFP28 (Intel) Passive Breakout DAC Cable
SKU#：1 Meter KK.CC.555-CI-1 Net Weight：9 oz Shipping Weight：9 oz
SKU#：2 Meters KK.CC.555-CI-2 Net Weight：13.1 oz Shipping Weight：13.1 oz
