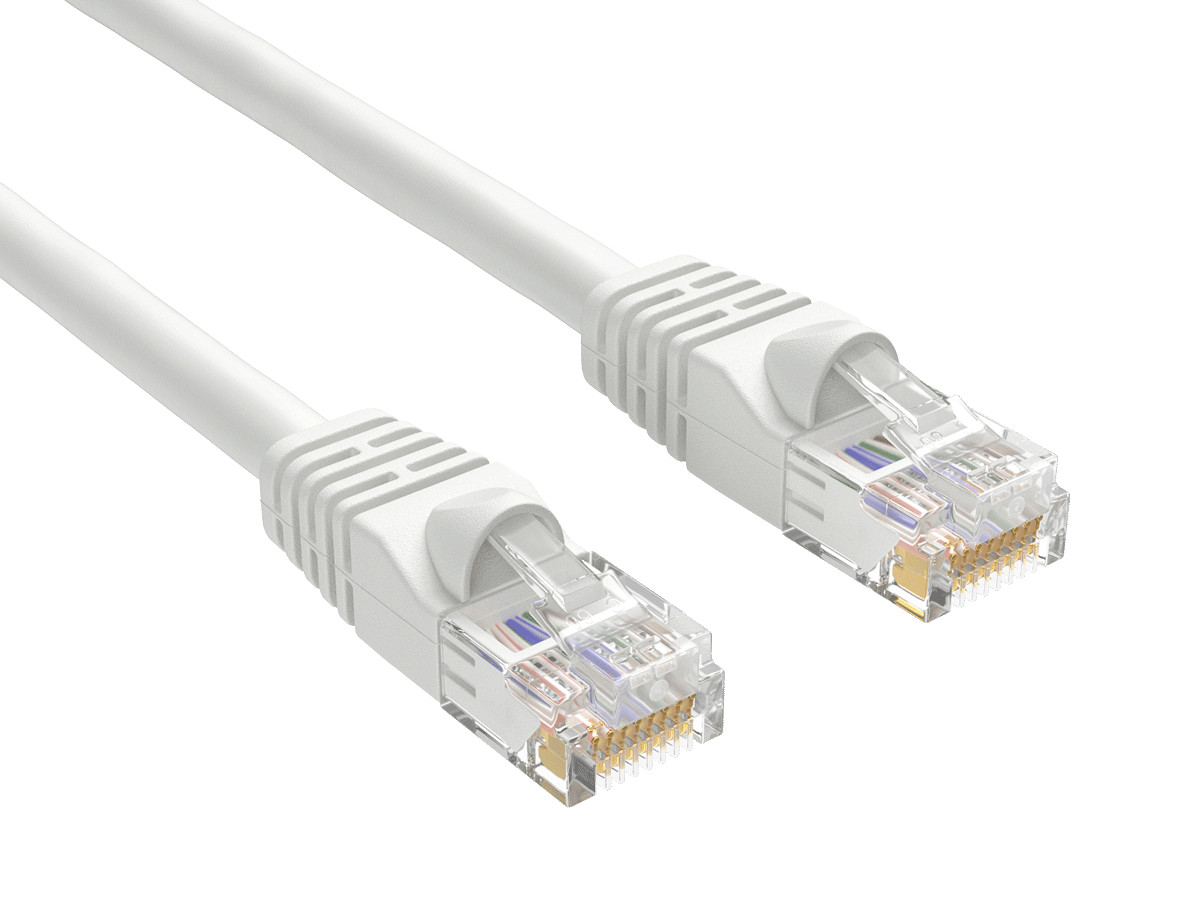

100ft Cat6 Ethernet Patch Cable, 24AWG Bare Copper UTP, 250MHz Snagless RJ45, White
The Cat6 250 MHz UTP snagless patch cable connects RJ45 devices across office, home, and data networks at Gigabit speeds. Built with four twisted pairs of 24 AWG bare copper and a PE cross-filler spline, it meets the 250 MHz Cat6 standard for reliable 1000BASE-T performance and clean signal integrity across network infrastructure of every size.
Both ends terminate in an 8P8C RJ45 modular plug with 50-micron gold-plated contacts and a color-matched molded PVC hood, wired to the T568B standard. The plug seats in any standard RJ45 port on routers, switches, modems, servers, patch panels, and wall jacks, making the cable a direct drop-in for existing cabling.
The cross-filler spline is the core of Cat6 performance. It separates the four pairs to reduce crosstalk and meet the 250 MHz Cat6 standard, supporting Gigabit Ethernet on every length and 10GBASE-T on short runs up to roughly 55 meters. The 24 AWG bare copper conductors keep DC resistance low at 9.38 ohms per 100 meters for stable throughput.
This cable carries stronger third-party validation than most: it is verified to TIA/EIA-568-C.2 and marked UL E305668, CSA 204790, and ETL, along with RoHS compliance. The bare copper conductors meet the requirements for Power over Ethernet, so the same cable powers cameras, access points, and VoIP phones on standard runs.
A snagless molded boot protects the locking tab so connectors slide cleanly through crowded patch panels and cable bundles during moves, adds, and changes. Ten jacket colors, including pink, support structured color-coding for port mapping and keep office racks and home setups organized and serviceable.
The white jacket keeps cabling discreet against light-colored walls and desks and is often used to mark specific zones or workstations in structured & Ordering Information: This Cat6 patch cable works with any RJ45 equipment, including Gigabit switches, routers, modems, NAS units, PoE devices, gaming consoles, and smart TVs, and is backward compatible with Cat5e gear. It is available in lengths from 0.5 ft to 150 ft and in ten colors. For full 100-meter 10G runs, choose Cat6a; for high-density patch panels, choose the slim 28 AWG Cat6.
Product Comparison: Cat5e vs Cat6 Ethernet Patch Cable
Buyers upgrading a network most often weigh Cat6 against Cat5e, since both use RJ45 connectors and support Gigabit Ethernet. The table below summarizes the decision:
Attribute Cat6 (this cable) Cat5e Bandwidth 250 MHz 100 MHz Speed 1 Gbps; 10G on short runs (up to ~55 m) 1 Gbps Crosstalk Control Cross-filler spline separates the pairs No spline; tighter margins Conductor 24 AWG bare copper 24 AWG bare copper PoE Supported, with more thermal margin Supported Best Use New installs, offices, gaming, future-proofing Budget Gigabit runs, existing Cat5e infrastructure Connector RJ45 (8P8C), 50-micron gold contacts, snagless boot RJ45 (8P8C), snagless boot
Choose Cat6 for new installations, higher bandwidth headroom, short-run 10G, and future-proofing.
Choose Cat5e for budget Gigabit runs or matching existing Cat5e is the difference between Cat5e and Cat6?
Cat6 supports higher bandwidth (250 MHz vs 100 MHz for Cat5e) and adds a spline that separates the pairs to reduce crosstalk, giving more reliable Gigabit performance and 10G capability on short runs. Cat5e handles Gigabit but with less margin. Both use the same RJ45 connectors.
Does this Cat6 cable support PoE, PoE+, and PoE++?
Yes. All four pairs are bare copper (not copper-clad aluminum), so the cable carries Power over Ethernet up to PoE++ (90 W) to cameras, access points, and IP phones. Bare copper matters for PoE; copper-clad aluminum runs hotter and can be a fire risk on powered runs.
Is this Cat6 cable compatible with gaming consoles, routers, and standard RJ45 ports?
Yes. The RJ45 8P8C plugs fit any standard port, and it works with routers, switches, PS5 and Xbox consoles, smart TVs, and PCs. It is backward compatible with Cat5e equipment and runs at the highest speed both ends support.
What is a patch panel cable, and can I use this for one?
A patch panel cable is a short patch cord that links a patch panel port to a switch or another panel. Yes, this Cat6 snagless cable works well as a patch panel cable; for very dense 24-port and 48-port panels, the slim 28 AWG Cat6 version saves more channel space.
Which Cat6 cable is best for home versus office?
For home and gaming, a short Cat6 patch cable in a chosen color is ideal for routers, consoles, and smart TVs. For office and structured cabling, the same Cat6 with UL, CSA, and ETL certification suits patch panels and switch runs; for high-density racks, choose slim 28 AWG.
