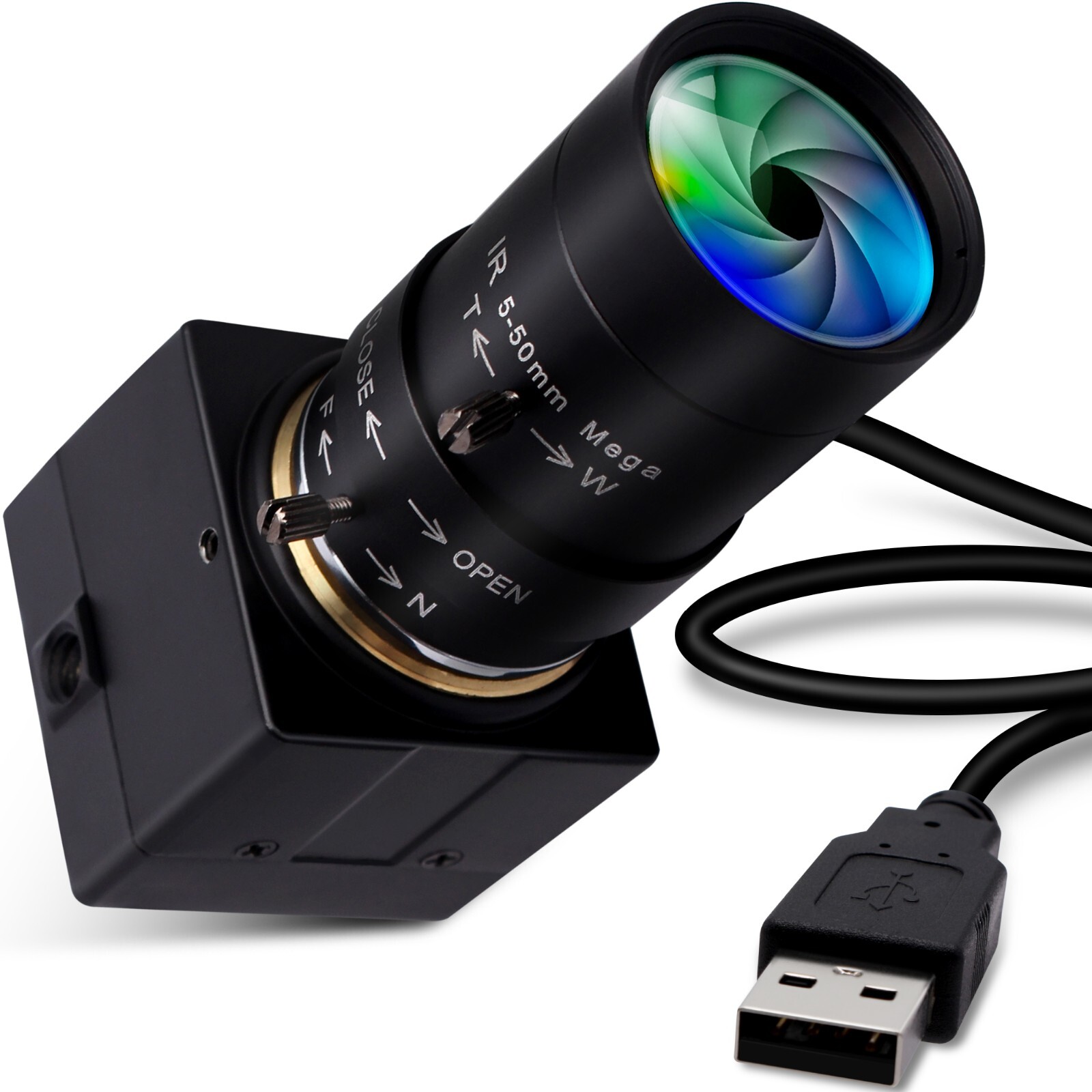

ELP 1080P Video USB2.0 Camera Full HD Sony IMX323 Low illumination Industrial Machine Vision Webam with 5-50mm varifocus lensKey Features:
1. Ultra Low light Camera, Minimum illumination 0.01lux
2.Support otg protocal
4. Max resolution :1920*1080P ,2.0 Megapixel
5. Highly advanced Sony IMX323 Sensor
6. Compression format : H264 /MJPEG / YUV2(YUYV)
7.Equiped with 5-50mm varifocal lens
5-50mm varifocal lens HD.264 Web Camera Sony IMX323 LOW light USB2.0 Camera ELP 1080P 2MegaPixel Webcam with USB support OTG
Specifications:
Model
ELP-USBFHD06H-SFV (equiped 5-50mm varifocal lens)
Sensor
Sony IMX323
Lens Size
1/2.9 inch
Pixel Size
12.8X11.6 mm
image area
2000(H)X1121(V) approx. 2.24 M pixels
Max. Resolution
1080P
Compression format
H264 /MJPEG / YUV2（YUYV）
Resolution & frame
H264:
320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps
MJPEG:
320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 30fps/1280X720@ 30fps/1920X1080@ 30fps
YUV:
320X240@ 30fps /352X288@ 30fps /640X360@ 30fps /640X480@ 30fps /800X600@ 15 fps
S/N Ratio
42dB
Dynamic Range
86dB
Sensitivity
5.0V/lux-sec@550nm
Mini illumination
0. 01 lux
Shutter Type
Electronic rolling shutter / Frame exposure
Connecting Port type
USB2.0 High Speed
Free Drive Protocol
USB Video Class（UVC）
Support OTG Protocol
USB2.0 OTG
AEC
Support
AEB
Support
AGC
Support
Adjustable parameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
Gain, White balance, Backlight Contrast, Exposure
Lens Parameter
5-50mm Varifocal lens
Digital audio
Need customize
LED board power connector
Support 2P-2.0mm socket
Power supply
USB BUS POWER 4P-2.0mm socket
Power supply
DC5V
Operating Voltage
140mA~190mA
Working current
-10～70℃
Working temperature
-20～85℃
Board size /Weight
38X38mm（Compatible 32X32mm）/ about 30g
Cable
Standard 3M / optional 1M,2M,5M
Operating system request
Win7 Win8
Linux 2.6 or above
Android 4.0 or above
Sony IMX323 Webcamera With1920*1080P Box PC Computer Webcam FULL HD USB2.0 With Camera For Android,Linux, Windows, Mac OSApplications:
used for all kinds of machine as below:
machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display, automatic
vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system, teaching system, Interactive system,
automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system, Industrial camera, biological microscope, box inside surveillance, micro HD
surveillance, endoscope, Medical auxiliary equipment, etc.
Effect picture by 5-50mm lens in near distance and far distance
