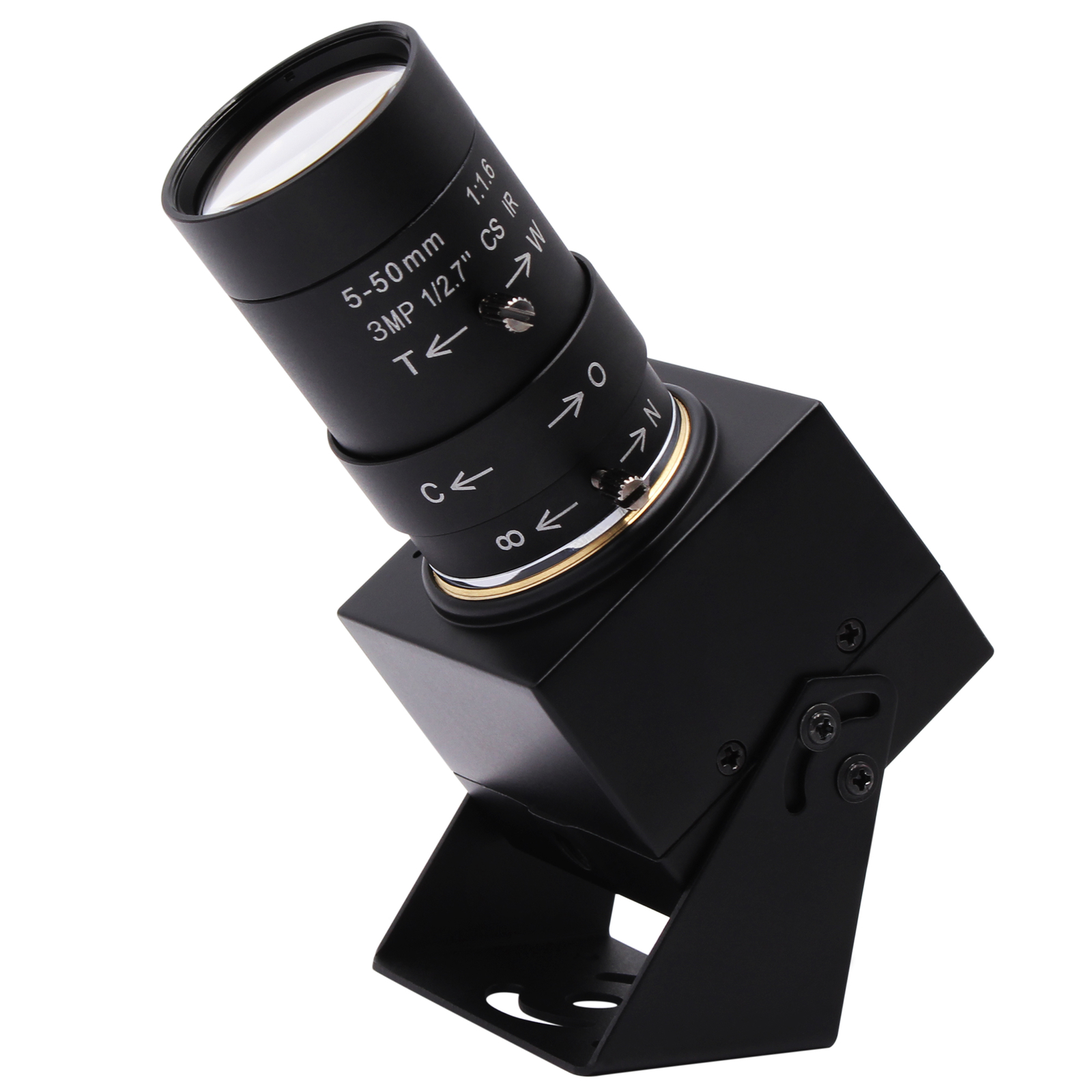

ELP 5-50mm Varifocal Lens USB CameraHigh Speed MJPEG 1080P 60fps/ 720P 120fps/ 360P 260fps WebcamOmniVision OV4689 CMOSCamera With USB For Android Linux Windows
Features:*1080P USB Camera Module with 2.9mm lens*1/3 OmniVision OV4689 Color CMOS Sensor for high quality image*High speed USB 2.0 interface for high resolution PC camera interface.*Super small outline 38*38mm and thin profile for embedded applications*High frame rate– 1920X1080MJPEG@ 60fps ，1280X720 MJPEG@ 120fps，640X360MJPEG@ 260fps*UVC compliance for use in OS Windows, Linux, Android*OTG support*Plug and playSpecification:
ELP-USBFHD08S-UFV(5-50mm)
Sensor
OV4689
Lens Size
1/3 inch
Pixel Size
2.0µm X 2.0µm
image area
5440 µm x 3072 µm
Max. Resolution
1280(H)X720(V)
Compression format
MJPEG / YUV2(YUYV)
Resolution & frame
1920X1080 MJPEG@ 60fps
1280X720 MJPEG@ 120fps
640X360MJPEG@ 260fps
S/N Ratio
38.3dB
Dynamic Range
64.6dB
Sensitivity
1900mV/lux-sec@550nm
Mini illumination
0. 1lux
Shutter Type
Electronic rolling shutter / Frame exposure
Connecting Port type
USB2.0 High Speed
Free Drive Protocol
USB Video Class(UVC)
AEC
Support
AEB
Support
AGC
Support
Adjustable parameters
Brightness, Contrast, Saturation, Hue, Sharpness, Gamma,
Gain, White balance, Backlight Contrast, Exposure
Lens Parameter
Standard 2.9mm lens, other optional
Power supply
USB BUS POWER
Operating Voltage
DC5V
Working current
150mA~185mA
Working temperature
0～70℃
Board size /Weight
38*38mm
Cable
Standard 1M
Operating system request
Win XP/Vista/Win7/Win8
Linux with UVC（above linux-2.6.26）
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVC
Application:
Car and ship control, electronic equipment, oil field equipment, industrial equipment, remote sitemonitoring, environmental monitoring, etc.
