Application

• Hot-pluggable SFP footprint

• Support 10GBASE-T 1000BASE-T

• Compact RJ-45 connector assembly Features SFP-10G-T

• Commercial Temperature Range: 0 to 70°C

• Single +3.3V power supply

• 10 Gigabit Ethernet over Cat6a/Cat7 cable

• RoHS compliant and lead-free

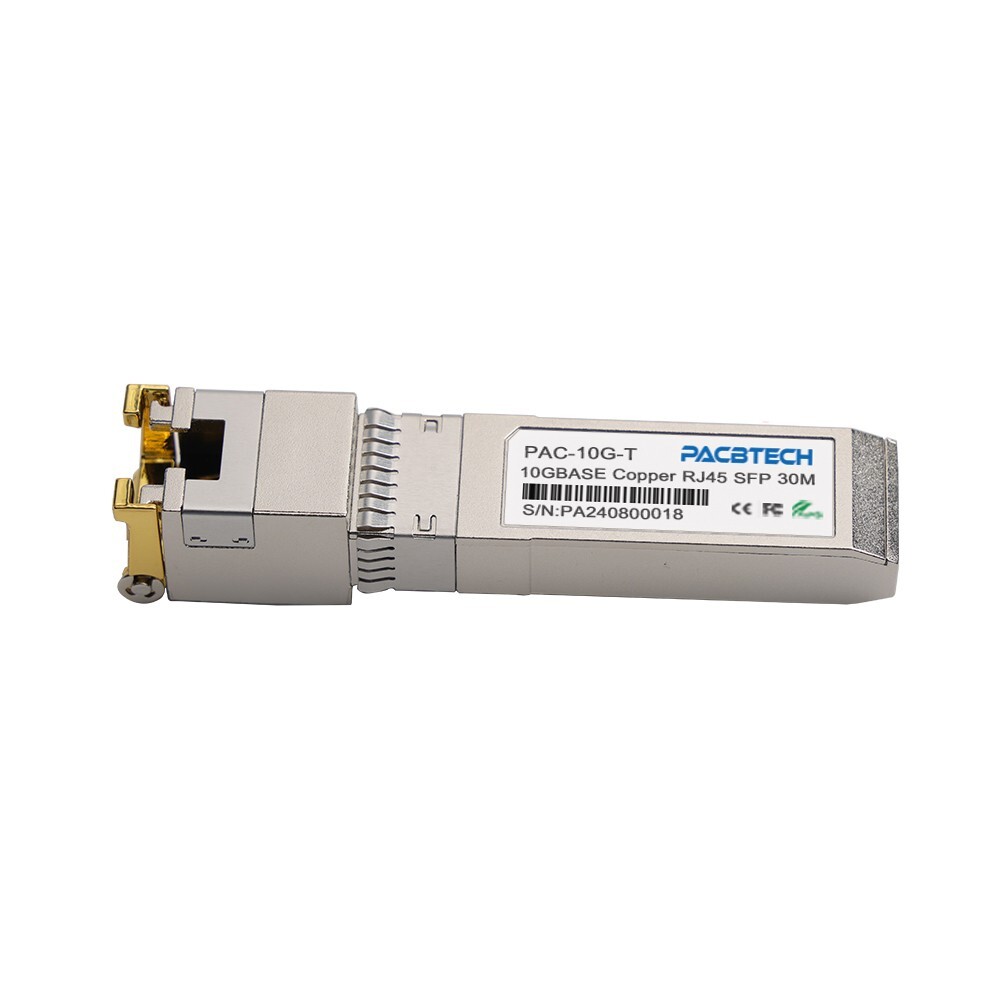

The Copper Small Form pluggable (SFP) transceiver is based on SFP multi-sourcing agreement (MSA). It is compatible with the 10GBASE-T and 1000BASE-T standards as specified in IEEE Std 802.3.The 1000BASE-T physical layer IC(PHY) can be accessed via I2C,allowing access to LIMITED PHY settings and features.

Supports Links up to 30m using Cat 6a/7 Cable SFF-8431 and SFF-8432 MSA Compliant IEEE 802.3az Compliant Low Power Consumption (2.5W MAX @ 30m) Fast Retrain EMI Cancellation Algorithm Low EMI Emissions I2C 2-Wire Interface for Serial ID and PHY Register Access Auto-negotiates with other 10GBase-T PHYs Supports 100/1000Base-T using Cat 5e cable or better MDI/MDIX Crossover Multiple Loopback Modes for Testing and Troubleshooting Built-in Cable Monitoring and Link Diagnostic Features Cable Length Measurements Opens/Shorts Robust Die Cast Housing Bail Latch Style ejector mechanism Unshielded and Shielded cable support 10G BASE-T IEEE 802.3an
