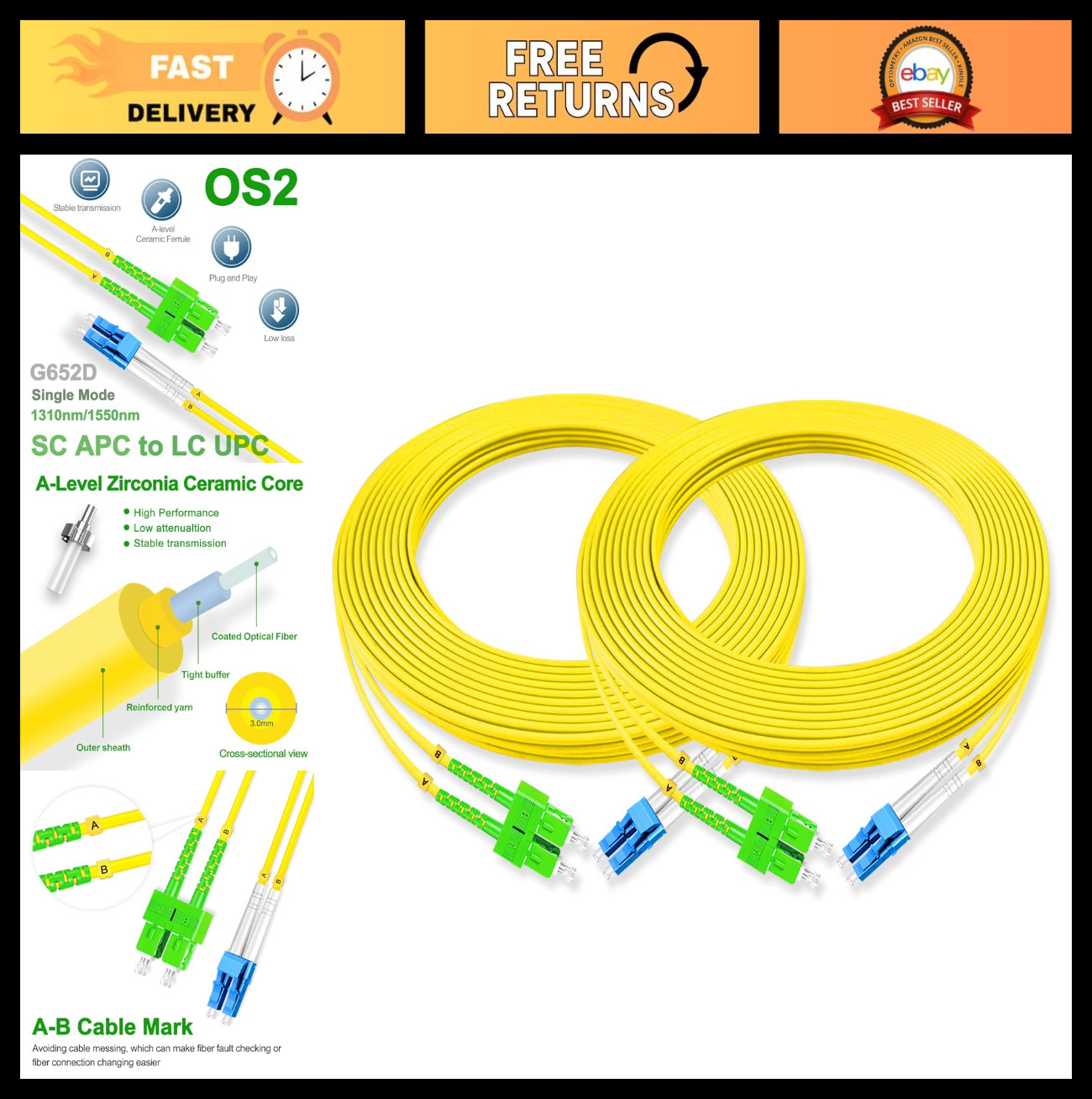

10M Duplex Single Mode Fiber Optic Patch Cord SC APC to LC UPC 9/125μm Cable
Price: US $48.59
High-Performance Fiber Optic Patch Cord - 10 Meter (3.28ft)

Enhance your network connectivity with our premium fiber optic patch cord, designed for optimal performance and reliability.

Main Features:
  • Length: 2Pcs 10 Meter (3.28ft) SC APC to LC UPC Single Mode Duplex
  • Fiber Core: 9/125 μm G652D, supporting 1310nm/1550nm wavelength
  • Performance:
    • ≤0.2dB repeatability and interchangeability
    • ≤0.3dB insertion loss
    • ≥50dB return loss for stable transmission
  • Temperature Range: Operates reliably between -20~70°C
User-Friendly Design:
  • A-B Cable Mark: Easily distinguish fiber connections for quick fault checking and changes.
  • LSZH Fiber Jacket: Buffered to 0.9mm with LSZH material; features a 3.0mm external jacket for enhanced protection.
  • Tensile Strength: Para-aramid yarn provides excellent strength and flame retardancy.
Advanced Technology:
  • Bend-Insensitive: The 9/125μm OS2 fiber reduces attenuation when bent or twisted, improving installation and maintenance efficiency.
Versatile Applications:

This fiber optic patch cord is perfect for a wide range of network connections, including:

  • SFP optical modules
  • Data centers
  • Enterprise networks
  • Telecommunications rooms
    • <
