Features: brand new and high quality

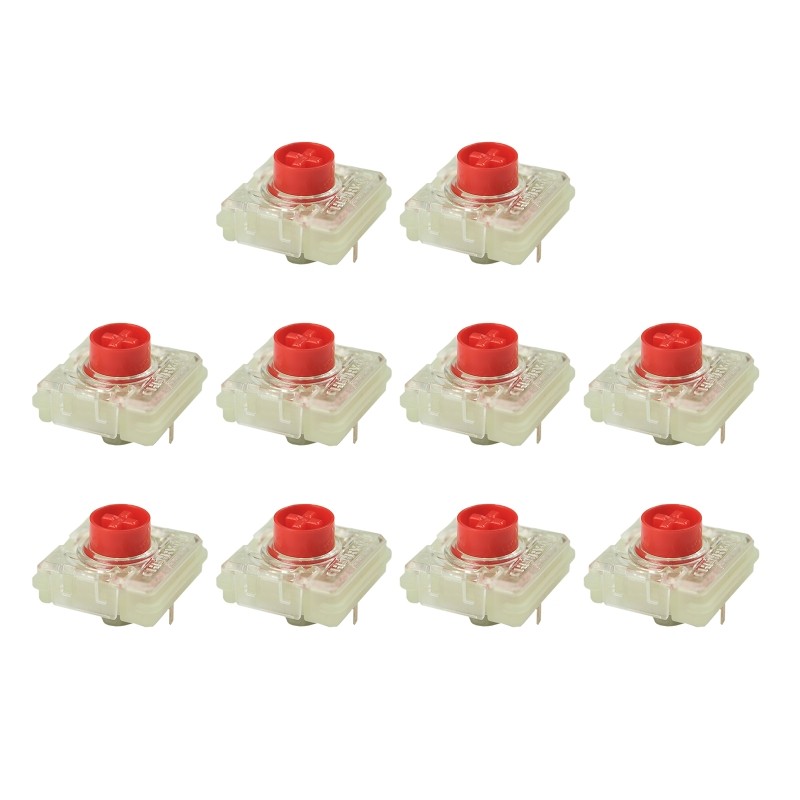

Cherry-MX Low Profile RGB Red switch: Without pressure point, linear light actuation switching function with a defined force of approx. 45 cN without contact response
Designed for use with LEDs (RGB or single colour)
More consistent lighting throughout the keycap due to optimized switch design
Option to use all 16.8 million RGB colours in high luminosity of supply does not include LED)
LEDs directly mounted on the circuit board for cost-efficient, fully automated production
High-precision mechanical switch with very low operating point tolerance
World exclusive Cherry Gold Crosspoint technology
Short bounce for time for high switching frequency (such as for fast typing)
Self-cleaning contacts;Switch resistant to dust and dirt
Over 50 million keystrokes with no loss of qualitySpecifications: Technical Data
for Protection class: IP40
Operation characteristics: Low Profile, linear
Switching voltage: 12V AC/for DC max.
Dielectric strength: 500V / 50Hz
Durability: > 50 million actuations
Contact configuration: Single-pole contact
Actuator travel: 3.2 ± 0.25 mm
Pretravel: 1.2 ± 0.3 mm
Initial force: 40 cN min.
Actuation force: 45 ± 15 cN
Bounce time: typically 1 ms
Minimum lead spacing: 16 mm
Size:approx 2x2x1.8cm/0.79x0.79x0.71in
Lighting: LED, mounted directly on the circuit board
Insulation materials: Thermoplastics
Spring: Stainless steel
Contacts: High-quality gold alloy
Storage Temperature: -40°C to 70°C
Operating Temperature: 5°C to 40°C
Humidity: Storage: average <50% max.Package Includes: 10 PCS x for LP Switchesnote: Pls pay attention: Cherry Low Switch only, not including other things
