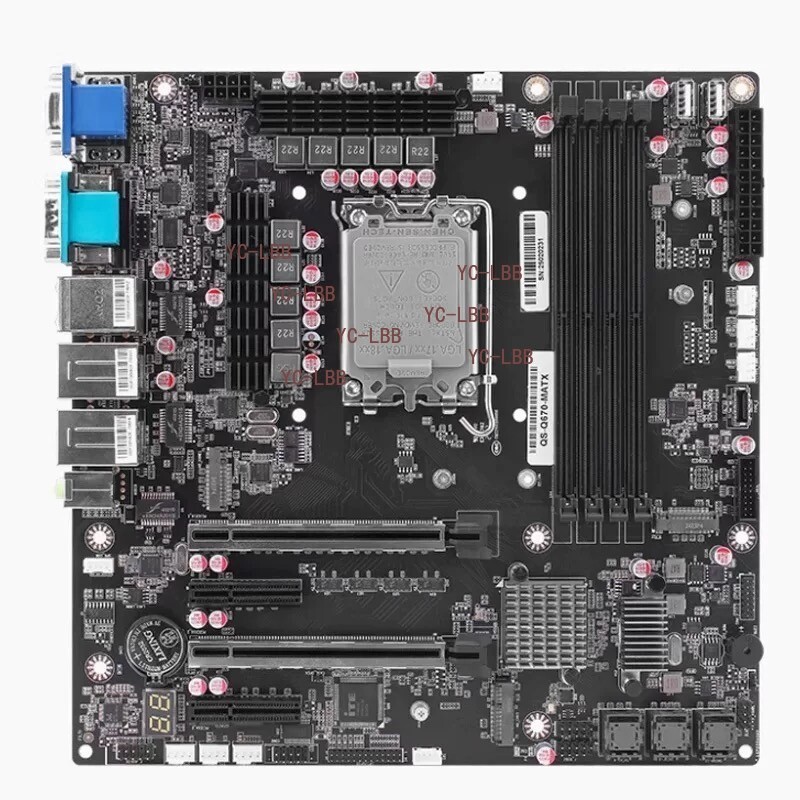

8-layer high-density fiberglass circuit board

Full protection (supports all USB, audio, and network interfaces)

Note:vPro functionality requires an i5-1X500 or higher processor (F-series not supported; requires integrated graphics).

Note:Default support for 125W TDP processors; K-series processors are not recommended.

Note:Recommended to use T-series processors (e.g., 13500T) for energy efficiency and long-term use.

4 × U-DIMM DDR5 dual-channel memory slots

DDR5 default support: 5600MHz (Note:12th Gen processors only support 4800MHz)

Max single stick: 32GB | Max motherboard support: 128GB

12 × SATA3.0 (6Gbps) (expanded via three SFF-8643 interfaces)

1 × Intel i226-LM 2.5G RJ45 port (supports vPro remote management)

PCI-E x16 slot supports various PCI-E graphics/network cards

HDMI 2.0: Supports 4K @ 4096×2160, 60Hz

DP 1.4: Supports 4K @ 4096×2160, 60Hz

VGA: Supports 1080P @ 60Hz

6 × SYS-FAN headers

1 × 8-pin ATX power connector

1 × 24-pin ATX power connector

1 × USB 3.0 socket

1 × Type-C socket

1 × eDP display output

2 × M.2 NVMe PCIe 4.0 x4 slots (2280 & 22110 compatible)

3 × SFF-8643 interfaces (expandable to 12 SATA3.0 drives)

4 × U-DIMM DDR5 slots

2 × PCI-E x16 slots (runs at x8 speed if both are used)

2 × PCI-E x4 slots

2 × USB 2.0 vertical headers (for dongles/boot drives)

1 × USB 2.0 pin header

1 × CNVi Wi-Fi slot (supports AX201/211/401/411 cards only)

1 × VGA

1 × DP 1.4

1 × BIOS reset button

1 × Type-C 3.2 Gen2×2 port (no display support)

1 × Serial port (DB9)

3 × 2.5G RJ45 ports

2 × USB 2.0 ports

4 × USB 3.0 ports

2 × Audio jacks

Solid-state capacitor design

Linux compatible

EFI mode only
