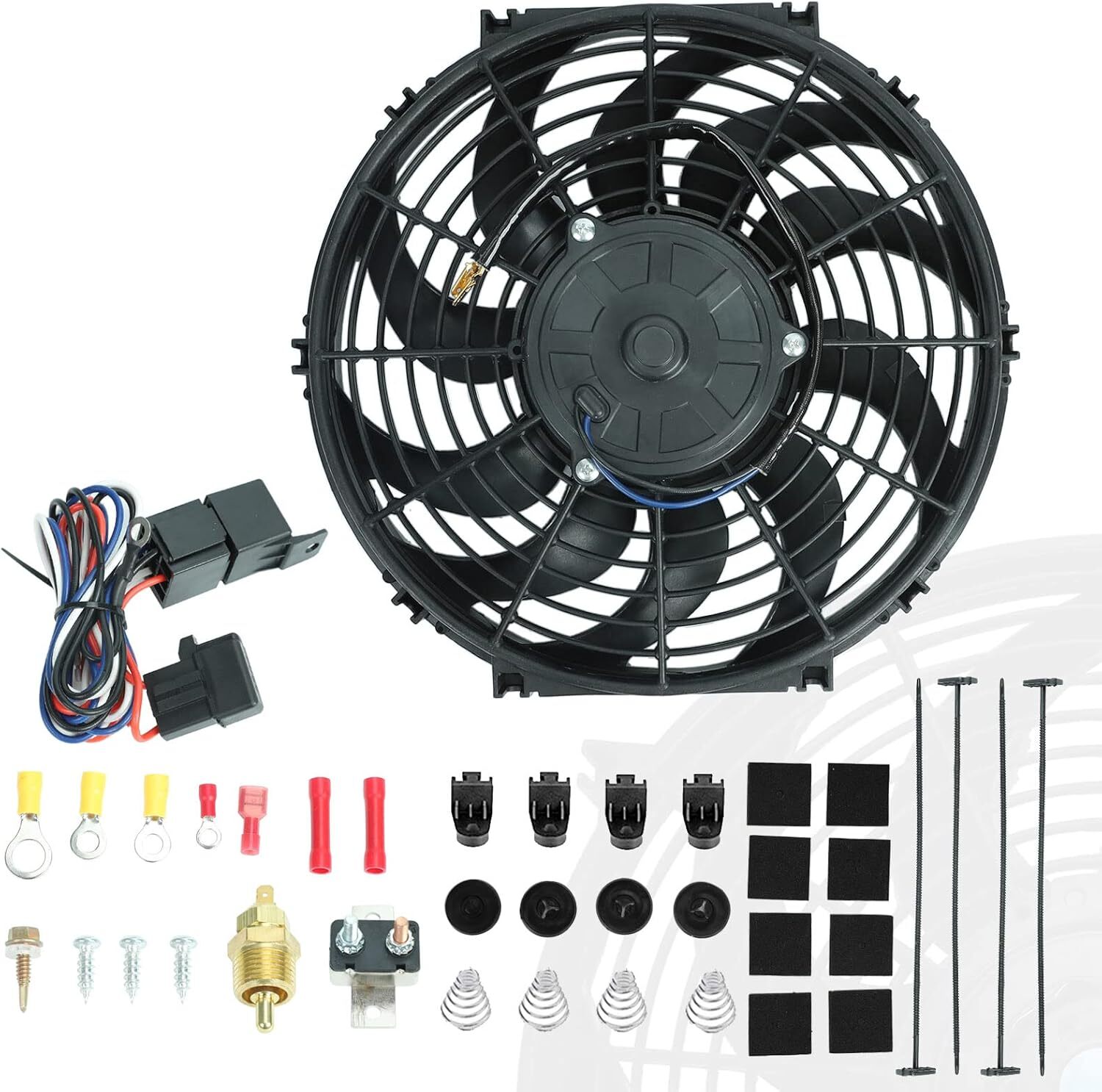

12" Universal Electric Radiator Cooling Fans + Thermostat Relay & Mount Kit

• √ COOLING FAN:10 Blades 12V 80W 12 Inch radiator engine cooling fan with mount brackets and tie straps kit.Maximum Fan CFM=800 CFM, Maximum Fan RPM=2000±10% RPM.Overall Diameter (in): 12.44''.Thickness (in): 2.36''.Amp Draw: ≤7.5 amp.
• √ THERMOSTAT KIT: 180'F turn-on temperature, 165'F turn-off temperature. 3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included
• √ DESIGN:Slim design provides excellent engine bay clearance.Good heat resistance and corrosion resistance ensure a long service life for the electronic radiator.
• √ WIDE USE:Universal radiator cooling fan fit various vehicles and engines. It depends on the size of your radiator. Auxiliary equipment for cooling the entire engine compartment, including radiators, air conditioning systems, intercoolers, oil systems, and transmissions.

12" Universal Electric Radiator Cooling Fans + Thermostat Relay & Mount Kit12" Universal Electric Radiator Cooling Fans

• Blade Size: 12 Inch
• Blade Type: Curved
• Motor Size: 80 Watts
• Maximum Fan CFM=800 CFM
• Maximum Fan RPM=2000±10% RPM
• Amp Draw: ≤7.5 amp
• Overall Diameter (in): 12.44''
• Thickness (in): 2.36''

This is a great electric fan, suitable for radiator, oil cooler, transmission cooler, condenser, etc.

• Low Noise Levels
• Smooth Operation
• High-performance
• Push or Pull Type
• Easy direct installation, require NO modification

THERMOSTAT WIRING SWITCH RELAY KIT

• Universal fit for any automotive application.
• Activates by grounding electric fans at preset temperature.
• 180'F turn-on temperature, 165'F turn-off temperature.
• 3/8" NPT thread-in brass probe w/ 1/2" NPT adapter included.
• Probe typically threads into radiator, water outlet hose or manifold.

HOW TO CHOOSE THE RIGHT FAN SIZE

1:Confirm the width and depth of your radiator

2:Compare the fan diameter and depth with radiator

3:Choose the right size

FUNCTION OF ELECTRIC FAN

Keep the engine cool. It can also preheat and cool faster, extend the service life of water pump, reduce fan noise, improve air conditioning performance, and increase gasoline mileage.

PULLER FANS & PUSHER FANS

• Puller fans mount on the engine back side of the radiator core and pull air through the radiator core. The fresh airflow is pulled through the grille, then pulled through the core, and exits out of the back side of the radiator.
• Pusher fans mount on the front grille side of the radiator core and push air through the radiator core. Fresh airflow enters through the grille, then is pushed through the radiator core and exits out the back side of the radiator.
