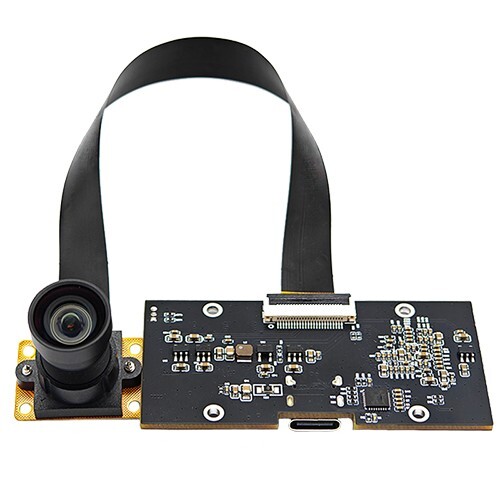

12MP 4K USB3.0 Camera Module
this 12MP USB camera module adopts the1/2.3-inch IMX577 CMOSimage sensor with maximum resolution of 4000H*3000Vat 10fps.FOV：100°, high speed USB3.0 interface, default 1.5 meter USB cable, UVC-compliant, plug and play.
1.Main Parameters
Product Name
12MP 4K USB3.0Camera Module
Product Code
WN-l2403MB-V1.1 577
Module Size
PCB:60*29 FPC:170.5*23
Image Sensor
1/2.3-inch IMX577 CMOS Sensor
Max. Resolution
4000 H x 3000 V
Pixel Size
1.55*1.55μm
Output Format
MJPG, YUV2, NV12, H264, H265
Field of View
DFOV 100°
Lens
EFL: 3.24mm, F/No: 2.7, 4G2P+IR 650nm
Minimum Illumination
0.1 Lux
Focus Mode
Fixed Focus/ Manual Focus
Shutter Mode
Electronic Rolling Shutter
Output & Power Supply
High Speed USB3.0
Interface
Type-C USB3.0
ControllableParameters
Supported OS
UVC-compliant, Plug and Play for Windows, Android, Linux, Mac OS, etc.
Connection Cable
Default 1.5Meter USB Cable
2.Resolutionsand Frame Rates
Formats
Resolutions
Frame Rates
MJPEG
4000x3000(12MP)
10FPS
3840x2160(4K)
30FPS
2560x1440(2K)
30FPS
2592x1944(5MP)
30FPS
2048x1536(3MP)
30FPS
1600x1200(2MP)
30FPS
1920x1080(1080P)
30FPS
1280x720(720P)
30FPS
1280x720 (720P)
30FPS
640x480 (VGA)
30FPS
YUY2
4000x3000(12MP)
8FPS
3840x2160(4K)
15FPS
2560x1440(2K)
30FPS
2592x1944(5MP)
25FPS
2048x1536(3MP)
30FPS
1600x1200(2MP)
30FPS
1920x1080(1080P)
30FPS
1280x720(720P)
30FPS
1280x720 (720P)
30FPS
640x480 (VGA)
30FPS
NV12
4000x3000(12MP)
8FPS
3840x2160(4K)
15FPS
2560x1440(2K)
30FPS
2592x1944(5MP)
30FPS
2048x1536(3MP)
30FPS
1600x1200(2MP)
30FPS
1920x1080(1080P)
30FPS
1280x720(720P)
30FPS
1280x720 (720P)
30FPS
640x480 (VGA)
30FPS
H.264
3840x2160(4K)
30FPS
2560x1440(2K)
30FPS
2592x1944(5MP)
30FPS
2048x1536(3MP)
30FPS
1600x1200(2MP)
30FPS
1920x1080(1080P)
30FPS
1280x720(720P)
30FPS
1280x720 (720P)
30FPS
640x480 (VGA)
30FPS
H.265
3840x2160(4K)
30FPS
2560x1440(2K)
30FPS
2592x1944(5MP)
30FPS
2048x1536(3MP)
30FPS
1600x1200(2MP)
30FPS
1920x1080(1080P)
30FPS
1280x720(720P)
30FPS
1280x720 (720P)
30FPS
640x480 (VGA)
30FPS
3. PIN Definitions
Pin No.
Signal Names
Descriptions
1
VCC
5V Power
2
DP
Data-
3
DM
Data+
4
GND
GND
5
SSPXNI
USB3.0 SSPXNI
6
SSPXPI
USB3.0 SSPXPI
7
GND
GND
8
SSTXN1
USB3.0 SSTXN1
9
SSTXP1
USB3.0 SSTXP1
4. Working Conditions
WorkingVoltage
USB DC5V Supply
WorkingCurrent
470mA
Working Temperature
-20°C ~ 60°C
Storage Temperature
-20°C~ 85°C
Humidity
80 ~85%
