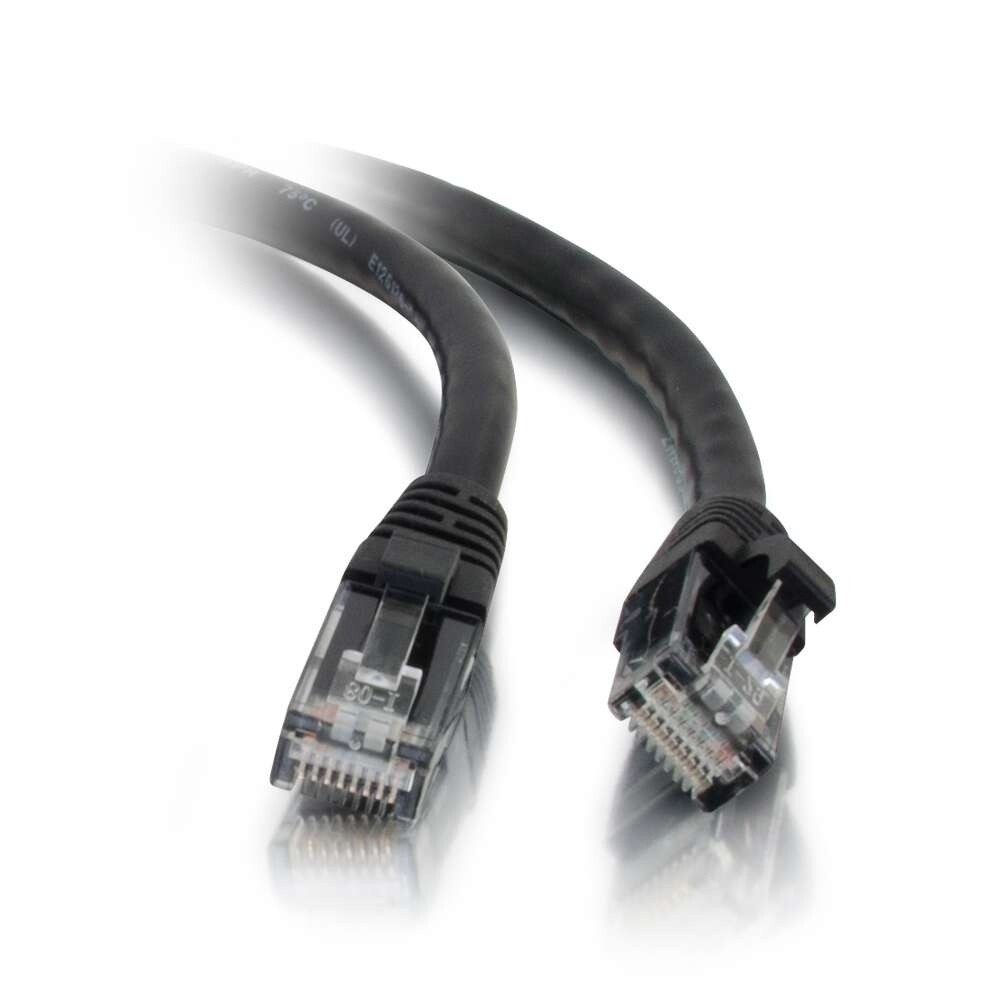

15ft (4.6m) Cat5e Snagless Unshielded UTP Ethernet Network Patch CableCat5e Snagless Patch Cable SeriesFor fast Ethernet networks that require bandwidth-intensive voice, data, or video distribution applications. Meets all Cat5e TIA/EIA standards, and drastically reduces both impedance and structural return loss (SRL). Each of the individual pairs is bonded together to help maintain the twist-spacing throughout the line right up to the termination point. Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels. The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief. Available in a variety of colors to easily color-code your network installation.
Features and Benefits
Snagless design protects clips when plugging and unplugging- Standard RJ45 connectors and unshielded twisted pair wires
- Available in multiple colors to color-code a network
- Available in lengths up to 150ft
Specifications
Dimensions & Measurements
305 mHz
0.21 in (5.3mm)
15 ft (4.6 m)
0.35 lbs (0.2 kg)
24
T568B
Characteristics & Features
Cable Shielding
Unshielded (UTP)
Cable Type
Cat5e
Category Performance Application
Cat5e
Colors
Black
Blue
Gray
Conductor Material
Copper
Conductor Stranding
Stranded
Connector 1
RJ-45 Male
Connector 2
RJ-45 Male
Connector Hood Material
PVC
Connector Type
Booted
Snagless
Jacket Rating
Standard Non-Rated
Jacket Material
PVC
Product Type
Cable
Signal Type
UTP
TAA Compliant
No
Additional Technical Specifications
Electrical Specifications
Conductor DC Resistance: 89 Ohm/km (maximum)
Insulation Resistance: 100 Ohm/km (minimum)
Dielectric Strength: 500 MV/mPhysical Characteristics
Conductor Type/Size - Bare Copper Stranded, 24 AWG (7/0/2.0)Insulation
Material - H-D PE
Diameter - 0.95 ± 0.05mm
Colors - Blue/Blue-White, Orange/Orange-White, Green/Green-White, Brown/Brown-WhiteJacket
Material - FR-PVC
Nominal Thickness - 0.55mm
Outer Diameter - 5.30mmConnector
Material - Polycarbonate
Hood Material - Molded PVC
Contact Material - Copper alloy plated with gold-50
Number of contacts - EightOther Specifications
Approvals - RoHS Compliant, Verified to EIA/TIA 568B.2
Wired - TSB 568B (AT&T 258A)
Package Type - Polybag
Certifications & Warranties
Certifications
CE
NDAA 889
Prop 65
REACH
RoHS
TSCA
Warranty
Lifetime
