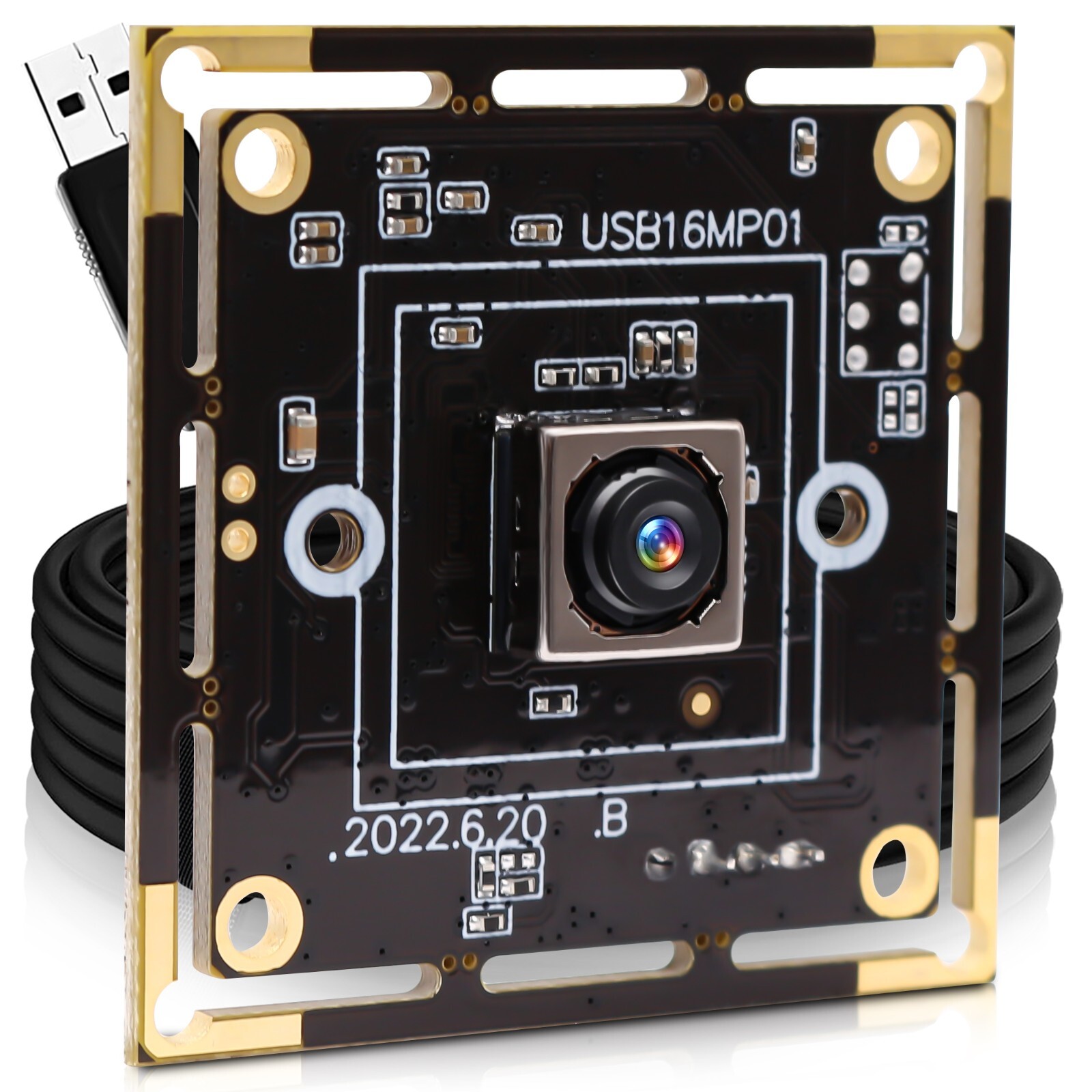

ELP16MP Autofocus USB Camera Module 1/2.8" IMX298 Sensor Mini UVC USB2.0 AF Video Webcam Camera Module With 3.2mm Lens16MP 4656(H) *3496(V) High Resolution Mini USB Camera UVC Web Camera for Android Linux Windows Video Conference Camera,High quality AF lens,supports full HD video calling over the internet without delay.
Plug&Play: UVC-compliant, just connect the camera to PC computer, laptop, Android device or Raspberry Pi with the USB cable without extra drivers to be installed.
High Frame Rates:MJPG 10fps @4656x3496 / 4160X3120 / 3840X2160 / 2592X1944, MJPG style="box-sizing: border-box; -webkit-tap-highlight-color: transparent; outline: 0px; margin: 0px; padding: 0px; line-height: inherit; color: rgb(34, 34, 34); font-family: "Open Sans", Roboto, Arial, Helvetica, sans-serif, SimSun; white-space-collapse: collapse;">
Applications:This tiny 38mmx38mm camera board can be installed in most narrow position, highly recommended for a home video surveillance system, dashcam and other vision applications demand high resolution.Great for document scan or High Resolution Video Capture.
Max Resolution:4656x 3496
Sensor:SONY IMX298AF Lens 68degree
Compression Format:MJPEG/YUY2 optional
Default 1 meter USB cableModelELP-USB16MP01-V68SensorSONY IMX298Sensor Size1/2.8inchPixel Size1.12umImage area6.4mm x 5.3mmMax. Resolution4656(H) X 3496(V) 16MegapixelCompression formatMJPEG / YUY2（YUYV）Resolution & frame4656x 3496 MJPEG@10fps YUY2 @ 1fps4208x 3120MJPEG@10fps YUY2 @ 1fps
4160x 3120 MJPEG@10fps YUY2 @ 1fps4000x 3000MJPEG@10fps YUY2 @ 1fps
3840 x2160 MJPEG@10fps YUY2 @ 1fps3264 x2448MJPEG@10fps YUY2 @ 1fps
2592 x1944 MJPEG@10fps YUY2 @ 1fps2320 x1744MJPEG@30fps YUY2 @ 1fps
2048 x1536 MJPEG@30fps YUY2 @ 1fps1920 x1080MJPEG@30fpsYUY2 @ 5fps
1600 x1200 MJPEG@30fpsYUY2@ 5fps1280 x960MJPEG@30fpsYUY2 @ 10fps
1280 x720 MJPEG@30fpsYUY2 @10fps1024 x768MJPEG@30fpsYUY2 @ 10fps
800 x600 MJPEG@30fps YUY2 @ 15fps640 x480MJPEG@30fps YUY2 @ 30fpsMin illumination0.5luxShutter TypeElectronic rolling shutter / Frame exposureConnecting Port typeUSB2.0 High SpeedFree DriveProtocolUSB Video Saturation, Hue, Sharpness, Gamma,
Gain, White balance, Backlight Contrast, ExposureAF Lens ParameterFocus length 3.2mm , Viewing angle 68 degreePower supplyUSB BUS POWER4P-2.0mm socketOperating VoltageDC5VWorking Current150mA~240mAWorking temperature-10～70℃Storage 32X32mm）/ about 30gCableStandard 1M / optional 2M,3M,5MOperating system etc.
Linux with UVC（above linux-2.6.26）
MAC-OS X 10.4.8 or later
Android 4.0 or above with UVCAdjustable balance/backlight contrast/exposure.
used for all kinds of machine as below:
Machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display,automatic
vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law
enforcement, door bell and button system, cat-eye system, simple security system,teaching system, Interactive system,
automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video
shooting Device, exam system, Driving learning system,Industrial camera, biological microscope, box inside surveillance, micro HD
surveillance, endoscope,Medical auxiliary equipment, etc.
Important:
We are not responsible for any custom duty or import tax
Return Policy
1. We offer full refund if you didn't receive your order in our promised time.
2. For product quality problems ,please contact us and provide us with evidence within 3 days after receiving
3. Items returned after 7 days of delivery are only for repair.
4. As the items returned, buyer should pay for the return shipping fee.
response
1.Please contact us before leaving any neutral or negative response. We will try our best to solve the problem ,Thank you 2.About The Dispute:Before you open a dispute, please contact us first. We can make things better, or refund the money to you more faster. Thanks! Welcome Inquiry.
|
|
