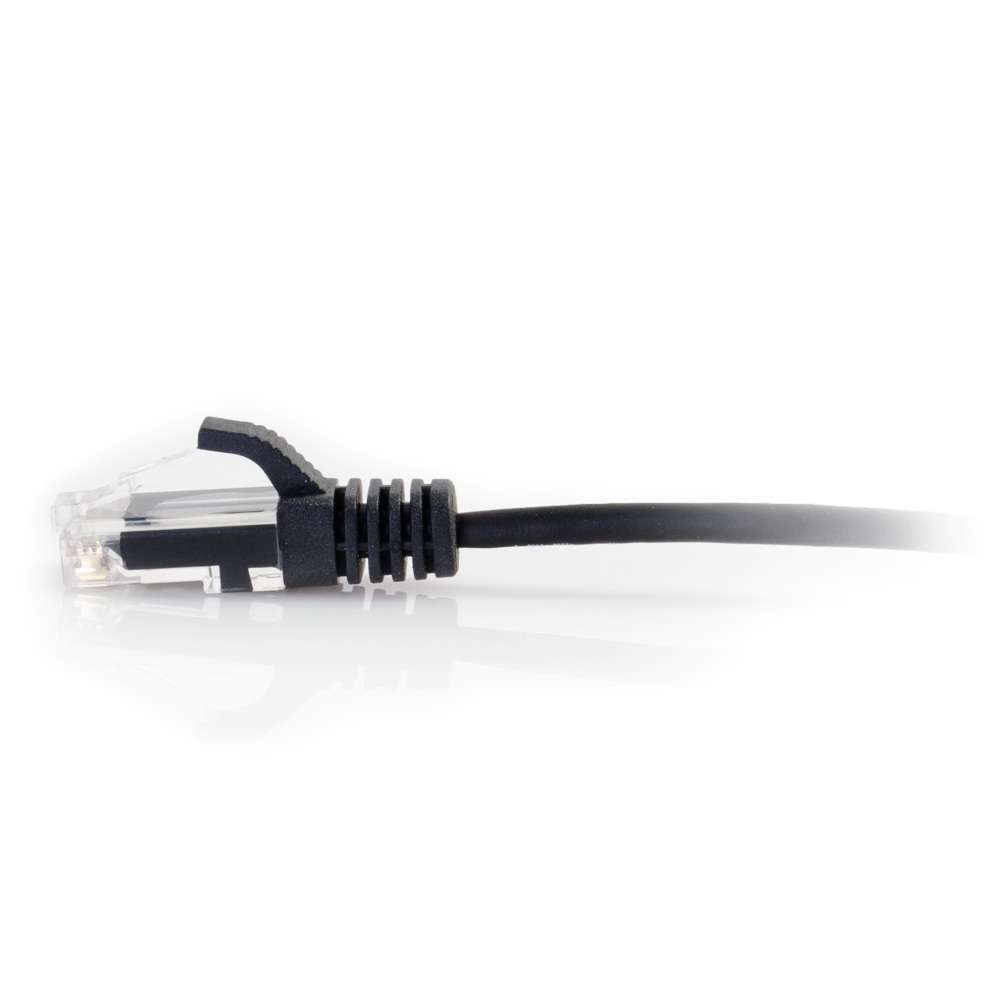

1ft (0.3m) Cat6 Snagless Unshielded UTP Slim Ethernet Network Patch CableCat6 Slim Patch Cable Series The Cat6 Snagless Unshielded (UTP) Slim Network Patch Cable is the perfect solution for high density datacenter applications. The use of 28 AWG conductors allows for a 36% reduction in diameter over a standard Cat6 network patch cable. This reduced diameter provides a smaller cable surface area which allows for increased airflow when compared to standard Cat6 cables. The 28 AWG conductors also allow this cable to have a smaller bend radius than standard Cat6 cables. The small size and small bend radius of this cable allows it to be easily routed through cable management panels.
This cable is designed for fast Ethernet networks that require bandwidth-intensive voice, data, or video distribution applications. Constructed from high quality copper cable, this design minimizes Near-End Crosstalk (NEXT) levels. The molded, snagless boot prevents unwanted cable snags during installation and provides extra strain relief. Available in a variety of colors to easily color-code your network installation.
Complies with the latest ANSI/TIA-568 standard.
Maximum cable length recommendations:
96 Meter Channel (90 meters of horizontal cable and up to 6 meters of slim network patch cables)- 93 Meter Channel (83 meters of horizontal cable and up to 10 meters of slim network patch cables)
- For POE/POE+ applications we limit bundles to 40 cables due to heat dissipation of these reduced diameter cables.
Connector 1: (1) RJ-45 MaleConnector 2: (1) RJ-45 MaleSpecifications
Dimensions & Measurements
Bandwidth500 mHzBend Radius0.6 in (15.2 mm)Cable Diameter0.15 in (3.8 mm)Cable Length1 ft (0.3 m)Operating Humidity Max80% RH (Non-Condensing)Operating Humidity Min10% RH (Non-Condensing)Operating Temperature-4° - 176°F (-20° - 80°C)Operating Temperature Max176 Fahrenheit (80 Celsius)Operating Temperature Min-4 Fahrenheit (-20 Celsius)Storage Temperature Max176 Fahrenheit (80 Celsius)Storage Temperature Min-4 Fahrenheit (-20 Celsius)Shipping Weight0.04 lbs (0 kg)Voltage30 VWire Gauge28AWGWiring SchemeT568B
Characteristics & Features
Cable ShieldingUnshielded (UTP)Cable TypeCat 6Category Performance ApplicationCat 6Product TypeCableColorBlackBlue
Additional Technical SpecificationsELECTRICAL SPECIFICATIONS
Conductor DC Resistance: 9.38Ω/100m (maximum)- Impedance: 100Ω
- Capacitance: 5600pf/100m
- Propagation Delay: 545ns/100m (maximum)
- Delay Skew: 45ns/100m (maximum)
PHYSICAL SPECIFICATIONS
Wiring Scheme: T568B- Temperature Rating: 75°C
- Voltage Rating: 30V
- Approvals: CE
- Warranty: Lifetime
- Package Type: Polybag
CONDUCTOR (4 PAIR)
Conductor Type: 248AWG (7/0.16 BC)- Insulation: FM-PE ID: ø.60±0.05
- Twist Pair: White/Orange, Blue, White/Blue, Green, White/Green, Brown, White/Brown
CONNECTOR TYPE (QTY. 2)
Connector Type: 8P8C (RJ45)- Gender: Male
- Contact Material: Gold Plated 50µ
- Hood Material: Molded PVC, UL94V-0
OVERALL CABLE
Jacket: PVC- Outer Diameter: 3.8 ± 0.15mm
Certifications & Warranties
CertificationsCE
Prop 65REACHRoHS
