SpecificationELECTRICAL SPECIFICATIONS
Frequency Impedance50ΩHorizontal 3dB Beam Width
85°Vertical 3dB Beam Width55°Maximum Power ProtectionDirect GroundMECHANICAL SPECIFICATIONSConnector TypeN-femaleNet Weight0.25kgCable TypeNoRadiating Element MaterialAluminum AlloyRadome Color

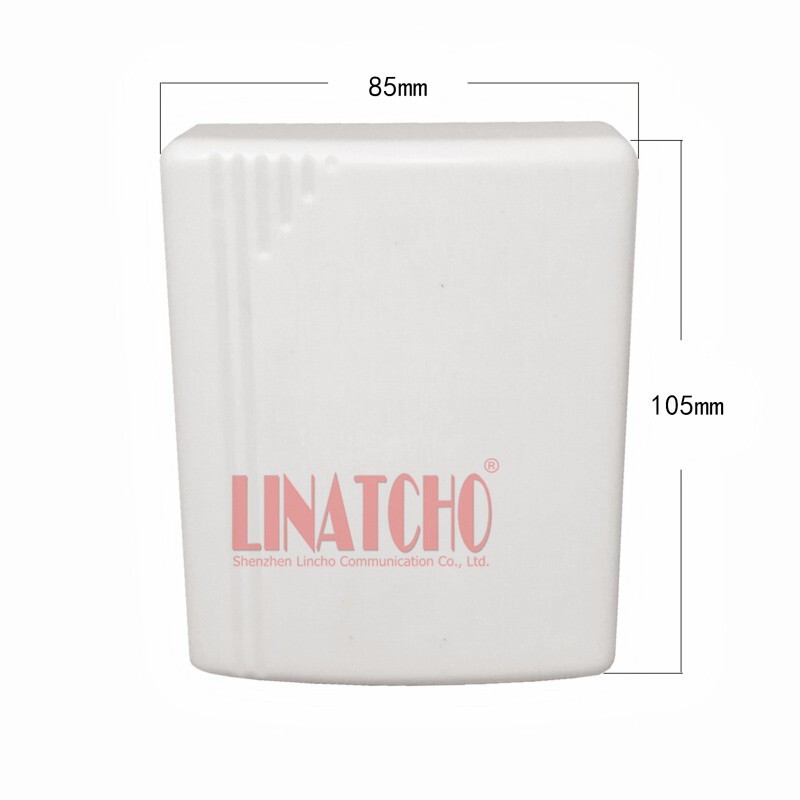

WhiteProducts DescriptionPanel antenna is used to radiate the signal into the forward space. The primary purpose is to reach places where a device with a default antenna would not reach. It is designed for use on stationary objects such as buildings or houses, but it is widely used for remote connection at campgrounds, RV motorhomes, boats, or remote devices like WiFi cameras.This outdoor directional wifi panel antenna collects the signal and sends it through the cable to a networking device. It is equipped with an N-Female connector and it is ready to connect to a device with a proper extension cable. It requires a 50 Ohm RF coax expansion cable with N-Male connector on the antenna side and connector type that fits the device on the other side. As a rule of thumb, always use the shortest line and thickest cable to avoid signal loss. Do not use RG59/RG6 coax (75 Ohm TV cable) – signal will be seriously degraded.
