SpecificationELECTRICAL SPECIFICATIONS
Frequency Impedance50ΩHorizontal 3dB Beam Width

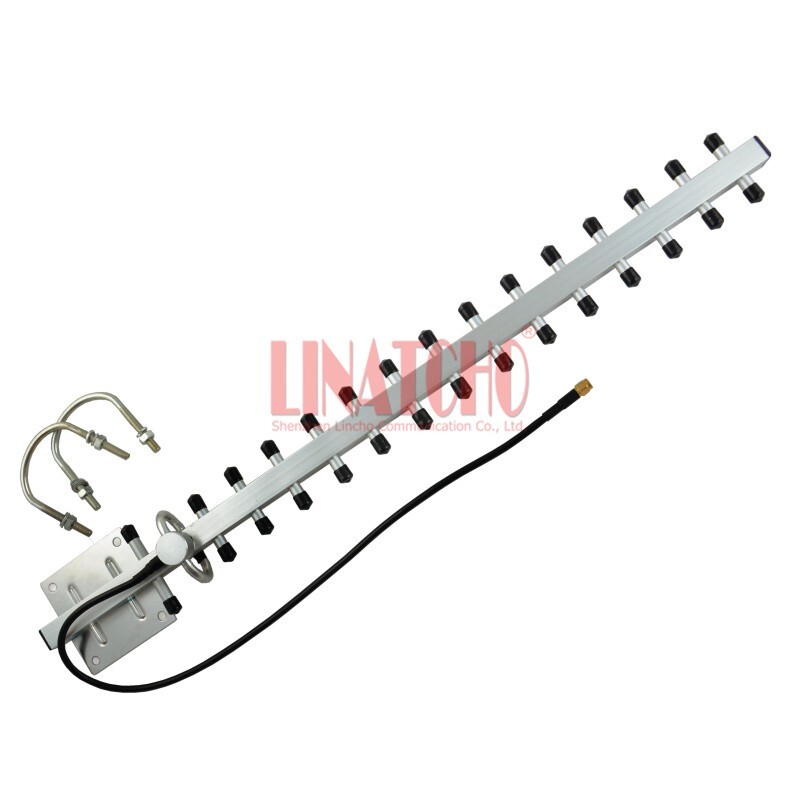

38°Vertical 3dB Beam Width32°Maximum Power ProtectionDirect GroundMaximum wind speed200m/sMECHANICAL SPECIFICATIONSConnector TypeRP-SMA-maleNet Weight0.3kgCable Type50CM RG58URadiating Element MaterialAluminum alloyElement16 UnitsSize59cmHold Pole Diameterφ40-φ60(mm )Products DescriptionAntenna Erection 1 Fix the wave director and the oscillator in a counterpoint ( please take notice that the drain hole of oscillator should be downward).
2 Erect the antennas to the pole with clamp according to polarization required.
3 Connect the RF cables well, and wrap up the connector with waterproof adhesive tape, and do not let the cable flutter in the wind.
4 Make a shield for protection the water back into the home before RF cables were acrossed indoor. Yagi directional antennas are only effective when pointed toward a cellular tower. Note: All outdoor coax connections should be weather-proofed to minimize damage
caused by moisture in the connectors or cabling. Outdoor antenna installations should include lightning protection for safety; it
may be required by your local building, electrical or fire codes or by your property insurance. Use a Lightning Arrester with this antenna.
