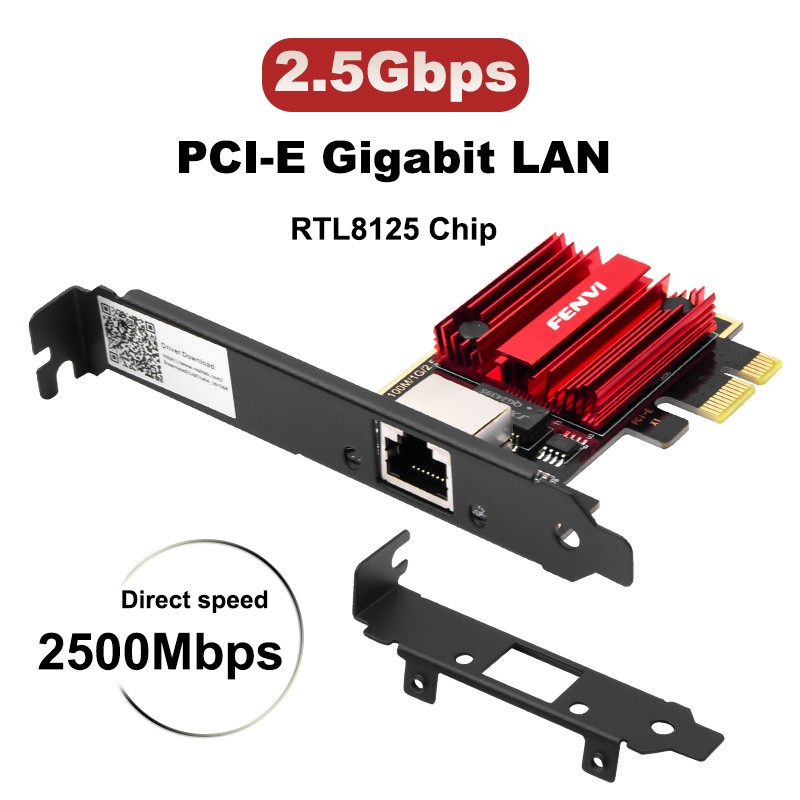

2.5GB Network Adapter RTL8125B PCIe RJ45 to 2.5 Gigabit Ethernet Desktop Card
When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.
2.5GB Network Adapter RTL8125B PCIe RJ45 to 2.5 Gigabit Ethernet Desktop Card
Price: US $15.38
SpecificationChipset：RTL8125BPort number：1* RJ45Standard：IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3az、IEEE 802.3bzNetwork media：10Base-T,cat3 or above UTP,1000Base-Tx,cat5 or above UTPData rate：PCI Express 1x slotAuto MDIX：YESFull Duplex Support：YESLED Indicator：100M/1G/2.5G OS：Windows 10(32/64), Win7 (32/64), Win8,8.1 (32/64)，Windows Server,2012,2008，Linux，Mac OS【COMPATIBLE WITH OS】Compatible with Windows 10 / 8 / 8.1 / 7 / XP / Vista, Windows Server 2012 / 2008 R2 / 2008 / 2003, UEFI, Linux kernel up to 5.6 operating systems.

2.5GB Network Adapter RTL8125B PCIe RJ45 to 2.5 Gigabit Ethernet Desktop Card

Description:

  • 【COMPATIBLE WITH OS】Compatible with Windows 10 / 8 / 8.1 / 7 / XP / Vista, Windows Server 2012 / 2008 R2 / 2008 / 2003, UEFI, Linux kernel up to 5.6 operating systems.
  • 【DRIVER INSTALLATION REQUIRED】To find more OS compatibility version or driver download, go to Realtek: https:// www . realtek. style="box-sizing: border-box; list-style-type: disc; overflow-wrap: break-word; margin: 0px;">【2.5GBPS PCIE NETWORK ADAPTER WITH RTL8125B CHIP】PCIe 2.5G 4-Speed Multi-Gigabit Network Adapter supports data rate up to 2.5 Gbps. It will increase business working efficiency by increasing the network speed. The transmission is more stable, and it is not easy to cause packet loss and distortion.
  • 【ADD 2.5G RJ45 ETHERNET PORT】Fits any PCI Express x1, x2, x4, x8 or x16 socket. NOTE: Only work with PCI-E slot, Not for PCI Slot.
  • 【PACKAGE CONTENTS】2.5G PCIe network card, standard bracket, low-profile bracket, screws
  • 【2.5Gbps Network Speed】Up to 2.5 times faster data transfer speed, using next-generation 2.5GBase-T technology, faster than standard Gigabit Ethernet, better for large-scale games and complex task processing, providing a better experience for desktop computers.
Suitable for Host Sever and Personal PC

PCI Express RTL8125B 2.5G network adapter is combines a four-speed IEEE802.3 compatible Media Access controller with a four-speed Ethernet transceiver, it is complies with the IEEE802.3u specification for 10/100Mbps Ethernet,the IEEE802.3ab specification for 1000Mbps Ethernet and IEEE802.3bz specification for 2500Mbps Ethernet.

Product Feature.

It offers high-speed transmission over CAT5e UTP cable OR CAT3 UTP(10Mbps only)cable .it is suitable for multiple market segments and emerging applications, such as desktop, workstation, server, communications platforms, and embedded applications.

Specification

Chipset：RTL8125B

Port number：1* RJ45

Standard：IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3az、IEEE 802.3bz

Network media：10Base-T,cat3 or above UTP,1000Base-Tx,cat5 or above UTP

Data rate：PCI Express 1x slot

Auto MDIX：YES

Full Duplex Support：YES

LED Indicator：100M/1G/2.5G Link/Act

Dimension：71.5*50*1.6mm

Support OS：Windows 10(32/64), Win7 (32/64), Win8,8.1 (32/64)，Windows Server,2012,2008，Linux，Mac OS

Support PXE function.

Support Wake on LAN

Support 2.5G and 1G Lite mode

Compatible with NBASE-T Alliance PHY Specification

Supports PCI Express 2.1

Supports 1-Lane 2.5G/5Gbps PCI Express Bus

Compliant with IEEE 802.3,IEEE 802.3u,IEEE 802.3ab

Supports IEEE 802.1P Layer 2 Priority Encoding

Supports IEEE 802.1Q VLAN tagging

Supports IEEE802.3az(Energy Efficient Ethernet)

Supports Full Duplex flow control(IEEE 802 .3x)

Packing：

1*PCIe Gigabit Ethernet Adapter

1*Low Profile bracket

1* Screw
