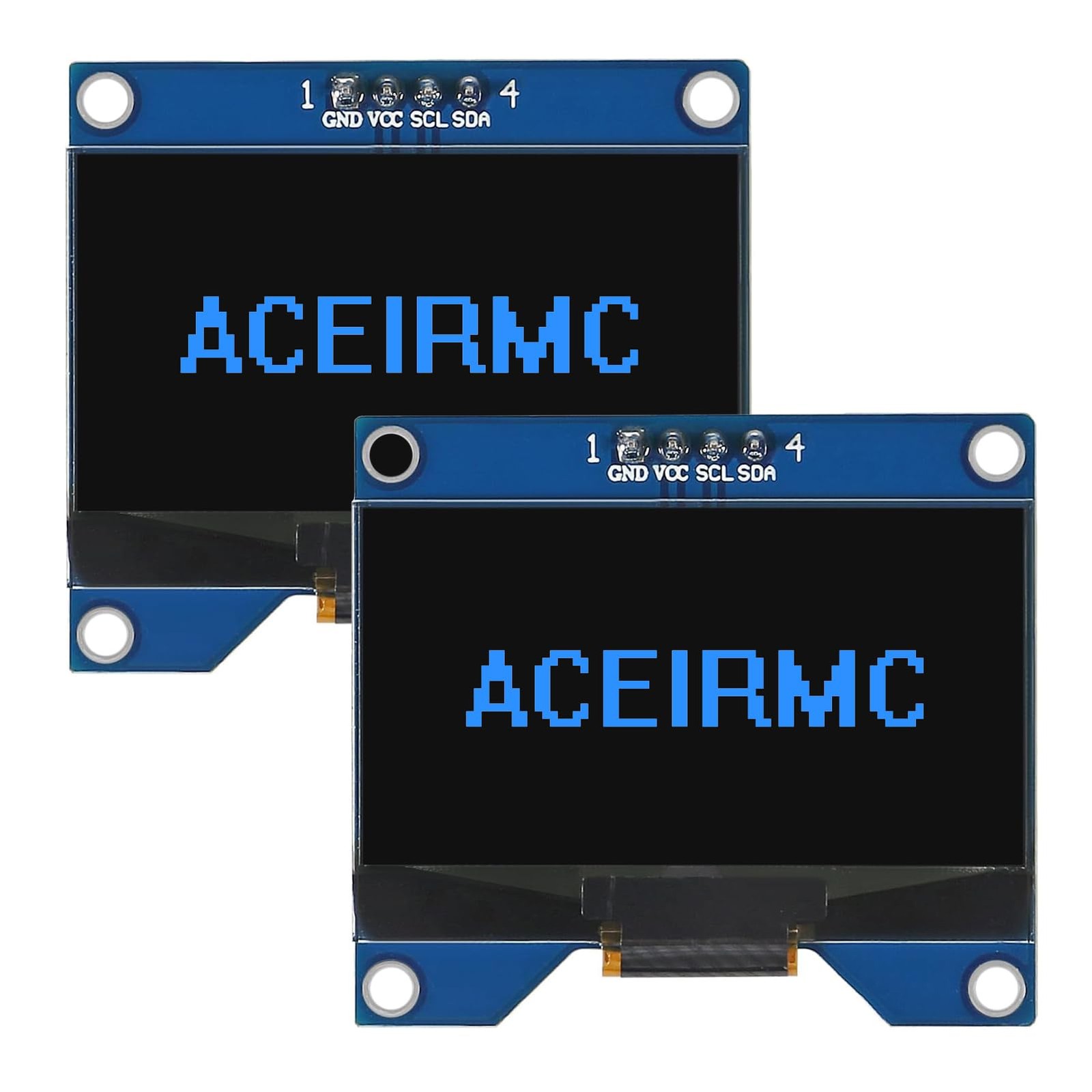

2 PCS Blue 1.54 Inch OLED Module 128x64 SSD1309 Driver IIC I2C STIM 324 Pin
Price: US $24.13
2pcs 1.54 Inch OLED Module 12864 128x64 SSD1309 Driver IIC I2C Serial Interface Self-Luminous Display Board Compatible with Raspberry Pi STIM 32-4 Pin (Blue)🔍 Product Overview

Specification:

Item Type: 1.54 Inch OLED I2C IIC Display Module

Resolution: 128 x 64(Pixel)

Driver IIC: SSD1309, compatible with SSD1306

Interface: SPI interface I2C interface

Drive Voltage: 3.3V-5V

Display Color: Blue/White

Features:

OLED self-luminous, no backlight

High resolution: 128x64 (same resolution as 12864, high PPI)

Large viewing angle: greater than 160° (a screen with the largest viewing angle in the display)

Ultra-low power consumption: normal display 0.06w (far lower than TFT display)

Wide voltage power supply (3V~5V), compatible with 3.3V and 5V level logic, no need for level conversion chips

The IIC interface only needs 2 IOs to light up easily

Applications:

MP3, MP4, watch. Head-mounted displays. Meters and other intelligent instruments. Design any pretty patterns for your beloved electronic devices!

Package Included:

2 *  1.54 Inch OLED I2C IIC Display Module(with protective box)

⭐ Key Features
    • 1.54 Inch OLED I2C IIC Display Module 12864 128x64 Pixel SSD1309 Driver I2C Serial Interface Display Board Module Compatible with Raspberry Pi
    • Resolution: 128 x 64, View angle: > 160°, Support voltage: 3.3V-5V DC, Power consumption: 0.04W during normal operation, full screen lit 0.08W
    • Embedded Driver IC: SSD1309, Communication: I2C/IIC Interface, only need 2 I/O ports.There are no fonts embedded in the OLED controller, users can create fonts through the font generation software.
    • Self-luminous Design: No backlight is required, the display can self-luminous; It has high contrast, bright and crisp dots, even tiny fonts quite readable.
    • Application:1.54 inch OLED module supports many chips: compatible with R3 board and Mega, for Raspberry pi, 51 MCU, STIM 32, etc.
