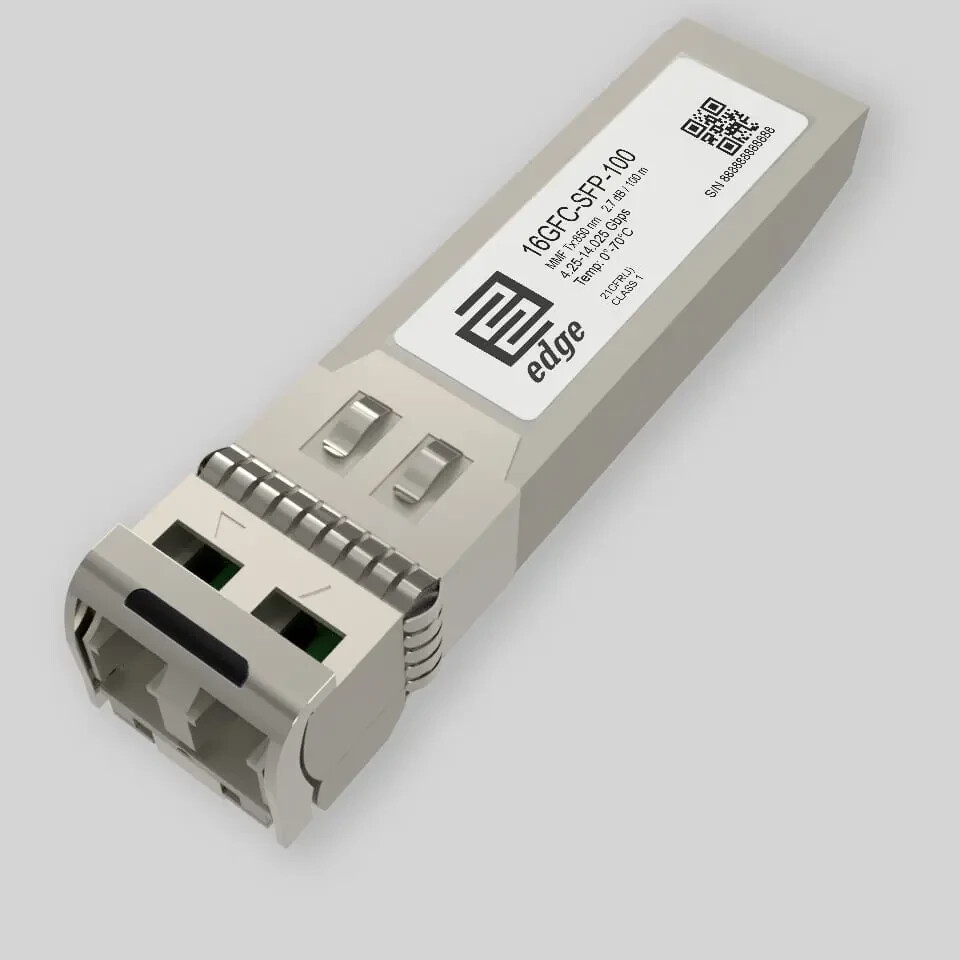

2 QTY - HPE B-series 16Gb SFP+ Short Wave Transceiver, Model: QK724A
Price: US $44.99
2 QTY - HPE B-series 16Gb SFP+ Short Wave Transceiver, Model: QK724AYOU WILL RECIEVE 2 UNITSProduct Description
Our Compatible HPE QK724A SFP+ transceiver datasheet & quickspecs and price is based on our 16GFC-SFP-100 product, which has the same parameters and is manufactured in accordance with the same industry standards as its OEM counterpart. Our compatible HPE B-series 16Gb SFP+ Short Wave Transceiver version is designed for operation over a Double Fiber Multi-Mode Fiber (MMF) optical cable. It has a minimum guaranteed optical budget of 2.7 dB, which typically is enough to reach about 100 meters over OM4/OM5 type fiber. However, distance is only an indicative parameter calculated for identification comfort. Finally, we calculate distance while keeping in mind the minimum (guaranteed) optical budget and the average attenuation of optical cabling in the industry. Our QK724A HPE B-series 16Gb SFP SW XCVR compatible transceiver uses a high-quality VSCEL Laser transmitter operating at 850 nm nominal wavelength and a 850 nm PIN Photodiode receiver. This module supports DDM/DOM optical diagnostics and provides diagnostic data about the current operating conditions.
This compatible HPE B-series 16Gb SFP+ Short Wave Transceiver has a Double LC connector and is designed for operation in standard temperature networking environments ranging from 0°-70°C. The transceiver chipset supports data rates ranging from 4.25-14.025 Gbps and applications such as 16G Fiber Channel (14.025 Gbps), 8G Fiber Channel (8.5 Gbps), 4G Fiber Channel (4.25 Gbps). The module will support at least the same functionality as its OEM counterpart, offering a reliable solution for Data Center Fibre Channel infrastructure, SAN Networking, and other optical links. Our compatible QK724A HPE B-series 16Gb SFP SW XCVR module is CE/RoHS certified, meets product safety standards, and is compliant with SFP+ Multi Source Agreement (MSA) SFF-8432 industry standard.
Key Highlights
  • Type: SFP+ (Small Form factor Pluggable) Transceiver
  • Compatibility: HPE Compatible
  • Tx Wavelength: 850 nm
  • Rx Wavelength: 850 nm
  • Media Type: Multi-Mode Fiber (MMF)
  • Optical Budget: 2.7 dB
  • Max. Distance: 100m
  • Data Rate: 4.25-14.025 Gbps
  • Temperature: Standard 0°-70°C
  • Short Name: HPE B-series 16Gb SFP+ Short Wave compatible transceiver

Key Technical Data
  • Media Type: Multi-Mode Fiber (MMF)
  • TX Wavelength: 850 nm
  • RX Wavelength: 850 nm
  • Minimum Optical Budget: 2.7 dB
  • Maximum Distance: 100m
  • Supported Data Rate: 4.25-14.025 Gbps
  • Supported Applications: 16G Fiber Channel (14.025 Gbps), 8G Fiber Channel (8.5 Gbps), 4G Fiber Channel (4.25 Gbps)
  • DDM/DOM: Supported
  • Temperature Range: Standard 0°-70°C
  • Connectors: Double LC
  • Tx Wavelength Bandwidth: 20 nm (840-860 nm)
  • Rx Wavelength Bandwidth: 20 nm (840-860 nm)
  • Minimum Transmitting Power: -7.8 dB
  • Maximum Transmitting Power: -0.5 dB
  • Receiver Sensitivity: -10.5 dBm
  • Receiver Overload: 0 dBm
  • Transmitter Type: VSCEL Laser
  • Receiver Type: PIN photodiode
  • Power: +3.3V single power supply
  • Chipset: Sumitomo
  • Compliance: CE, Class 1 FDA and IEC60825-1 Laser Safety Compliant, FC-PI-5 Rev 6.00, RoHS, SFF-8431, SFP MSA
