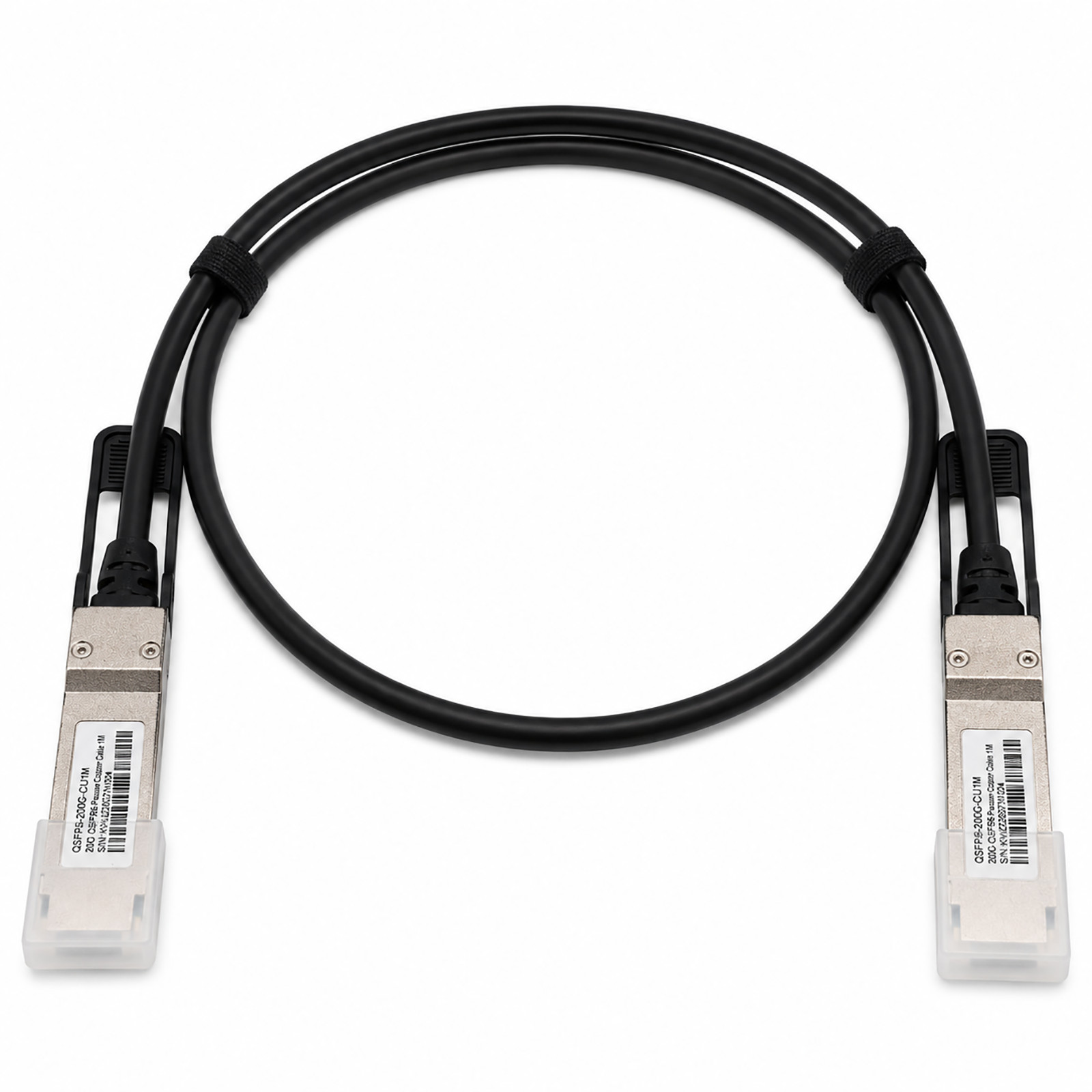

OUR OPTIONS 200G QSFP56 DAC For NVIDIA Mellanox MCP1650 HDR IB Ethernet 0.5M 1M ITEM DESCRIPTION
This 200G QSFP56 Passive Direct Attach Copper Twinax Cable is programmed with NVIDIA/Mellanox compatible EEPROM coding on both connector ends.
It supports short-distance 200GbE Ethernet and HDR InfiniBand connections between compatible QSFP56 ports. The passive copper design provides up to 200Gbps aggregate bandwidth over four 50Gbps PAM4 lanes without requiring optical transceivers or fiber patch cables.
The 0.5-meter and 1-meter versions use 30AWG copper conductors and are designed for same-rack and adjacent-rack connections in AI, high-performance computing and enterprise data center environments.
Features
• NVIDIA/Mellanox compatible EEPROM coding on both ends
• Supports 200GbE Ethernet and HDR InfiniBand applications
• Up to 200Gbps aggregate data rate
• Four 50Gbps PAM4 transmission lanes
• QSFP56 to QSFP56 configuration
• Passive 30AWG Twinax copper construction
• Low latency and low power consumption
• Hot-pluggable connector design
• No optical modules or fiber patch cords required
• Available in 0.5M and 1M 200GbE switch-to-server connections
• HDR InfiniBand switch-to-HCA connections
• NVIDIA Quantum-based HPC networks
• NVIDIA/Mellanox ConnectX network adapters
• AI training and GPU computing clusters
• High-performance storage networks
• Data center top-of-rack connections
• Same-rack and adjacent-rack interconnects
Fit For
For NVIDIA/Mellanox MCP1650-V00AE30 compatible applications
For NVIDIA/Mellanox MCP1650-V001E30 compatible applications
For NVIDIA Quantum HDR InfiniBand switches
For NVIDIA/Mellanox ConnectX-6 VPI 200Gb/s adapters
For MCX653105A-HDAT / MCX653105A-HDAL
For MCX653106A-HDAT / MCX653106A-HDAL
For MCX654105A-HCAT / MCX654106A-HCAT
For QSFP56 equipment supporting 200GbE or HDR InfiniBand passive DAC cables
Notes
• Please select the required cable length before ordering.
• The 0.5M version uses MCP1650-V00AE30 as its compatible reference.
• The 1M version uses MCP1650-V001E30 as its compatible reference.
• These reference numbers identify the corresponding length and 30AWG physical specification.
• Actual EEPROM programming is factory-configured for NVIDIA/Mellanox-compatible 200GbE and HDR InfiniBand applications.
• Both connected devices must support passive 200G QSFP56 DAC cables.
• Compatibility can depend on the equipment model, firmware, protocol mode and port configuration.
• The cables are supplier-programmed and factory continuity tested but have not been independently tested with every NVIDIA/Mellanox platform.
• You may provide the exact switch or network adapter model through Messages before ordering for a compatibility check.
• This is a third-party compatible product and is not manufactured by NVIDIA or Mellanox.
Package Includes：1 × 200G QSFP56 Passive DAC Twinax Cable
SKU#：0.5 Meter KK.CC.583-MM-B Net Weight：4.4 oz Shipping Weight：4.4 oz
SKU#：1 Meter KK.CC.583-MM-1 Net Weight：5.1oz Shipping Weight：5.1oz
