- 【20Gbps High Speed】Constructed with extremely high speed wires that supports USB 3.2 Gen 2x2 20Gbps / USB 3.2 Gen 2 10Gbps, also backward-compatible with USB 3.2 Gen 1 5Gbps (It is a type-c standard cable so it is inherently be able to operate at both USB Type-C Gen 2 10Gbps and Gen 2x2 20Gbps speeds. The 20Gbps specialized port is required on the device to meet the full 20Gbps transfer speed)
- 【Wide Compatibility】Panel-mounted USB-C female connector enables you to connect all USB Type-C ready devices such as phones, tablets, flash drives, mouse, hubs, and other USB-C installation and huge expansion for your PC casing. Quickly adds ports through available Type-E slot on motherboard for connecting a variety of external USB-C devices. Fully plug and play and no driver required (Some old motherboards do not have 20-pin USB3.2 Key-A Type-E header and would suggest to install with an USB Front Panel Adapter which converts USB 3.0 header into a USB3.2 Type-E Key-A 20-Pin connector or a Type-E PCIe Card which converts PCIe slot into a USB3.2 Type-E connector)
- 【Stability and Safety】Sturdy metal construction ensures a long service life and durability, and fully double shielded EMI/EFI wires to prevent noise interference internally and externally
- 【Package Contents】GRAUGEAR USB Type-E to Type-C extension cable with PCI bracket, warranty card, user manual and friendly customer service

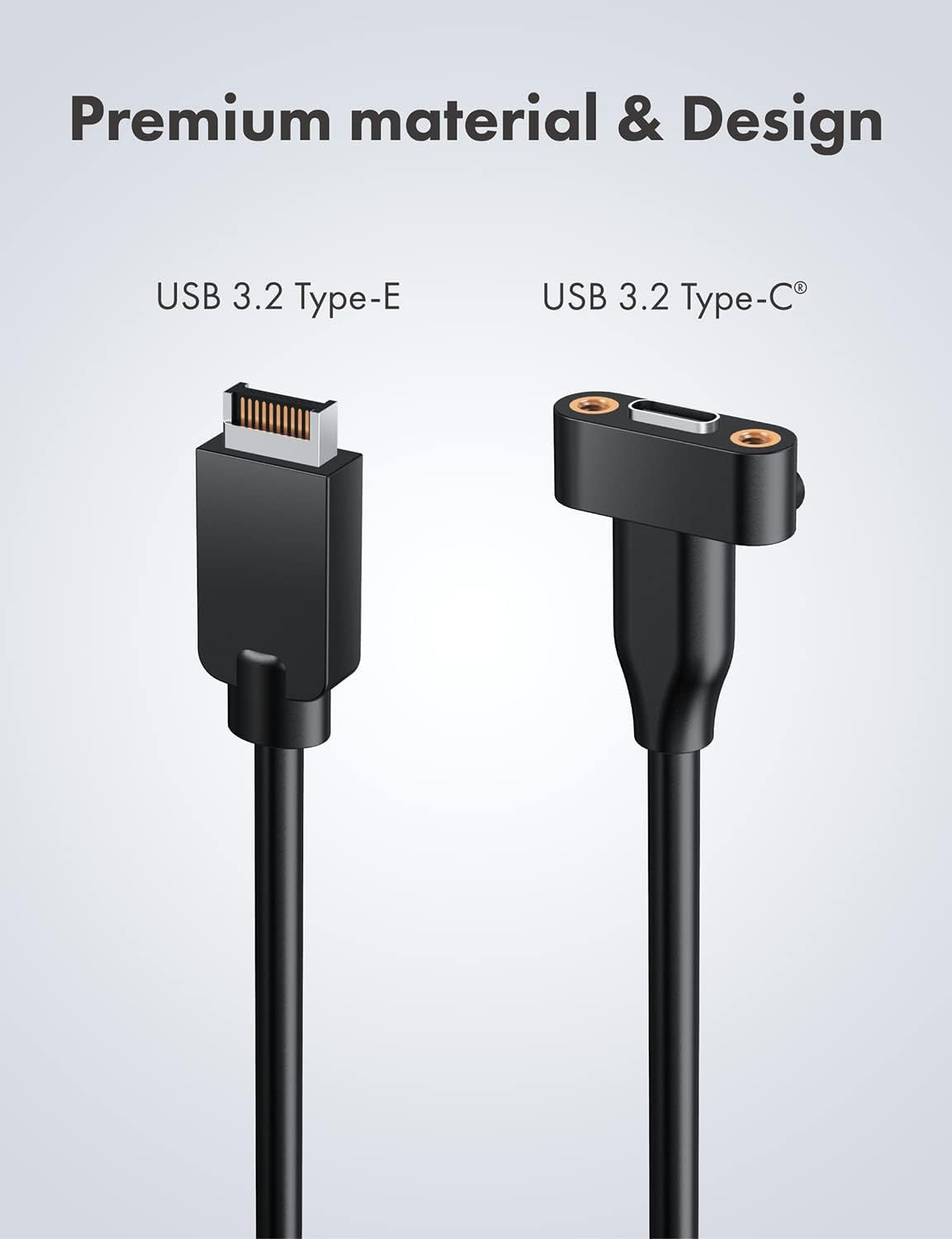

Product description USB 3.2 Type-C Front Panel Header Extension Cable
GRAUGEAR extension cable is designed to provide your an easy way to convert the motherboard's USB 3.2 TYPE-E interface to Type-C port on the front of the chassis through the chassis line extension. The Type-C reversible design simplifies the connection and allows you to plug in any way without worrying about it being upside-down.
20Gbps USB 3.2 Gen 2x2 SuperSpeed / 10Gbps USB 3.2 Gen 2
USB-C port features the latest USB 3.2 Gen 2x2 standard, which supports an extremely fast data transmission rate up to 20Gbps. It is faster enough to transfer of files within a short time.
USB 3.0 ports, compliant with the USB 3.0 standard, supports up to 5 Gbps of bandwidth, which enables you to connect variety of your USB devices with ease.
Note:
- It is a type-c standard cable so it is inherently be able to operate at the USB Type-C(including both Gen 2 10Gbps and Gen 2x2 20Gbps) speeds. The specialized controller is required in the machine to see a full 20Gbps.
- Before buying, make sure your motherboard with the support of USB 3.2/USB 3.1 header for the front panel. Some old motherboard do not have USB3.2 Type-E/Key-A 20-pin header, suggest to use a usb front panel adapter(Type-E Key-A to 20-pin header) adapter when installing.
Suitable for Type-E female socket
Convert the USB 3.2 Type-E port of the motherboard to a Type-C female port, and fix it through the chassis PCI position to facilitate the connection and use of Type-C devices.
Type-C Female Interface
It is applicable to equipment with type C public interface and supports data transmission, listening to music and charging.
Type-E Male interface
Only applicable to Type-E (A-key) female seat. Please pay attention to the plug type before use.
