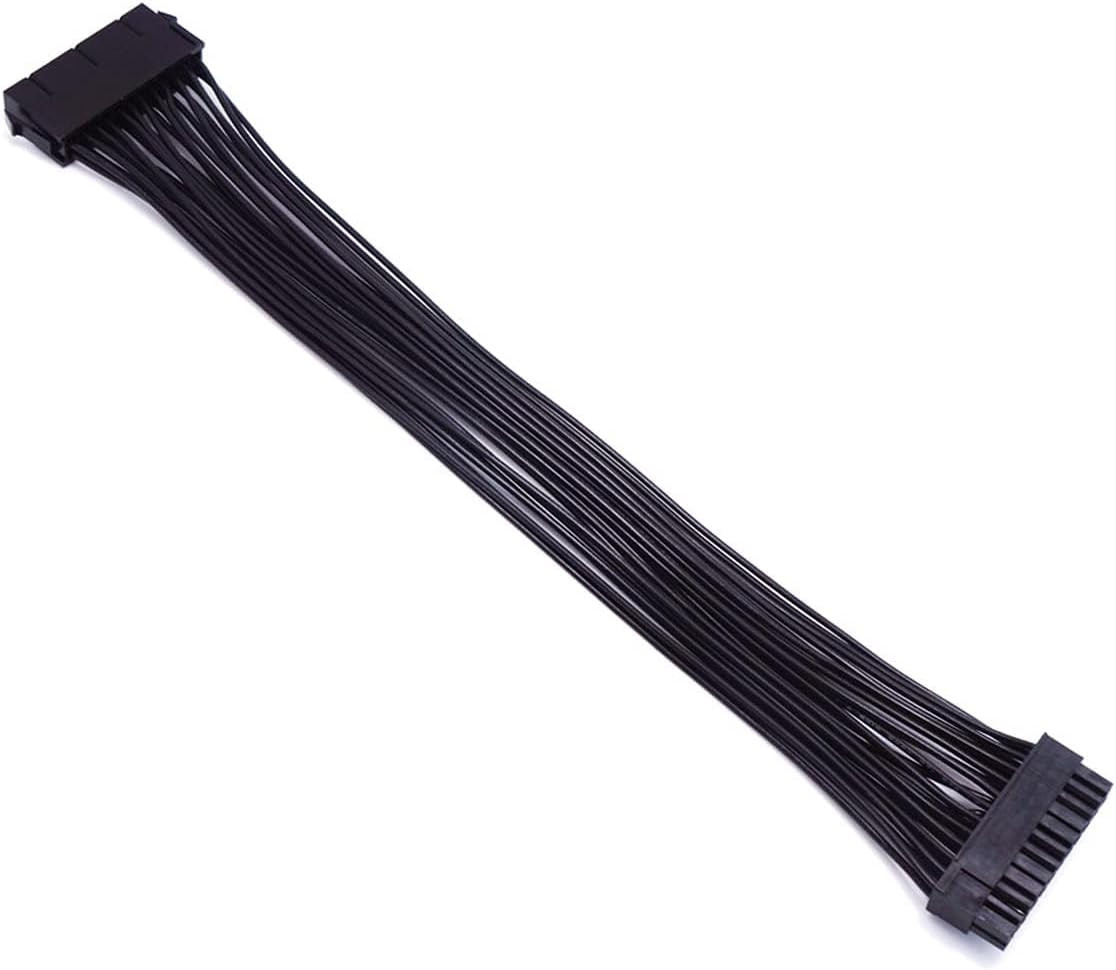

- The extension cable connects your computer’s power supply to the Motherboard.
- 24 Pin male to 24 Pin female, plug and play, convenient and fast. Safety buckle on the plug to prevent accidental fall off.
- 12 Inches (30cm), 1007 18AWG Tin-plated copper wire, strong conductivity, corrosion and oxidation resistance.
- The wire sheath is made of PVC, insulated, flame retardant and safer.
- 24Pin male can be disassembled into (20Pin + 4Pin) males, 24Pin female cannot be disassembled.
Product description Motherboard Power Supply Wire
1. plug and play, convenient and fast.
2. 18AWG Tin-plated copper wire.
3. 24Pin male can be disassembled into 20Pin + 4Pin
Good Material & Good Construction.
1. What is Tin-plated copper wire?
A thin layer of tin is plated on the surface of the copper wire. It looks silver.
It has good electrical conductivity, Compared with bare copper wire stronger corrosion resistance and oxidation resistance, which can greatly extend the service life of the wire.
2. What is 1007 wire?
1007 wire is a kind of electronic wire, which is the internal wiring of electrical equipment.
The insulating layer uses PVC material;
The conductor uses copper wire or tinned copper wire (ZLKSKER wires all use tinned copper wire);
Rated temperature: 80°C;
Rated voltage: 300V;
Pass UL VW-1 flame resistance test.
3. 18AWG (American Wire Gauge) wire standard:
Conductor diameter 1.02mm; Cross-sectional area: 0.81mm²; Wire outer diameter 2.0mm.
Standard wire diameter
Low resistance, strong conductivity.
Corrosion and oxidation resistance.
Stable current and safer.
