25 Pieces

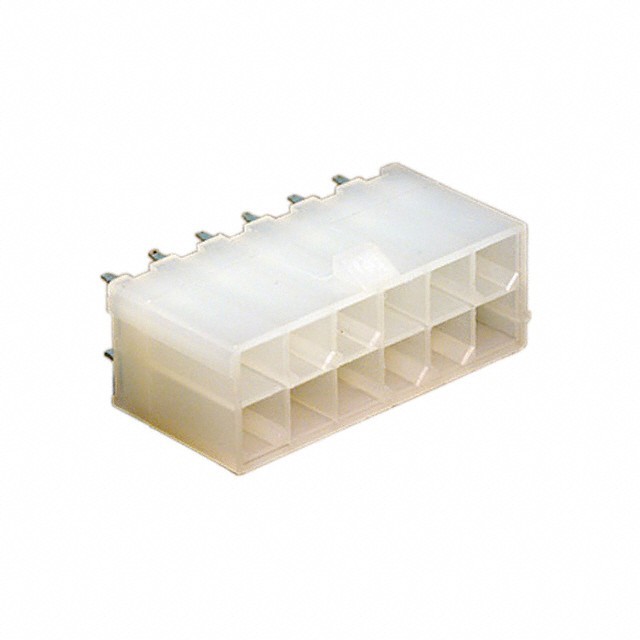

Molex 12 Position Vertical Mini Power Connectors39-28-1123, 250 VDescription
CategoryConnectors, InterconnectsRectangular ConnectorsHeaders, Male Pins
MfrMolex
SeriesMini-Fit Jr 5566
PackagingBulk
Part StatusActive
Connector TypeHeader
Contact TypeMale Pin
Pitch - Mating0.165" (4.20mm)
Number of Positions12
Number of Rows2
Row Spacing - Mating0.165" (4.20mm)
Number of Positions LoadedAll
StyleBoard to Cable/Wire
ShroudingShrouded - 4 Wall
Mounting TypeThrough Hole
TerminationSolder
Fastening TypeLocking Ramp
Contact Length - Mating-Contact Length - Post0.138" (3.50mm)
Overall Contact Length-Insulation Height0.504" (12.80mm)
Contact ShapeSquare
Contact Finish - MatingTin
Contact Finish Thickness - Mating35.4µin (0.90µm)
Contact Finish - PostTin
Contact MaterialBrass
Insulation MaterialPolyamide (PA66), Nylon 6/6
Features-Operating Temperature-Ingress Protection-Material Flammability RatingUL94 V-2
Insulation ColorNatural
Current Rating (Amps)-Voltage Rating-Mated Stacking Heights-Contact Finish Thickness - Post35.0µin (0.90µm)
ApplicationsGeneral Purpose, Industrial, TelecommunicationsBase Product Number003928FAST - FREE SHIPPING!WE SHIP WITHIN 24 HRS- MON-FRI.
