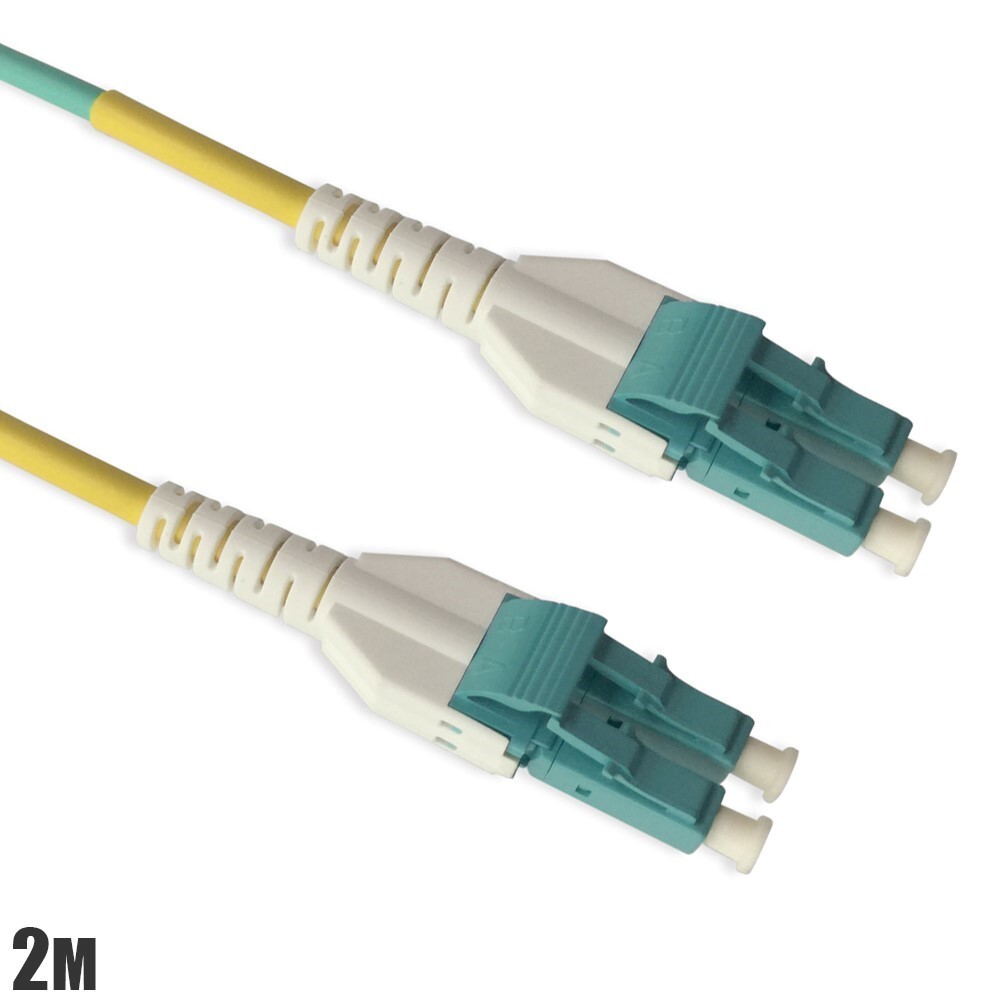

2M Uniboot LC UPC to LC UPC OM3 Multi Mode 50/125 Duplex Fiber Optic Cable Aqua

Price: US $17.56

105015 Menu X

2M Uniboot LC UPC to LC UPC OM3 Multi Mode 50/125 Duplex Fiber Optic Cable Aqua30 Day Money Back Guarantee!AVAILABLEIN STOCKContact UsNewsletterBuy Now Product Description About Us Payment Shipping Returns Contact Us

2m Uniboot LC UPC to LC UPC 10Gbps OM3 Duplex Multi Mode 50/125 Fiber Optical Cable

Specifications:

Polishing UPC Return Loss = 35 dB Insertion Loss = 0.3 dB (typical)Ferrule Material Ceramic (zirconia) Ferrule Diameter1.25 mm / 2.5 mmCabled Optical Fiber Uniboot OM3Nominal Diameter Core50/125 µmJacket Material OFNR Temperature Range -20°C +70°C
Description:

This product is a 2m Uniboot LC UPC to LC UPC 10Gbps OM3 Duplex Multi Mode 50/125 Fiber Optical Cable.

It is a premium OM3 fiber with a standard jacket, which is designed for light to medium duty indoor applications such as data-center racks and desktop/network connectivity.

It offers the best solution for high-density applications, allowing and improving air flow into racks and data centers.

It is suitable to connect 10G Base-SR, 10G Base-LRM, SFP and QSFP + Tranceivers to 10 Gigabit network panels and switches.

It has a LC-LC Multi Mode connector type with UPC polishing, which ensures high return loss and low insertion loss.

The ferrule material is ceramic (zirconia), which provides high durability and precision alignment.

The ferrule diameter is 1.25 mm / 2.5 mm, depending on the connector type.

The cable has a Uniboot OM3 cabled optical fiber, which has a nominal diameter core of 50/125 µm.

The jacket material is OFNR, which is flame retardant and environmentally friendly.

The cable can operate in a wide temperature range of -20°C +70°C, and it has high bandwidth and low attenuation.

This product is ideal for high-speed data transmission and communication.
