2Pcs 3D Printer 42 Stepper Motor Driver Expansion Board DRV8825 A4988 3D Printer For Sale

When you click on links to various merchants on this site and make a purchase, this can result in this site earning a commission. Affiliate programs and affiliations include, but are not limited to, the eBay Partner Network.

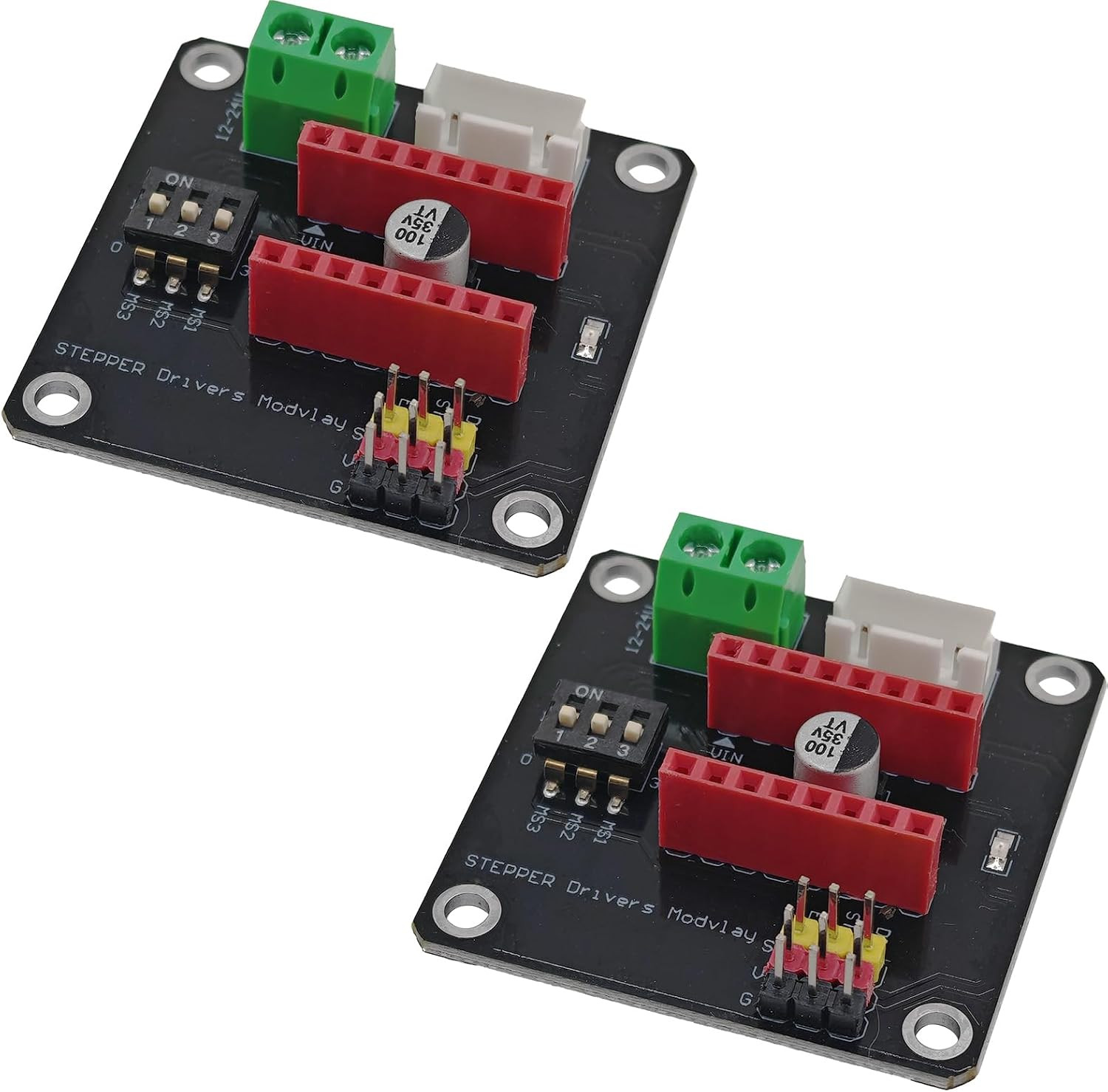

2Pcs 3D Printer 42 Stepper Motor Driver Expansion Board DRV8825 A4988 3D Printer

Price: US $13.99

2Pcs 3D Printer 42 Stepper Motor Driver Expansion Board DRV8825 A4988 3D Printer Control Shield ModuleDescriptionProduct description2Pcs 42 Stepper Motor Driver Expansion Board DRV8825/A4988 for 3D Printer Control Shield Module,3D Printer 42 Stepper Motor Driver Expansion Board,

Size: 42 x 42 x 15mm
Logic voltage: 5V
Input voltage: 12-30V

1. On-Board DIP Switch for Effortless Customization: The 42 stepper motor driver expansion board features an on-board DIP switch, letting you easily adjust drive segments.

2. Terminal Power Connector for Quick & Easy Setup: Equipped with a terminal power connector, this board makes connecting to your drive power supply fast and hassle-free.

3. Broad Compatibility:

12-30V & Popular Driver Modules:

Compatible with 12V–30V drive schemes, this expansion board also works seamlessly with A4988 and DRV8825 driver modules （note: driver modules not included）.

It adapts to various power setups and microcontroller platforms.

3D Printers 42 Stepper Motor Driver Expansion Board for DRV8825/A4988 - Stable Performance,3D Printer 42 Stepper Motor Driver Expansion Board DRV8825 A4988

The compatibility of this expansion board is mainly reflected in two aspects:

1. Compatible driver modules:

·A4988: Suitable for most 42 stepper motors.

·DRV8825: Supports higher subdivision and current, may have lower operating noise, but requires better heat dissipation.

·A stepper motor driver module compatible with other pin arrangements.

2. Compatible main control board:

·In theory, any 3D printer control board (such as RAMPS 1.4, MKS Gen L, SKR series, etc.) can be used as long as it has idle motor drive interfaces (STEP/DIR pins) that can be connected to the expansion board.

·It requires firmware support from the main control board (such as Marlin, Klipper) to correctly identify and control the newly added motor.

42 stepper motor driver expansion board

Precautions for use

1. Set the current correctly. Each driver module (A4988/DRV8825) plugged into the expansion board needs to use a small screwdriver to individually set its Vref value to match the rated current of the connected motor. The current setting is too small, and the motor force is insufficient; If the current is set too high, the motor will overheat severely.

2. Ensure sufficient heat dissipation:

·The A4988 and DRV8825 modules generate heat during operation, especially under high current and low fineness conditions.

·Heat sinks must be installed for each driver module! Without a heat sink, the driver module may enter a thermal protection state within a few minutes due to overheating, causing the motor to stop working.

3. Firmware configuration:

·After installing this expansion board, the firmware of the 3D printer (such as Marlin) must be modified.

Package Contents: 2Pcs 42 Stepper Motor Driver Expansion Board DRV8825/A4988 for 3D Printer Control Shield Module,
Logic voltage: 5V Input voltage: 12-30V
Compatible with standard stepper motor driver modules such as A4988 and DRV8825. These modules are plugged into the board and do not require soldering. Plug and play.
On-Board DIP Switch: Quick Microstepping Adjustment: Easily tweak microstepping settings via the on-board DIP switch—no complex setup needed.
Ideal for 42 Steppers, 3D Printers & DIY: Perfect for 42 stepper motors, 3D printers, and DIY projects. Supports A4988/DRV8825 (drivers not included).

Unit Count 2 Count Number of Packs 2 Number of Items 6 Included Components 1 Part Number T-DRV8825-A4988-2P Display Type LCD Color black Return 30 Days Free Return Shipping Free And Fast Shipping Handling Time Up to 3 Business Days (Usually same day)
