Description:

The wireless transceiver module can set up your wireless communication system. You can add it with your own MCU/ARM/PIC/AVR/STM32 system,

this module also come with power amplifier and SMA antenna, which make the wireless communication up to 800+ meters with No Wireless Transceiver Module:

PA Gain：20dB

LNA Gain：10dB

Range: 800+ meters line of sight

Frequence: 2.4GHz~2.5GHz

Multi-frequency: 125 frequency

Operating voltage: 3 ~ 3.6V Max（Recommended 3.3V）

Max Transmit Operating Current: 115mA

Max Receiving Operating Current:45mA

Support up to six channels of data reception

NRF24L01+ Breakout Adapter:

compatible with Arduino and for Raspberry Pi

Pin Quantity：8Pin

On-board ：AMS1117-3.3 chip.

Voltage Regulator Input Voltage (connected to VCC): 4.8V ~ 12V

Small power on SMD LED indicator

Note:

1.The module has 5V tolerant inputs, the power supply must be 3.3V, but the data and control inputs can be 5V(I/O can be 5V).

2.If you are the first time to do this job, pls refer to related wiring video on Youtube before connect lines. the module used with RC planes/cars, please note:

1. If only a single reception and a single transmission are used, then a code value is required.

2. Please pay attention to environmental interference during use.

Package Included:

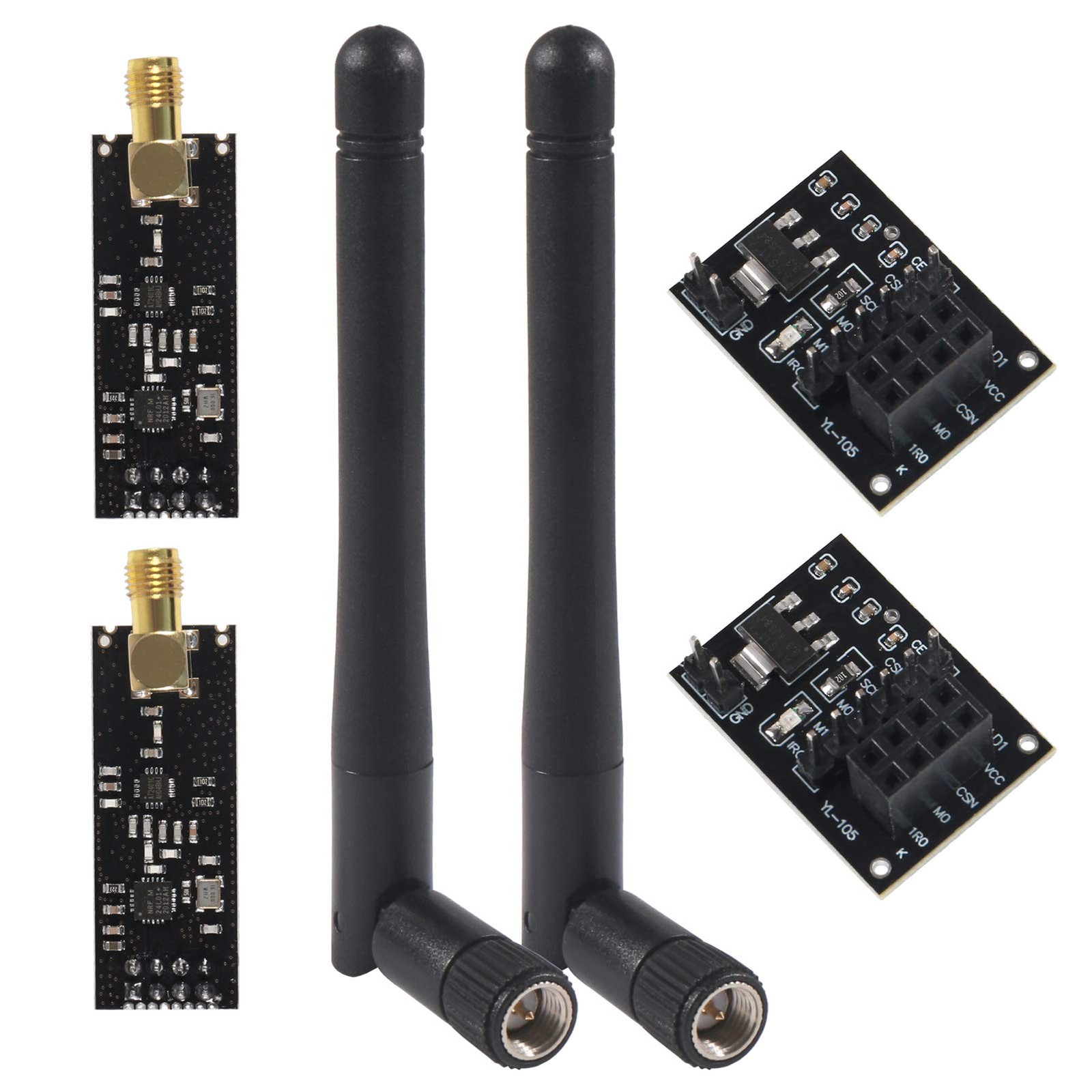

2 x NRF24L01+PA+LNA Wireless Transceiver Module

2 x SMA Antenna

2 x NRF24L01+ Breakout Wireless Transceiver Module is a 2.4GHz ISM band transceiver, compatible with Raspberry Pi. Auto-acknowledge and auto-retransmit abilities; Support up to six channels of data reception; the transceiver come with power amplifier and SMA antenna, which make the effective communication distance has been greatly expanded.
A host microcontroller can communicate and configure the nRF24L01+ over a 4-pin Serial Peripheral Interface (SPI). The configuration registers are accessible through the SPI connection. Configurable parameters include frequency channel (125 selectable channels), output power, and data rate (data rates: 250kbps, 1Mbps, and 2Mbps).
RF24L01+ Breakout Adapter: Small power on SMD LED indicator, On-board 3.3V voltage regulator, which accepts +5V power supply input and provides 3.3V for the attached "nRF24L01+" module.
Applications:It can be wildly used in wireless remote control such as RC planes/vehicles, wireless audio, wireless voice transmission such as VoIP, wireless networks, smart home,somatosensory devices, RFID, NFC etc.
Package Included:2 x NRF24L01+PA+LNA Wireless Transceiver Module+2 x SMA Antenna+2 x NRF24L01+ Breakout Adapter
