BRAND NEW IN BAG.

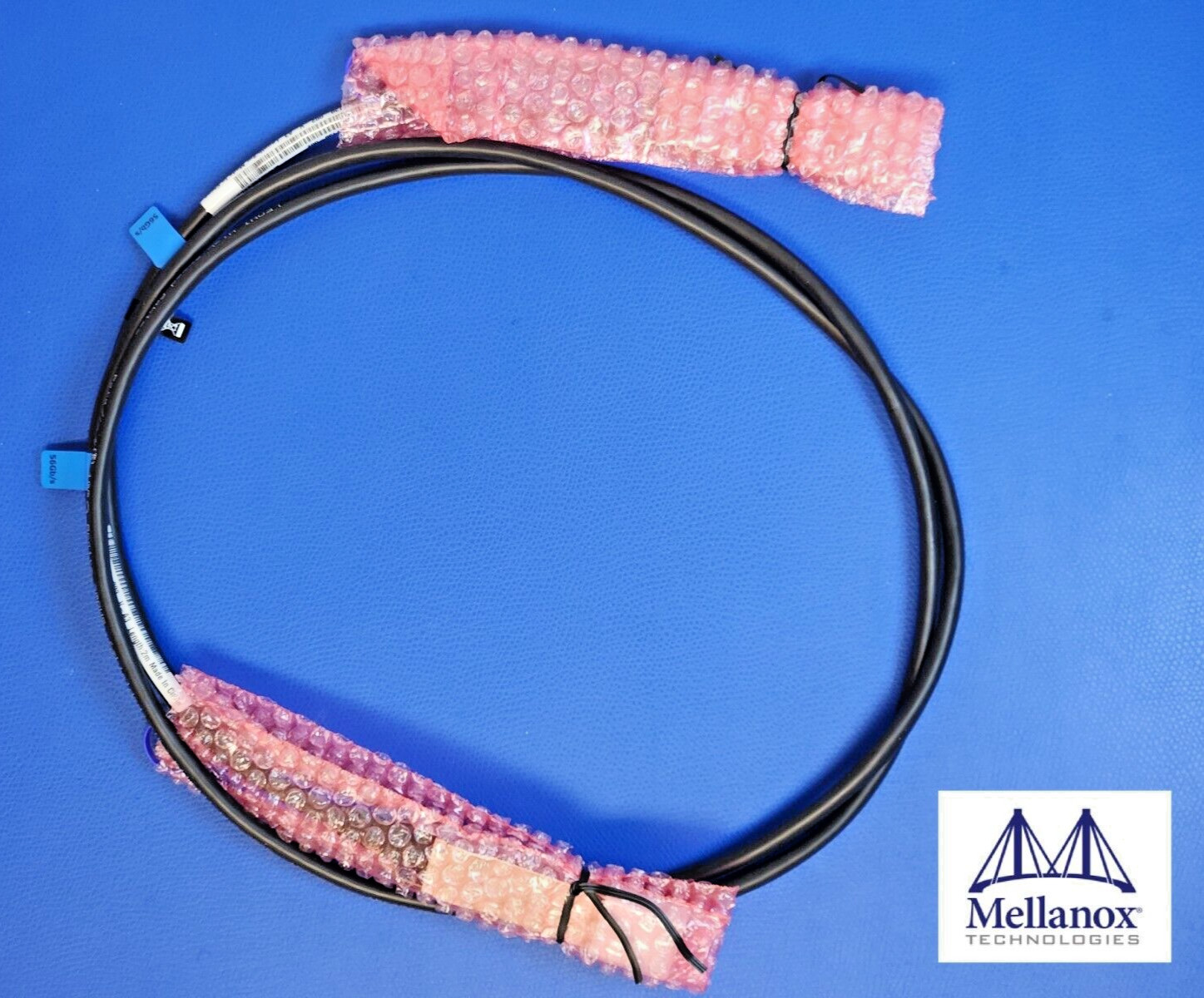

Mellanox MC2207130-00A 56G QSFP+ Direct Attach Copper Cable (0.5m, 30AWG, Passive)
This 56G QSFP+ DAC cable is a passive direct attach copper cable assembly for 56G InfiniBand or 40GbE Ethernet systems. It is compatible with Mellanox MC2207130-00A and provides a cost-effective alternative to the original 56G DAC cables. This 56G cable is suitable for very short distances and offers a highly cost-effective way to establish a 56 Gigabit link connectivity between devices using QSFP+ ports. It is suitable for 56Gb/s InfiniBand FDR interconnecting networking applications such as high-performance computing (HPC), enterprise networking including top-of-rack switching and network storage markets.
Features
• Functionally identical to Mellanox MC2207130-00A 56G passive copper cable
• Maximum aggregate data rate: 56Gb/s (4 x 14Gb/s)
• Hot-pluggable QSFP+ 38-PIN footprint
• Single 3.3V power supply
• Compliant with QSFP+ MSA SFF-8436
• Compliant with Infiniband QDR/DDR/FDR data rates
• Operating temperature range: 0 to 70°C
• RoHS Compliant and Lead-Free
Specification OEM Part NumberMC2207130-00AOptcore Part NumberQSFP-56G-DAC05M-MEL Form FactorQSFP+ DAC Cable Data Rate56 Gb/s Passive or actively equalizedPassive Supply Voltage3.3 V Cable Length0.5 meter (1.6ft) Cable impedance100 Ω CableTypeTwinax Wire Gauge30AWG Minimum cable bend radius35 mm Cable Jacket TypePVC (OFNR) ConnectorQSFP+ to QSFP+ Digital DiagnosticMonitoringN/A EnvironmentOperating: 0°C to 70°C
Storage: -40°C to 85°C Weight0.18 kg Application40G InfiniBand 4x FDR, 56 Gigabit Ethernet
SAS, Servers, Hubs, Switches, and Routers ComplianceInfiniBand SDR/DDR/QDR
SFF-8436, RoHS
