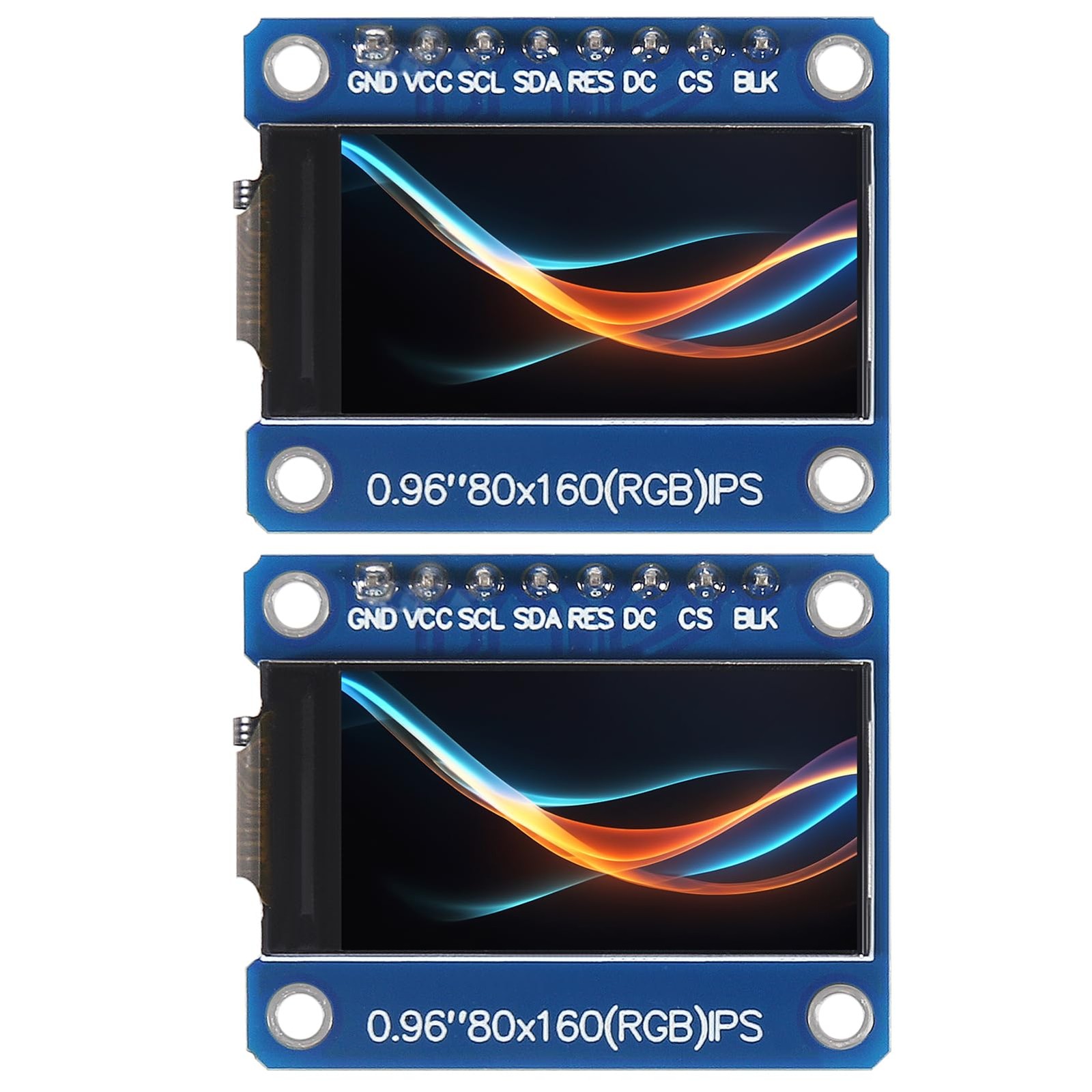

Trusted SellerStore response★★★★★ Top RatedFast dispatchSecure packaging★ responseVisit Store2pcs 0.96" HD IPS TFT LCD Display Module 80x160 RGB LCD Screen 3.3V ST7735 Drive SPI Interface 8pin Full Color for Arduino DIY
- ★Size: 0.96 inch; Control Chip: ST7735; Display Area: 10.8x21.696 (mm); Physical Size: 24)*30(mm)
- ★Material: Brand new IPS color screen, color is more vivid than ordinary TFT LCD.
- ★Resolution: 80 * 160 display direction can be adjusted, horizontal and vertical screen can be
- ★Interface Type: SPI; Number of Pins: 7PIN; Display Color: 65K Full Color; Operating Temperature: -20~70 degrees Celsius; Operating Voltage: 3.3V; Module Weight: 5g
- ★Pin Description: GND: Power Ground; VCC: Power Supply Positive 3.3~5V; SCL: SPI clock line; SDA: SPI data line; RES: OLED reset, OLED needs to do a reset after power on; DC: SPI data/command select pin; CS: SPI chip select signal; BLK: LCD backlight control, default can be suspended, low level off the backlight
Product Description
Material: Brand new IPS color screen, color is more vivid than ordinary TFT LCD.
Resolution: 80 * 160 display direction can be adjusted, horizontal and vertical screen can be
Control Chip: ST7735
Display Area: 10.8x21.696 (mm)
Physical Size: 24*30(mm)
Interface Type: SPI
Number of Pins: 7PIN
Display Color: 65K Full Color
Operating Temperature: -20~70 degrees Celsius
Operating Voltage: 3.3V
Module Weight: 5g
Pin Description:
GND: Power Ground
VCC: Power Supply Positive 3.3~5V
SCL: SPI clock line
SDA: SPI data line
RES: OLED reset, OLED needs to do a reset after power on.
DC: SPI data/command select pin
CS: SPI chip select signal
BLK: LCD backlight control, default can be suspended, low level off the backlight
- Brand: XIITIA
- Model Number: others
- Package Dimensions: 4.45 x 3.94 x 0.39 inches
- Item Weight: 0.528 ounces
- Manufacturer: XIITIA
